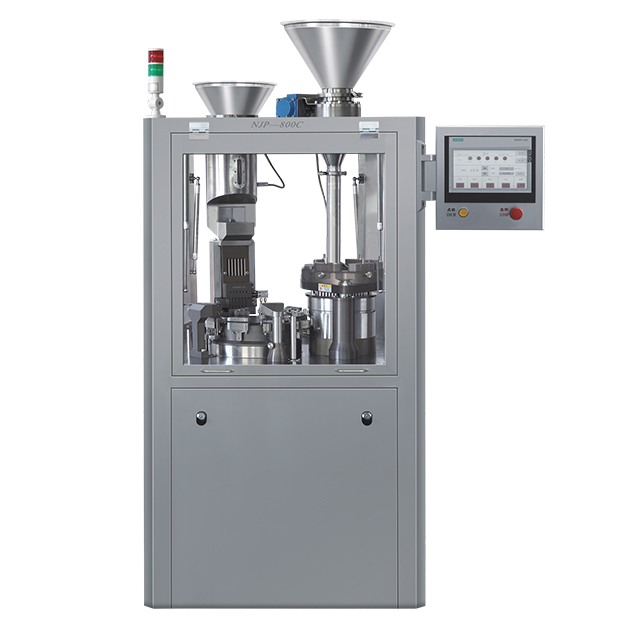

800 Pcs/Min 5Kw High Speed Automatic Capsule Filling Machine Gelatin Production Equipment

1.NJP800 is an equipment suitable for small and medium volume production.
2.Fully enclosed patented rotary table, with one-way movement of upper and lower modules and good sealing performance, solves the problems of mold dismantling, washing and assembly precision.
  • NJP-800C
  • Urban

Introduction

1.NJP800 is an equipment suitable for small and medium volume production.
2. Fully enclosed patented rotary table, with one-way movement of upper and lower modules and good sealing performance, solves the problems of mold dismantling, washing and assembly precision.
3. The equipment adopts imported precision divider, with smooth operation, high indexing accuracy, compact structure and low noise.
4. The electronic control system is controlled by PLC, and the main electrical components are made of internationally renowned brands, such as SIEMENS, OMRON, SCHNEIDER, etc, with safe and reliable performance.
5. Timing, quantitative and capacitive induction blanking functions are optional.
6. Adopt orifice and disc metering device, three- dimensional adjustment, even gap, reduce powder leakage, and equipped with vacuum automatic cleaning function.
7. With the function of one machine and two feeding, the unique design principle can complete the mixing and fling of different drugs, such as powder, particles, pellets and tablets

Specifications

Model    NJP-800C
Productivity

   48000 capsules/h

Applicable capsules

00#, 0#, 1#, 2#, 3# ,4#, 5# machine-made standard capsules

Filled medicine type

Not adhesive or wet powders and small granules

Total power    5Kw
Number of holes    6
Vacuum

40m3/h -0.04-0.08Mpa

Aspiration

24.5Kpa 210m3/h

Compressed air
    3m3/h 0.3-0.4Mpa
Working noise
    <75DB(A)
Load precision
    ±3%
Dimensions(mm)

1100X900X2050   (LXWXH)

Weight

900KG

Application

capsule filling machine

capsule filling machine

capsule filling machine

The machine is suitable for liquid, medicine, beverage, health product, food, perfume, pesticide, cosmetics, electronic cigarette oil, etc

Machine Detail

capsule filling machine

New Closed Turntable

capsule filling machine

Rotary type capsule-out

capsule filling machine

Internal Structure of Turntable

capsule filling machine

New Closed Turntable

Our Service

  • Through years of experience, Urban provides several services which cover almost all requirements of clients. These services include production, design, inspection, packaging, shipment, product recommendation, after-sales service,  and multiple client solutions.


  • We can supply mаsk raw materials for you if you can't buy materials from in your local market.


  • We have a good relationship with more than four international shipping companies who have rich experiences in handling different kinds of shipping ways and also the customs declarations and clearances. They all have good shipping services to save you time and costs.


  • We have a professional international technical team. To provide you with after-sales service and guidance.

After-sale Service

We will always be responsible for the machine you purchased. Nearly 10 professional after-sales personnel provide global technical services. In this way, we also provide professional services, such as guide installation services, equipment commissioning and operation services, maintenance services and equipment parts replacement. Ensure the quality of your products, while eliminating your worries.

  1. 1. The whole machine is guaranteed for 1 years.

  2. 2. Provide professional machine operation and maintenance guidelines.

  3. 4. Provide 24-hour online professional technical services .
