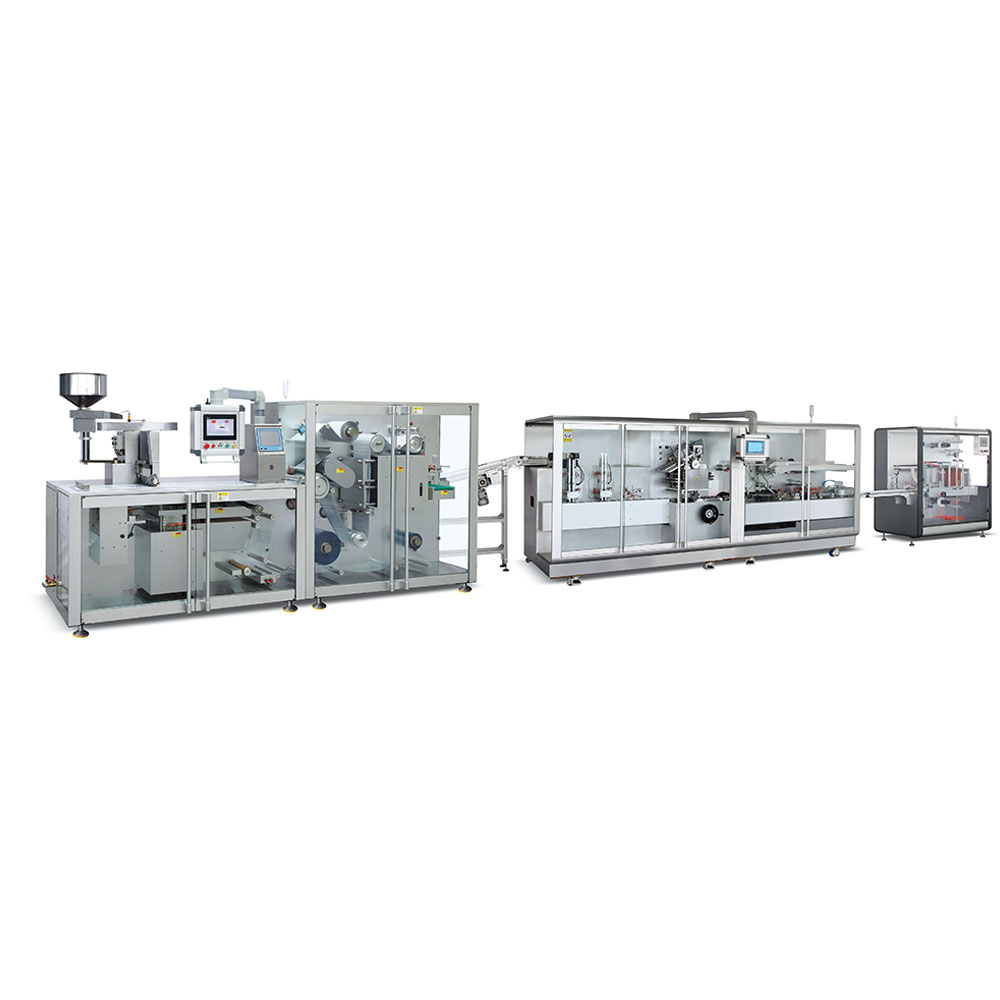

| Automatic blister packing/cartoning/film bunding production line intergrates the production of blister forming, filling, detection, sealing, cutting, blister cartoning, rejection, carton film bunding for pharmaceutical, food, medical apparatus, instruments, health care products, electronic components, etc. | |
Specifications
| Model | JDZ-450 | |
| Encasing speed | 450 Cartons/min | |
| Carton | Quality requirement | 350g/m3 Base on carton size |
| Dimension range（L*W*H） | (70-180)mmX(35-80)mmX(14-50)mm | |
| Leaflet | Quality requirements | 60g/m3 |
| Unfolded leaflet specification | (80-250)mmX(90-170)mm | |
| Compressed air | Working pressure | ≥0.6Mpa |
| Air Compresse | 220-240L/min | |
| Power supply | 380V 50Hz | |
| Motor Power | 4.5KW | |
| Machine Dimensions(LXWXH) | 4800mmX1800mmX2000 mm | |
| Machine Weight | 5500kg | |
| Model | UBM-DPH-260S |
| Max. Punch Frequency | 150 Stoke/min (or 8.8m) |
| Max. Forming depth | 14mm |
| Max. Forming area | 180×250mm(L×W) |
| Standard PVC hard sheet | (0.25-0.35)×260mm |
| Standard PVC Aluminum foil | 0.02×260mm |
| PVC roll diameter (OD) | ＜φ380mm |
| PTP roll diameter (OD) | ＜φ260mm |
| Overall dimension (L×W×H) | 3550×1100×1950mm |
| Weight | 2200kg |
| Total power | 24kw 380V/50Hz |
| Model | UBM-K760 |
| Package size range | (80-260)×(20-200)×(40-120)mm (L×W×H) |
| Wrapper material | PE Film |
| Bundle film width | 35-60mm |
| Bundle film thickness | 50-80um |
| Speed boxes/min | 40 packs/min |
| Power supply | 220V/50Hz |
| Power | 800W |
| Air Pressure | 0.6-0.8Mpa |
| Air consumption | 0.3m³/min |
| Machine Dimensions | 1780×800×1750mm (L×W×H) |
| Conveyor size | 1120×200×850mm |
| Weight | 600kg |
Our Service
Through years of experience, Urban provides several services which cover almost all requirements of clients. These services include production, design, inspection, packaging, shipment, product recommendation, after-sales service, and multiple client solutions.
We can supply mаsk raw materials for you if you can't buy materials from in your local market.
We have a good relationship with more than four international shipping companies who have rich experiences in handling different kinds of shipping ways and also the customs declarations and clearances. They all have good shipping services to save you time and costs.
We have a professional international technical team. To provide you with after-sales service and guidance.
After-sale Service
We will always be responsible for the machine you purchased. Nearly 10 professional after-sales personnel provide global technical services. In this way, we also provide professional services, such as guide installation services, equipment commissioning and operation services, maintenance services and equipment parts replacement. Ensure the quality of your products, while eliminating your worries.
1. The whole machine is guaranteed for 1 years.
2. Provide professional machine operation and maintenance guidelines.
4. Provide 24-hour online professional technical services .
