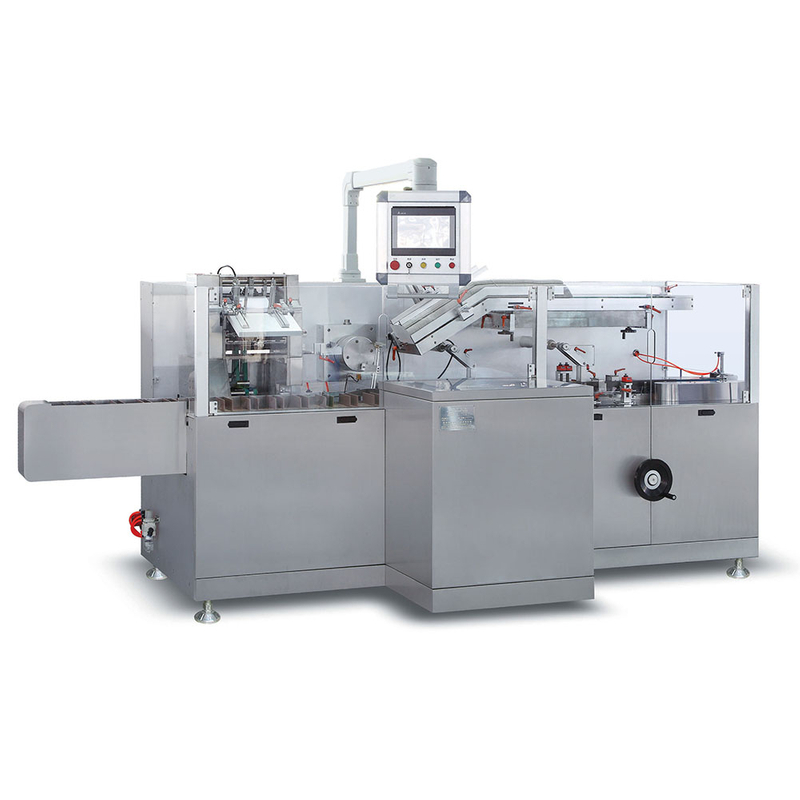

JDZ-180 Model fully automatic continuous cartoning machine is a new model which developed by our company on the basis of both home and abroad many advanced technologies, and it is manufactured strictly according to the requirements of pharmaceutical industry “GMP”. The characteristics with stable performance, simple structure, easy to operate; Leaflet automatic fold and transmit, carton suck and forming, multi position servo tracking speed pushing product structure related technology to achieve advanced industry standards; simple design style and multi position servo tracking speed pushing product structure makes operation and maintenance more convenient; Double station planetary gear rotation type outward opening carton with pre-forming device to ensure that carton open and form completely. This machine is automatic continuous cartoning machine with high performance products incorporates pneumatic-photo-electro-mechanic. It’s suitable for inserting blister, bottles, tube, soft ALU/ALU strips, sachet and other product into carton, also can link to matching other machine to form production line. | |
Specifications
Model | JDZ-180 | |
Encasing speed | 180 Cartons/min | |
Carton
| Quality requirement | 250-350g/㎡ Base on carton size |
Dimension range (L x W x H) | (70-165)mm x (35-85)mm x (14-50)mm | |
Leaflet | Quality requirement | 60-70g/㎡ |
Unfolded leaflet specification | (80-250)mm x (90-170)mm | |
Fold range
| [1-4] (Fold)
| |
Compressed air | Working pressure | ≥0.6Mpa |
Air consumption | 120-180L/min | |
Power supply | 380V 50Hz | |
Motor power | 4.5kw | |
Machine dimension (L x W x H) | 3650mm x 1560mm x 2040mm | |
Machine weight | 1750kg | |
Our Service
Through years of experience, Urban provides several services which cover almost all requirements of clients. These services include production, design, inspection, packaging, shipment, product recommendation, after-sales service, and multiple client solutions.
We can supply mаsk raw materials for you if you can't buy materials from in your local market.
We have a good relationship with more than four international shipping companies who have rich experiences in handling different kinds of shipping ways and also the customs declarations and clearances. They all have good shipping services to save you time and costs.
We have a professional international technical team. To provide you with after-sales service and guidance.
After-sale Service
We will always be responsible for the machine you purchased. Nearly 10 professional after-sales personnel provide global technical services. In this way, we also provide professional services, such as guide installation services, equipment commissioning and operation services, maintenance services and equipment parts replacement. Ensure the quality of your products, while eliminating your worries.
1. The whole machine is guaranteed for 1 years.
2. Provide professional machine operation and maintenance guidelines.
4. Provide 24-hour online professional technical services .
