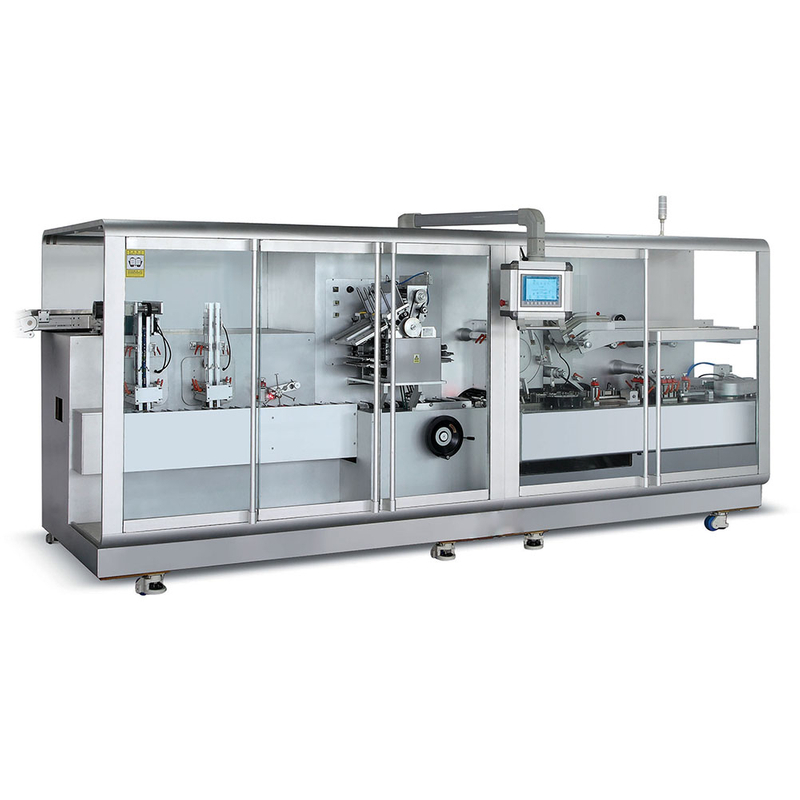

Automatic High Speed Continuous Cartoning Machine

Is suitable for ALU-PVc blister, tube, pill tray, soft ALU strip, pouch, and similar product.
Availability:
  • JDZ-450
  • Urban

Introduction

JDZ-450 Model automatic high speed cartoning machine is new model with innovation design base on bringing in foreign advanced technology, also strictly according to pharmaceutical industry “GMP “standard to manufacture. With high efficiency, high performance production capacity. Leaflet folding and conveying, carton opening and forming, posterior pushing structure and related technology all reach Europe and USA standards; Appearance simple design and posterior continuous pushing structure make operation and maintenance more convenient; Four equal double station planetary gear rotation type outward opening carton and under twice pre-forming device to ensure that carton open and form completely

This model is automatic high speed continuous cartoning machine with high performance product incorporates pneumatic-photo-electro-mechanic. It suitable for automatic inserting ALU-PVc blister, bottle, soft tube, soft ALU/ALU strips and sachet into carton, also can link to matching machine to form production line.

Automatic High Speed Continuous Cartoning Machine

Specifications


Model

JDZ-450

Encasing speed

450 Cartons/min

Carton

Quality requirement

350g/㎡ Base on carton size

Dimension range (L x W x H)

(70-180)mm x (35-80)mm x (14-50)mm

Leaflet

Quality requirement

60g/㎡

Unfolded leaflet specification

(80-250)mm x (90-170)mm

Fold range

[1-4] (Fold)

Compressed air

Working pressure

≥0.6Mpa


Air consumption

220-240L/min

Power supply

380V 50Hz

Motor power

4.5kw

Machine dimension (L x W x H)

4800mm x 1800mm x 2000mm

Machine weight

5500kg


Our Service

  • Through years of experience, Urban provides several services which cover almost all requirements of clients. These services include production, design, inspection, packaging, shipment, product recommendation, after-sales service,  and multiple client solutions.


  • We can supply mаsk raw materials for you if you can't buy materials from in your local market.


  • We have a good relationship with more than four international shipping companies who have rich experiences in handling different kinds of shipping ways and also the customs declarations and clearances. They all have good shipping services to save you time and costs.


  • We have a professional international technical team. To provide you with after-sales service and guidance.

After-sale Service

We will always be responsible for the machine you purchased. Nearly 10 professional after-sales personnel provide global technical services. In this way, we also provide professional services, such as guide installation services, equipment commissioning and operation services, maintenance services and equipment parts replacement. Ensure the quality of your products, while eliminating your worries.

  1. 1. The whole machine is guaranteed for 1 years.

  2. 2. Provide professional machine operation and maintenance guidelines.

  3. 4. Provide 24-hour online professional technical services .




About Us

Urban was founded in 2003, is a professional engaged in the research, development, sale and service of melt-blown cloth production machine, protective clothing production machine, liquid capsule filling machine and other medical production equipment and pharmaceutical machinery.


Company has won a member of the Chinese pharmaceutical equipment industry small and mid sized enterprise of Zhejiang province, wenzhou science and technology innovation oriented enterprises, through the 1509001 quality management system certification, eu CE mark certification, product has self-supported import and export right, the company existing authorized more than 20 patents, among them 2 product invention patents, also has many sets of high-end machining center equipment and testing equipment, provide quality assurance for the quality of products.


capsusal (8)             capsusal (7)

Certification

Certificate medical
Certificate medical
Certificate medical

Workshop

  • Name of Base: URBAN

  • Time of establishment: 2003

  • Base address: No.371 The First Development Road, Economy Development Zone, Ruian City, Zhejiang Province, China

  • Floor area: 3000 m2

  • Number of employees: 120

  • Products: NJP full automatic capsule filling machine, NJYF hard capsule liquid filling machine,sealing machine connecting line,semi-automatic capsule filling machine,capsule polishing machine, etc.

  • Certification obtained: ISO CE FDA

  • Capacity: 5500 capsules/min

medical workshop


With first-class product quality and perfect after- sales service, our products are sold well in provincesand cities, autonomous regions, Taiwan, Hong Kong and other areas, and exported to North America, SouthAmerica, Europe, Australia, Africa, southeast Asia, the Middle East and more than 60 countries around theworld.
