UBM-FW-300C+JDZ-260
Urban

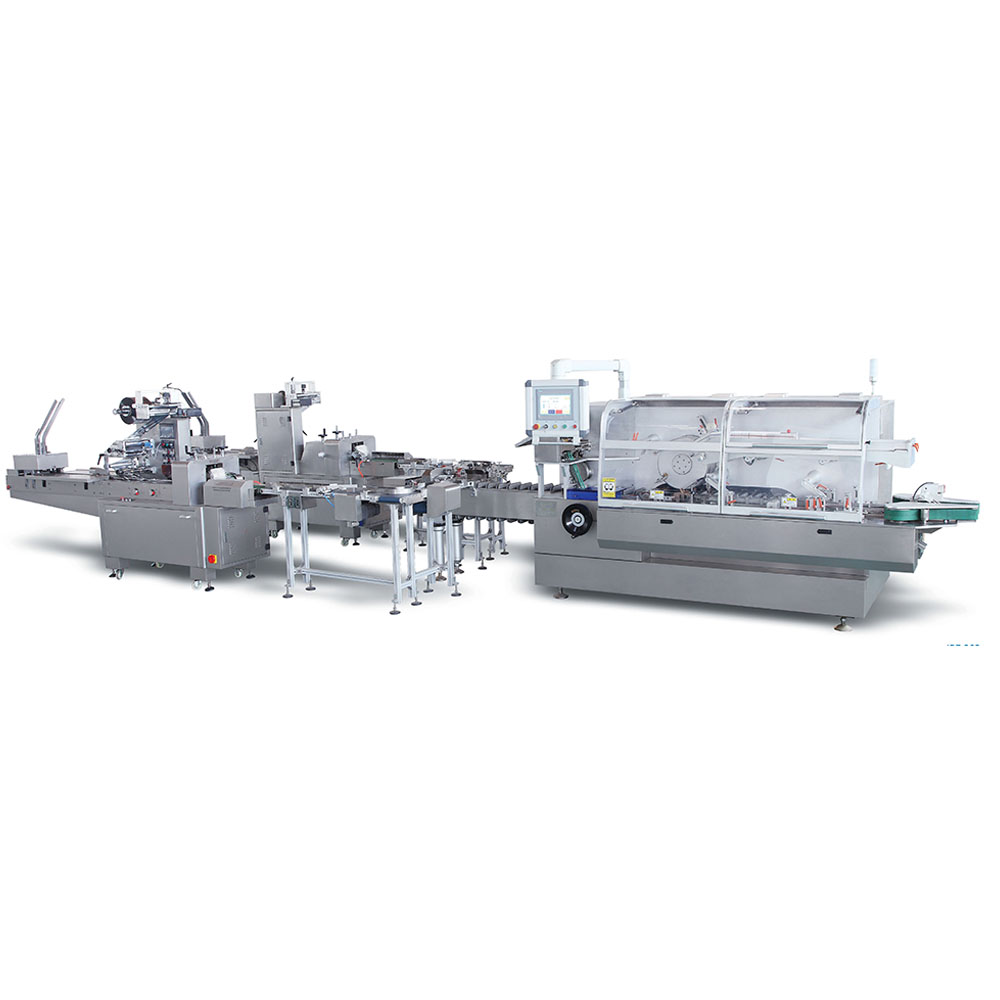

This packing production line is suitable for pillow package bag inserting to carton which automaticaly link to cartoning machine. Online can automatic finish product feeding (such as blister), detecting, aluminum film packing, rejecting for lack of product, pillow package bag automatic middle transferring and feeding, leaflet folding ,carton forming, product inserting ,batch number printing, carton flap sealing, waste product rejecting, finished product output, product counting and so on. |
Specifications
Model | UBM-FW-300C |
Production Capacity | 30-120Bags/min |
Packing Size | L60-190mm,W30-110mm,H5-40mm |
Rated Frequency | 50Hz |
Rated Voltage | AC220V |
Total Power | 2.4kw |
Weight | 800kg |
Overall Dimension | (L x W x H) 3780 x 640 x 1560mm |
Model | JDZ-260 | |
Encasing speed | 260 (Cartons/mm) | |
Carton
| Quality requirement | 250-350g/m2 Base on carton size |
Dimension range (L x W x H) | (70-180)mm x (35-80)mm x (14-50)mm | |
Leaflet | Quality requirement | 60-70g/㎡ |
Unfolded leaflet specification | (80-250)mm x (90-170)mm | |
Fold range
| [1-4] (Fold) | |
Compressed air | Working pressure | ≥0.6Mpa |
Air consumption | 200-240L/min | |
Power supply | 380V 50Hz | |
Motor power | 5kw | |
Machine dimension (L x W x H) | 4800mm x 1600mm x 1860mm | |
Machine weight | 3000kg |
Our Service
Through years of experience, Urban provides several services which cover almost all requirements of clients. These services include production, design, inspection, packaging, shipment, product recommendation, after-sales service, and multiple client solutions.
We can supply mаsk raw materials for you if you can't buy materials from in your local market.
We have a good relationship with more than four international shipping companies who have rich experiences in handling different kinds of shipping ways and also the customs declarations and clearances. They all have good shipping services to save you time and costs.
We have a professional international technical team. To provide you with after-sales service and guidance.
After-sale Service
We will always be responsible for the machine you purchased. Nearly 10 professional after-sales personnel provide global technical services. In this way, we also provide professional services, such as guide installation services, equipment commissioning and operation services, maintenance services and equipment parts replacement. Ensure the quality of your products, while eliminating your worries.
1. The whole machine is guaranteed for 1 years.
2. Provide professional machine operation and maintenance guidelines.
4. Provide 24-hour online professional technical services .
