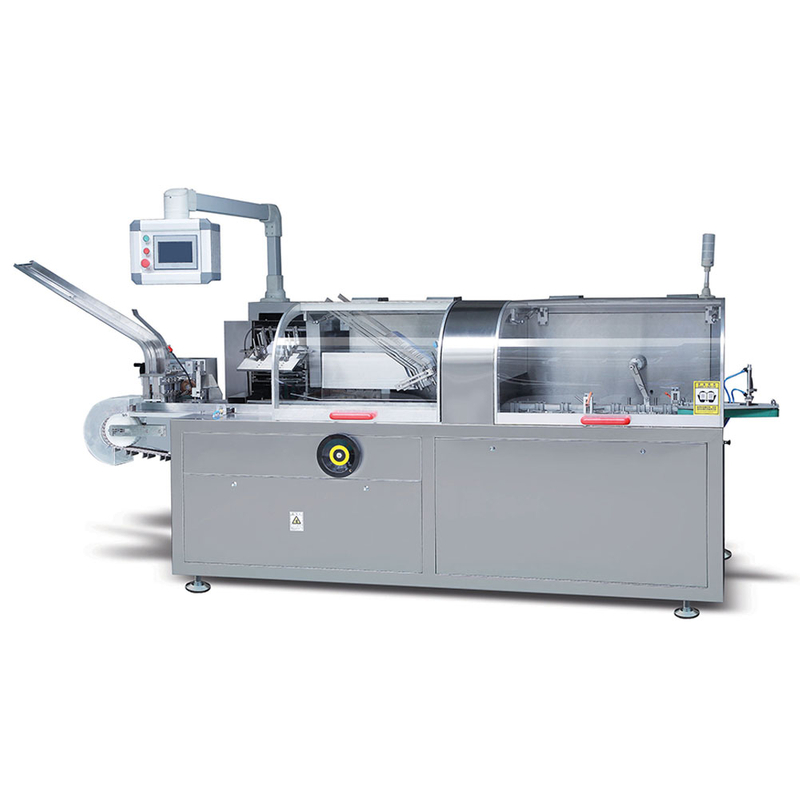

Automatic Horizontal Cartoning Machine

Is suitable for ALU-Pvc blister, ALU-ALU blister and similar product.
Availability:
  • JDZ-120(Horizontal)
  • Urban

Introduction

This equipment is new model developing base on integrated domestic and foreign vanguard technology. It is high technology product incorporates pneumatic-photo-electro-mechanic which improve by a large on performance of equipment and working efficiency, realize encasing fast, keep running steady and reliable when fast running.

This machine is suitable for blister package product, adjust automatic feeding structure conveniently, setup quantity of blisters on touch screen randomly. On line product feeding and detecting, leaflet fold(1-4folds) and feeding, leaflet detecting, canton opening and forming, products and leaflet pushing into carton, printing batch number, sealing carton with tuck-in or hot melt glue device. Automatically reject lacking of leaflet or product and finished product out.


Features:

• International famous brand of electrical component such as PLC touch screen, frequency inverters, etc.

• Adopt human-machine operation system.

• Automatically stop when machine is overload.

• Automatically reject lacking of package product and leaflet.

• Automatically display trouble, Alarm and count finished products.

• Stable performance,operation is easy.

Automatic Continuous Cartoning Machine

Specifications


Model

JDZ-120 (Horizontal)

Encasing speed

30-120 Cartons/min

Carton

Quality requirement

250-350g/㎡ Base on carton size

Dimension range (L x W x H)

(70-180)mm x (35-85)mm x (14-50)mm

Leaflet

Quality requirement

60-70g/㎡

Unfolded leaflet specification

(80-250)mm x (90-170)mm

Fold range

[1-4] (Fold)

Compressed air

Working pressure

≥0.6Mpa


Air consumption

120-160L/min

Power supply

220V 50Hz

Motor power

0.75kw

Machine dimension (L x W x H)

3100mm x 1100mm x 1550mm

Machine weight

1400kg

Our Service

  • Through years of experience, Urban provides several services which cover almost all requirements of clients. These services include production, design, inspection, packaging, shipment, product recommendation, after-sales service,  and multiple client solutions.


  • We can supply mаsk raw materials for you if you can't buy materials from in your local market.


  • We have a good relationship with more than four international shipping companies who have rich experiences in handling different kinds of shipping ways and also the customs declarations and clearances. They all have good shipping services to save you time and costs.


  • We have a professional international technical team. To provide you with after-sales service and guidance.

After-sale Service

We will always be responsible for the machine you purchased. Nearly 10 professional after-sales personnel provide global technical services. In this way, we also provide professional services, such as guide installation services, equipment commissioning and operation services, maintenance services and equipment parts replacement. Ensure the quality of your products, while eliminating your worries.

  1. 1. The whole machine is guaranteed for 1 years.

  2. 2. Provide professional machine operation and maintenance guidelines.

  3. 4. Provide 24-hour online professional technical services .




About Us

Urban was founded in 2003, is a professional engaged in the research, development, sale and service of melt-blown cloth production machine, protective clothing production machine, liquid capsule filling machine and other medical production equipment and pharmaceutical machinery.


Company has won a member of the Chinese pharmaceutical equipment industry small and mid sized enterprise of Zhejiang province, wenzhou science and technology innovation oriented enterprises, through the 1509001 quality management system certification, eu CE mark certification, product has self-supported import and export right, the company existing authorized more than 20 patents, among them 2 product invention patents, also has many sets of high-end machining center equipment and testing equipment, provide quality assurance for the quality of products.


capsusal (8)             capsusal (7)

Certification

Certificate medical
Certificate medical
Certificate medical

Workshop

  • Name of Base: URBAN

  • Time of establishment: 2003

  • Base address: No.371 The First Development Road, Economy Development Zone, Ruian City, Zhejiang Province, China

  • Floor area: 3000 m2

  • Number of employees: 120

  • Products: NJP full automatic capsule filling machine, NJYF hard capsule liquid filling machine,sealing machine connecting line,semi-automatic capsule filling machine,capsule polishing machine, etc.

  • Certification obtained: ISO CE FDA

  • Capacity: 5500 capsules/min

medical workshop


With first-class product quality and perfect after- sales service, our products are sold well in provincesand cities, autonomous regions, Taiwan, Hong Kong and other areas, and exported to North America, SouthAmerica, Europe, Australia, Africa, southeast Asia, the Middle East and more than 60 countries around theworld.
