JDZ-450+UBM-DPH-260S+UBM-K760
Urban

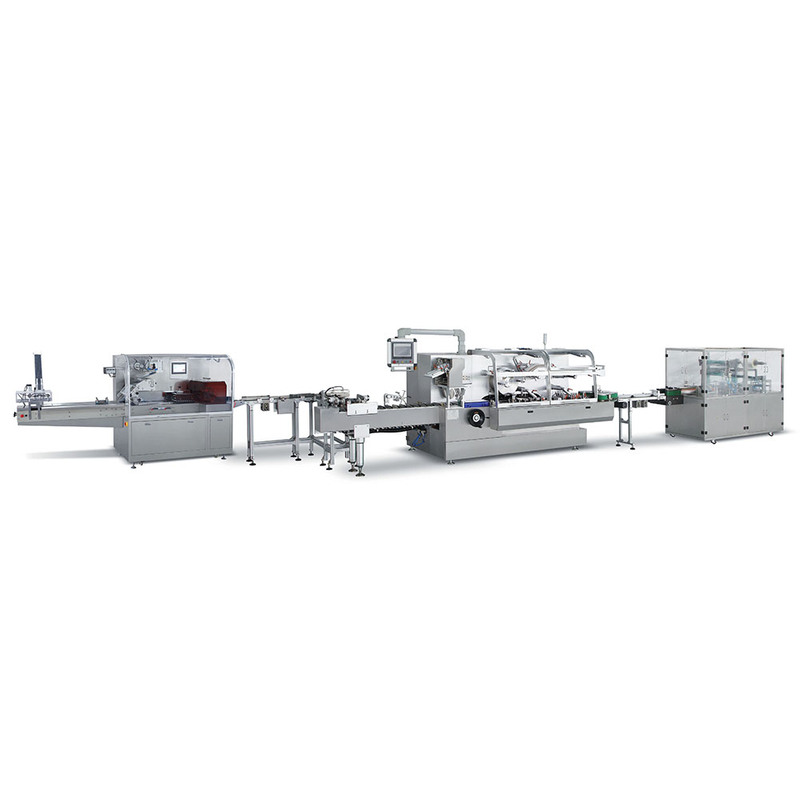

| The production line is suitable for pillow type bag full automatic pillow packing-cartoning-Overwrapping linkage production line. All kinds of capsules, tablets, sugar coated tablets, pills and special-shaped tablets, chocolate bean, chewing gum and other small food into blister then pillow packing, cartoning, overwrapping. | |
Specifications
Model | JDZ-260 | |
Carton | Quality requirement | 260(Cartons/min) |
Dimension range (L×W×H) | 250-350g/m³ Base on carton size | |
Leaflet | Quality requirement | 60-70g/㎡ |
Unfolded leaflet specification | (80-250)mm×(90-170)mm | |
Fold range | 1-4 Fold | |
Compressed air | Working pressure | ≥0.6Mpa |
Air consumption | 200-240L/min | |
Power supply | 380V 50Hz | |
Motor power | 5kw | |
Machine dimension (L×W×H) | 4800mm×1600mm×1860mm | |
Machine weight | 3000kg | |
Model | UBM-RFW-380 |
Film Width | Max.380mm |
Product Length | 80-200mm |
Product Width | 30-120mm |
Product height | 5-55mm |
Film roller diameter | Max.320mm |
Production capacity | 30-150 |
Power supply | AV220/50 |
Total power | 3.5KW |
Machine dimension | (L)3950×(W)860×(H)1480 |
Machine weight | 1160kg |
Air pressure | ≥0.2Mpa |
Model | UBM-MOC-300 |
Production speed | 40-130bags/min |
Bag size | (L)80-160mm (W)40-80mm (H)1-60mm |
Expand the width of packaging film | 80-400mm |
Packaging materials | Aluminum film, Aluminized film, Composite film, etc. |
Packaging material thickness | 3-7 |
Rated frequency | 50Hz |
Air Compressor | ＞0.15m³/min |
Rated voltage | 220V |
Total power | 3.5kw |
Weight | 1100kg |
Dimensions | 3700×970×1700mm (L×W×H) |
Our Service
Through years of experience, Urban provides several services which cover almost all requirements of clients. These services include production, design, inspection, packaging, shipment, product recommendation, after-sales service, and multiple client solutions.
We can supply mаsk raw materials for you if you can't buy materials from in your local market.
We have a good relationship with more than four international shipping companies who have rich experiences in handling different kinds of shipping ways and also the customs declarations and clearances. They all have good shipping services to save you time and costs.
We have a professional international technical team. To provide you with after-sales service and guidance.
After-sale Service
We will always be responsible for the machine you purchased. Nearly 10 professional after-sales personnel provide global technical services. In this way, we also provide professional services, such as guide installation services, equipment commissioning and operation services, maintenance services and equipment parts replacement. Ensure the quality of your products, while eliminating your worries.
1. The whole machine is guaranteed for 1 years.
2. Provide professional machine operation and maintenance guidelines.
4. Provide 24-hour online professional technical services .
