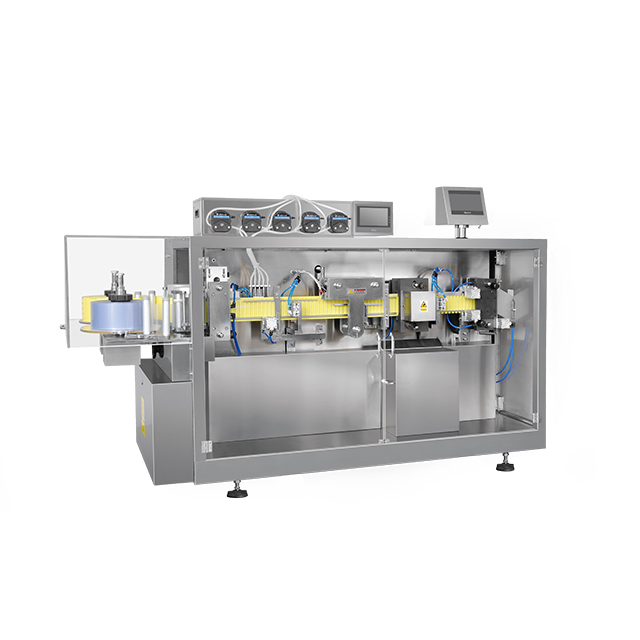

GGS-118(P5) 5 Head Plastic Ampoule Filling And Sealing Machine | Liquid Filling And Sealing Machine,Urban

Application
The machine is suitable for liquid, medicine, beverage, health product, food, perfume, pesticide, cosmetics, electronic cigarette oil, dairy product, fruit pulp, oil and etc.
  • GGS118(P5)
  • Urban

Introduction

1. It adopts PLC control and stepless frequency conversion speed regulation.

2. The working processes such as unwinding, plastic forming, filling, batch number printing, indentation, punching and cutting are completed automatically by the program.

3. It adopts human-machine interface device, which has simple operation.

4. The filling has no dripping, bubbling, and overflowing.

5. The parts contacting with medicine all adopt high quality stainless steel material, which meets with GMP standard.

6. The main pneumatic and electrical components adopt imported brand.

7. It adopts self-control filling system of electronic peristaltic pump and mechanical filling, which have accurate metering with small error.


GGS118P5

Specifications



Max. forming depth

12mm

Punch frequency

6600 pcs/hour

Packing material

PVC/PE,PET/PE(0.2-0.4)×140mm

Filling volume

1-50ml

Total power supply power

7KW

Voltage

220-380V/50Hz

Machine weight

900Kg

Overall dimension (L*W*H)

2300×850×1400(mm)



Sample

IMG_4169



Our Service

  • Through years of experience, Urban provides several services which cover almost all requirements of clients. These services include production, design, inspection, packaging, shipment, product recommendation, after-sales service,  and multiple client solutions.


  • We can supply mаsk raw materials for you if you can't buy materials from in your local market.


  • We have a good relationship with more than four international shipping companies who have rich experiences in handling different kinds of shipping ways and also the customs declarations and clearances. They all have good shipping services to save you time and costs.


  • We have a professional international technical team. To provide you with after-sales service and guidance.

After-sale Service

We will always be responsible for the machine you purchased. Nearly 10 professional after-sales personnel provide global technical services. In this way, we also provide professional services, such as guide installation services, equipment commissioning and operation services, maintenance services and equipment parts replacement. Ensure the quality of your products, while eliminating your worries.

  1. 1. The whole machine is guaranteed for 1 years.

  2. 2. Provide professional machine operation and maintenance guidelines.

  3. 4. Provide 24-hour online professional technical services .
