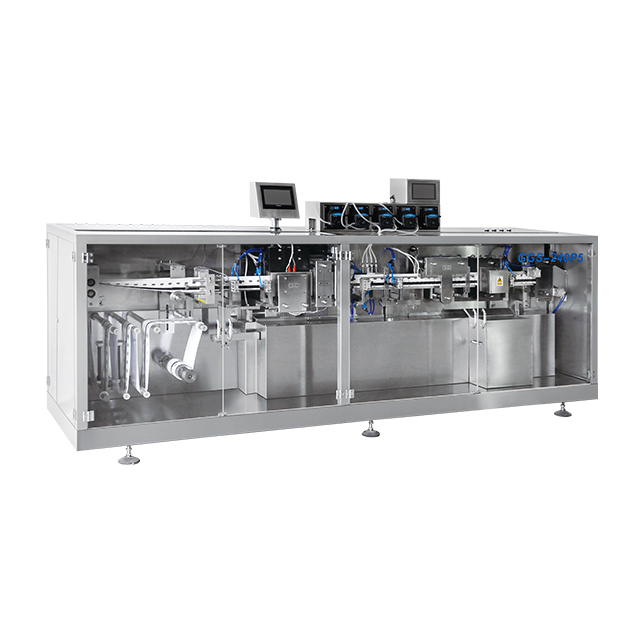

GGS-240(P5) High Quality Plastic Ampoule Filling And Sealing Machine | Liquid Filling And Sealing Machine,Urban

Application
The machine is suitable for liquid, medicine, beverage, health product, food, perfume, pesticide, cosmetics, electronic cigarette oil, dairy product, fruit pulp, oil and etc.
  • GGS240(P5)
  • Urban

Introduction

1. PLC control, frequency conversion regulates the speed.

2. Finish the whole process automatically, including 7 steps in total as putting packing material, forming, filling, printing lot number, punching, creasing and cutting apart.

3. Human-machine interface, operate easily and clearly.

4. No leaking, bubbles or overflowing in filling process.

5. All the related parts connecting with liquid adopt high quality of stainless steel, in accordance with GMP standard.

6. Main pneumatic components and electric appliances are imported.

7. Two kinds of filling system: automatic filling or electric peristaltic pump and mechanical filling, precise calculation with slight error.




GGS240P5

Specifications



Max Forming Depth

12mm

Punch Times

0-25punch/min

Capacity

66000pcs/hour

Filling Nozzles

5 head filling

Packing Material Packaging

PVC/PE  PET/PE(0.2-0.4)×240mm

Capacity

1-50ml

Air Consumption

0.6-0.8Mpa

Power

7KW

Voltage

220V 50/60hz  one phase

Weight

1200Kg

Outer Size L×W×H(mm)

3200×850×1500 (mm)



Sample

IMG_4169
