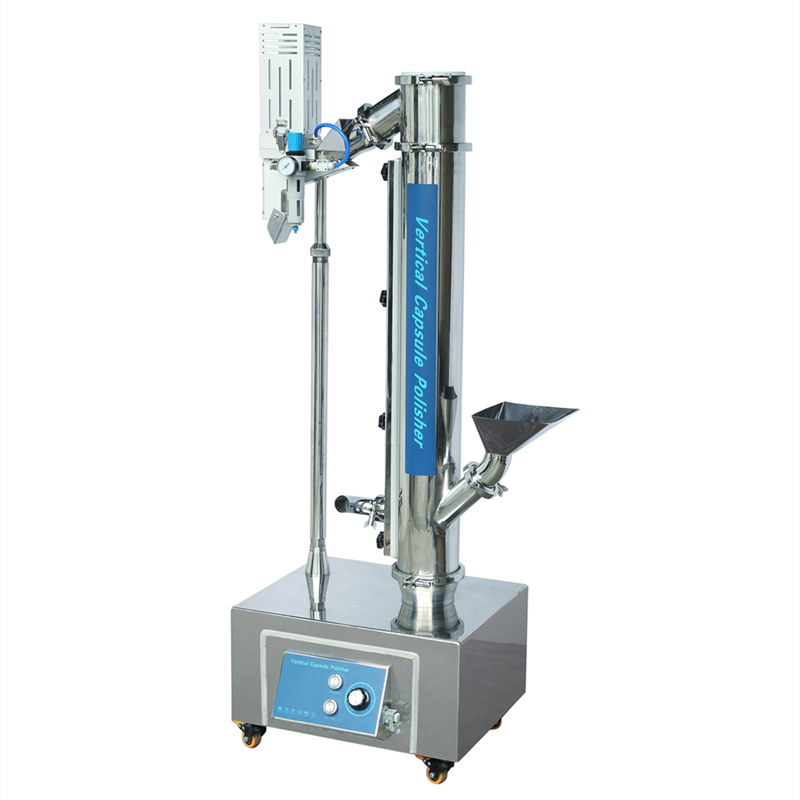

LFP-150A
Urban
Designed with up-to-date concepts and adopting several advanced technologies, the machine is equipped with following characteristics: 1.Double functions of capsule polishing and elevating to leave high flexibility for follow-up equipment line; 2.360° circle adjustment for inlet and outlet to make production more convenient and save factory room; 3.Automatically sort less dosage, empty, fractured and cap-body separated capsule; 4.Fast-joint system to ensure safe and quick disassembly and assembly; 5.Parts in contact with medicine all made of 316L stainless steel or other material conforms to modern medicine safety standards; 6.Detachable brush on main shaft can be thoroughly cleaned. No blind spot during whole machine cleaning. Meet cGMP demands. |
|
Product Specifications
MODEL | LFP-150A |
Applicable capsule model | 00# 0# 1# 2# 3# 4# |
Maximum productivity (grain/hour) | 450000 |
Entry height (mm) | 730 |
Exit height (mm) | 1100 |
The power indicator | 1PH 220V/110V 50 Hz/60Hz 0.20kw |
The compressed air | 0.3m3/min 0.3Mpa |
Vacuum aspiration | 3.0 m3/min -0.014Mpa |
Dimensions (mm) | 740 x 510 x 1500 |
Packaging dimension | 680x660x1550 |
| Net weight (kg) | 80 |
| Gross weight (kg) | 130 |
Configuration list
| Name | Model | Brand | Quantity |
| Motor | 100YS200GY22 | Xiamen Jingyan | 1 |
| Start up button | 2B2-BE101C | Schneider | 2 |
| Inverter | SIEMENS V20 | Siemens | 1 |
| Governor | WTH116-1A | Schneider | 1 |
| Filter | LFR-1/4-D-MN-MA | Festo | 1 |
Product Details
 |  |  |
 |  |  |
 |  |  |
Our Service
Through years of experience, Urban provides several services which cover almost all requirements of clients. These services include production, design, inspection, packaging, shipment, product recommendation, after-sales service, and multiple client solutions.
We can supply mаsk raw materials for you if you can't buy materials from in your local market.
We have a good relationship with more than four international shipping companies who have rich experiences in handling different kinds of shipping ways and also the customs declarations and clearances. They all have good shipping services to save you time and costs.
We have a professional international technical team. To provide you with after-sales service and guidance.
After-sale Service
We will always be responsible for the machine you purchased. Nearly 10 professional after-sales personnel provide global technical services. In this way, we also provide professional services, such as guide installation services, equipment commissioning and operation services, maintenance services and equipment parts replacement. Ensure the quality of your products, while eliminating your worries.
1. The whole machine is guaranteed for 1 years.
2. Provide professional machine operation and maintenance guidelines.
4. Provide 24-hour online professional technical services .
