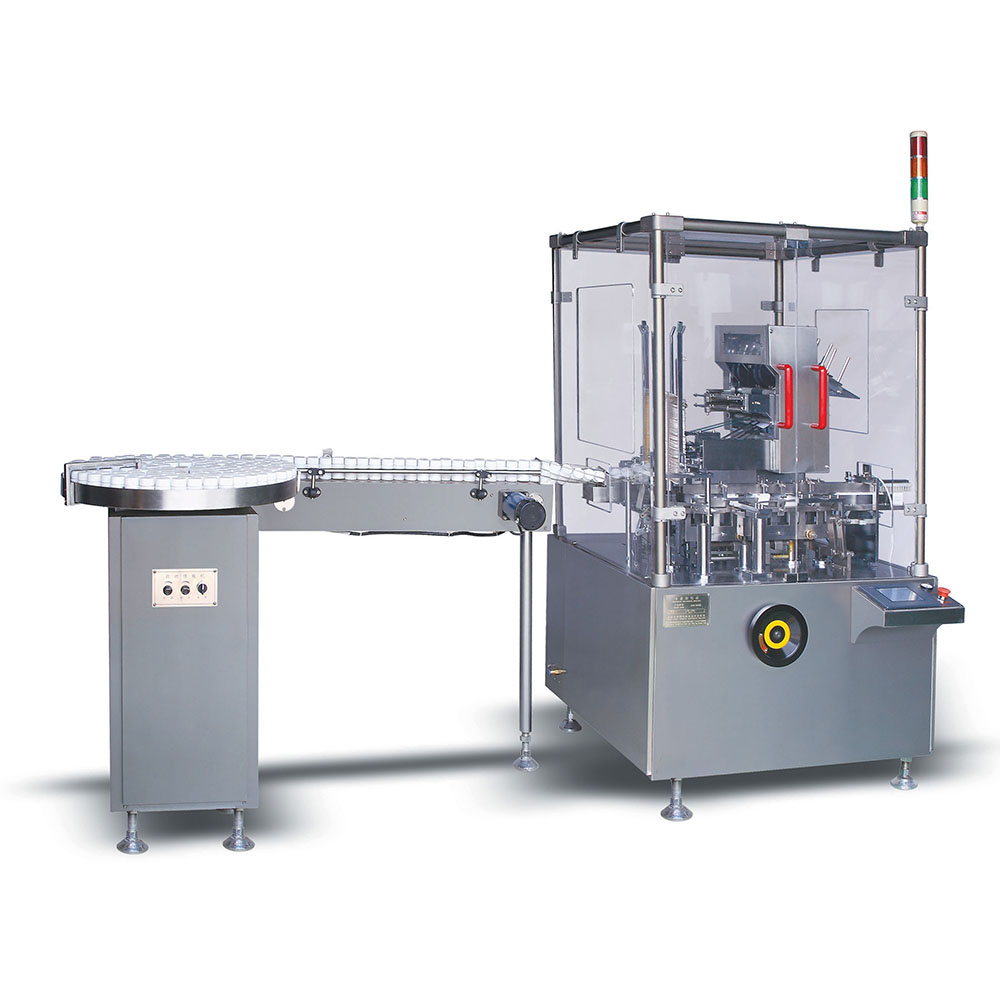

JDZ-120 III (Vertical)
Urban
This equipment is new model developping base on integrated domestic and foreign advance technology It is high technology product incorporates pneumatic-photo-electro-mechanic which improve by a large on performance of equipment and working efficiency, realize encasing fast, keep running steady and reliable when fast running. This machine is suitable for automatic feeding bottle into carton. On line bottle unscramble and feeding, leaflet fold(1-4folds) and feeding, leaflet detecting, canton opening and forming, products and leaflet pushing into carton, printing batch number, sealing carton with tuck-in or hot melt glue. Automatically reject lacking of leaflet or product and finished product out. Features • International famous brand of electrical component such as PLC touch screen, frequency inverters, etc. • Adopt human-machine operation system. • Automatically stop when machine is overload. • Automatically reject lacking of package product and leaflet. • Automatically display trouble, Alarm and count finished products. • Stable performance,operation is easy. | |
Specifications
Model | JDZ-120P (Vertical) | |
Encasing speed | 30-120 Cartons/min | |
Carton
| Quality requirement | 250-350g/㎡ Base on carton size |
Dimension range (L x W x H) | (65-125)mm x (30-85)mm x (12-50)mm | |
Leaflet | Quality requirement | 60-70g/㎡ |
Unfolded leaflet specification | (80-250)mm x (90-170)mm | |
Fold range
| [1-4] (Fold) | |
Compressed air | Working pressure | ≥0.6Mpa |
Air consumption | 120-160L/min | |
Power supply | 220V 50Hz | |
Motor power | 0.75kw | |
Machine dimension (L x W x H) | 2700mm x 1140mm x 1800mm | |
Machine weight | 1200kg | |
Our Service
Through years of experience, Urban provides several services which cover almost all requirements of clients. These services include production, design, inspection, packaging, shipment, product recommendation, after-sales service, and multiple client solutions.
We can supply mаsk raw materials for you if you can't buy materials from in your local market.
We have a good relationship with more than four international shipping companies who have rich experiences in handling different kinds of shipping ways and also the customs declarations and clearances. They all have good shipping services to save you time and costs.
We have a professional international technical team. To provide you with after-sales service and guidance.
After-sale Service
We will always be responsible for the machine you purchased. Nearly 10 professional after-sales personnel provide global technical services. In this way, we also provide professional services, such as guide installation services, equipment commissioning and operation services, maintenance services and equipment parts replacement. Ensure the quality of your products, while eliminating your worries.
1. The whole machine is guaranteed for 1 years.
2. Provide professional machine operation and maintenance guidelines.
4. Provide 24-hour online professional technical services .
