Injectable Vial Production Line, Liquid Filling Machine

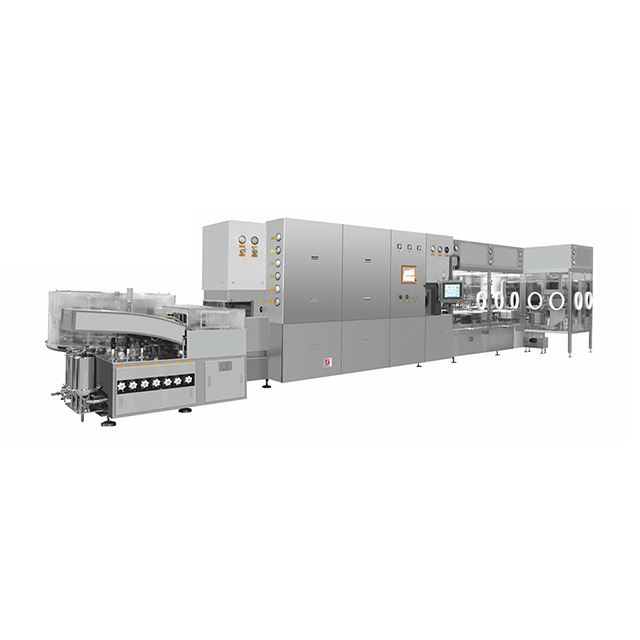

Glx2-25 zilin bottle liquid washing and drying filling and stopper line is made up of QCL series vertical ultrasonic bottle washing machine, ASMR tunnel type hot air circulation sterilization oven, KGF series zilin bottle liquid filling and stopper machine, also can be used in a single machine.
Availability:
  • QCL60+ASMR620/35 +KGF4

  • Urban

Introduction


Features

It is used in the production of 2-25ml xilin bottle water needle.  It can complete more than 20 processes such as spray water injection, ultrasonic rough washing, bottle wall water washing, bottle wall continuous two times circulating water washing, one blow, one fresh water washing, continuous two times blowing, bottle wall blowing, preheating, drying, sterilization, cooling, charging before, filling, charging after, stopper and so on.


QCL60

Specifications

product model

QCL60+ASMR620/35
+KGF4

QCL60+ASMR620/43
+KGF6

QCL60+ASMR620/43
+KGF8

QCL80+ASMR620/48
+KGF10

QCL120+ASMR800/55
+KGF12

QCL120+ASMR1250/60
+KGF20

QCL80*2+ASMR1250/60
+KGF12*2

Applicable specifications(ml)

2-25(International vial)

2-25(International vial)

2-25(International vial)

2-25(International vial)

2-25(International vial)

2-25(International vial)

2-25(International vial)

Filling quotas

4

6

8

10

12

20

24

production capacity (pcs/h)

120(2ml)

180(2ml)

200(2ml)

300(2ml)

400(2ml)

500(2ml)

650(2ml)

Pass rate of washing bottles(%)

≥ 99

≥ 99

≥ 99

≥ 99

≥ 99

≥ 99

≥ 99

Breakage rate of washing bottles(%)

≤ 0.1

≤ 0.1

≤ 0.1

≤ 0.1

≤ 0.1

≤ 0.1

≤ 0.1

Sterilization temperature(°C)

300-350

300-350

300-350

300-350

300-350

300-350

300-350

exhaust air rate(m3/h)

3000

3000

4100

4100

7500

8,000-10,000

8,000-10,000

Filling accuracy(%)

≤ ±2.5 (Mechanical drive positive displacement pump, ceramic pump, stainless steel pump)     ≤ ± 0.5-1.0 (Servo driven positive displacement pump)

Gagging pass rate(%)

≥ 99

≥ 99

≥ 99

≥ 99

≥ 99

≥ 99

≥ 99

Air laminar flow cleanliness(Class)

100

100

100

100

100

100

100

Vacuum pumping speed(m3/h)

10

30

50

60

60

100

120

electric capacity

66.6

75.6

75.6

106.6

106.6

212.6

232.6

power supply

385V 50Hz

385V 50Hz

385V 50Hz

385V 50Hz

385V 50Hz

385V 50Hz

385V 50Hz

total weight (kg)

6300

6300

7900

7900

9400

10900

14600

boundary dimension(LxWxH) (mm)

8,550 × 2,540 × 2,330

8,550 × 2,540 × 2,330

9,620 × 2,540 × 2,330

9,620 × 2,540 × 2,330

10,280 × 3,230 × 2,360

12,730 × 2,600 × 2,620

11,790 × 5,700 × 2,620



Our Service

  • Through years of experience, Urban provides several services which cover almost all requirements of clients. These services include production, design, inspection, packaging, shipment, product recommendation, after-sales service,  and multiple client solutions.


  • We can supply mаsk raw materials for you if you can't buy materials from in your local market.


  • We have a good relationship with more than four international shipping companies who have rich experiences in handling different kinds of shipping ways and also the customs declarations and clearances. They all have good shipping services to save you time and costs.


  • We have a professional international technical team. To provide you with after-sales service and guidance.

After-sale Service

We will always be responsible for the machine you purchased. Nearly 10 professional after-sales personnel provide global technical services. In this way, we also provide professional services, such as guide installation services, equipment commissioning and operation services, maintenance services and equipment parts replacement. Ensure the quality of your products, while eliminating your worries.

  1. 1. The whole machine is guaranteed for 1 years.

  2. 2. Provide professional machine operation and maintenance guidelines.

  3. 4. Provide 24-hour online professional technical services .
