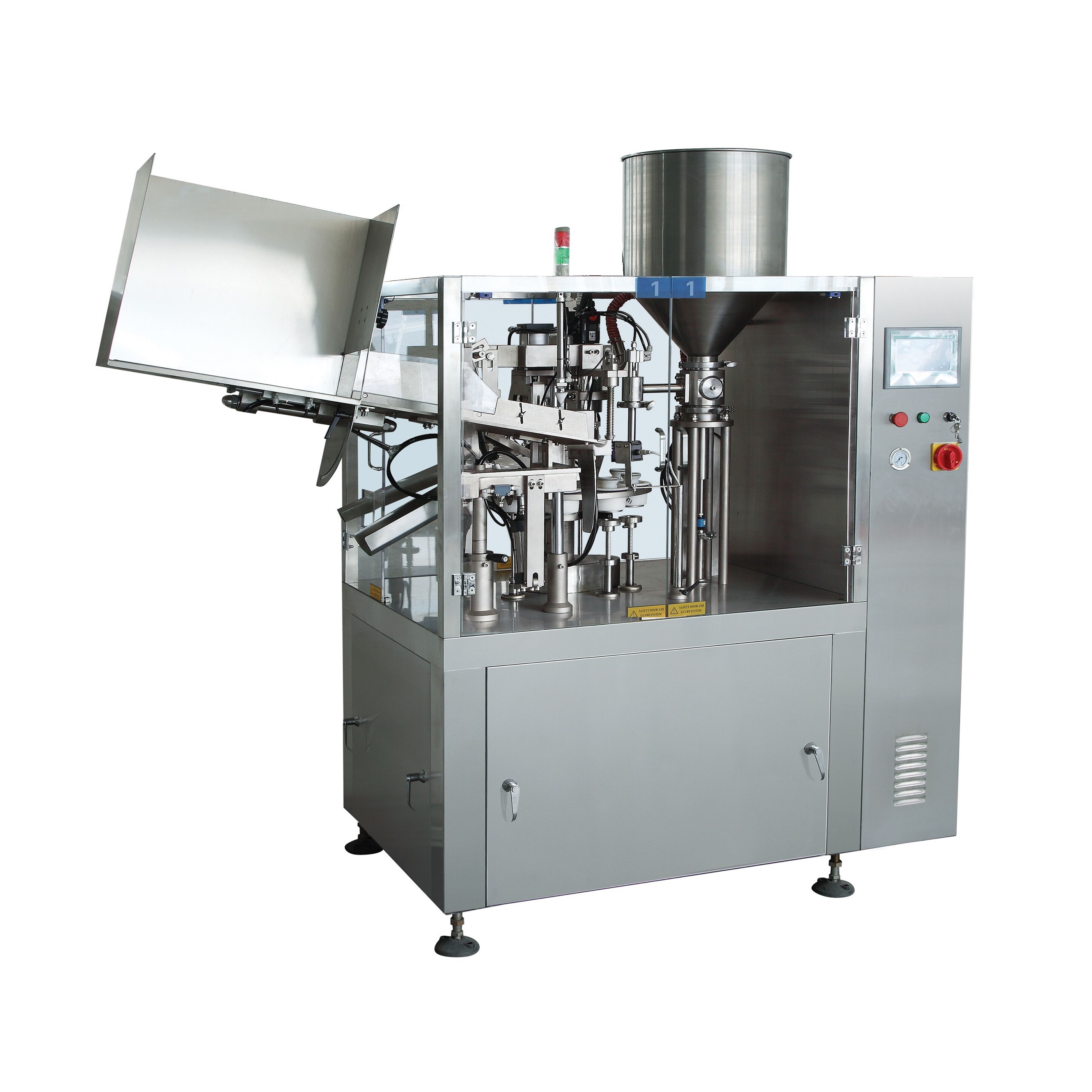

NF-60A High Speed Automatic Plastic Tube Filling Machine and Cream Tube Filling and Sealing Machine

The automatic horizontal cartoning machine is a high-tech product integrating light, electricity, gas and machine.
As a result, the equipment performance and work efficiency have been greatly improved, the requirement of fast boxing is realized, and the stable and reliable state is still maintained during fast operation.
Availability:
  • NF-60A
  • Urban

Introduction

NF-60A Automatic tube filling & sealing machine is import foreign advanced technique,specially designed according to technology of cosmetics, ointment cream products,machine include automatic tube feeding,heating,sealing,pretreatment  system,filling adopt mechanical piston, electrical control system and operation platform system.

60A

Application:
1. International famous brand of electrical component such as PLC touch screen, frequency inverters, etc.
2.Adopt human-machine operation system.
3.Automatically stop when machine is overload.
4.Automatically reject lacking of package product and leaflet.
5.Automatically display trouble, Alarm and count finished products.
6.Stable performance,operation is easy.


Specifications

Model    NF-60A
Filling Precision

  +-1%

                         Filling Range   5-250ml
                         Operation Speed   30-50/min/max
                        Case Body Material    304
                      Suitable Tube Diameter    13-50mm
                       Suitable Tube Length    50-210mm
Power supply

   380V   220V  50/60HZ

Motor Power    350W*2 250W*2
                          Applicable to     plastic composite tube and aluminum plastic composite        tubes
Dimensions(LXWXH)

1950×1000×1800mm

Weight

850KG


Our Service

  • Through years of experience, Urban provides several services which cover almost all requirements of clients. These services include production, design, inspection, packaging, shipment, product recommendation, after-sales service,  and multiple client solutions.


  • We can supply mаsk raw materials for you if you can't buy materials from in your local market.


  • We have a good relationship with more than four international shipping companies who have rich experiences in handling different kinds of shipping ways and also the customs declarations and clearances. They all have good shipping services to save you time and costs.


  • We have a professional international technical team. To provide you with after-sales service and guidance.

After-sale Service

We will always be responsible for the machine you purchased. Nearly 10 professional after-sales personnel provide global technical services. In this way, we also provide professional services, such as guide installation services, equipment commissioning and operation services, maintenance services and equipment parts replacement. Ensure the quality of your products, while eliminating your worries.

  1. 1. The whole machine is guaranteed for 1 years.

  2. 2. Provide professional machine operation and maintenance guidelines.

  3. 4. Provide 24-hour online professional technical services .
