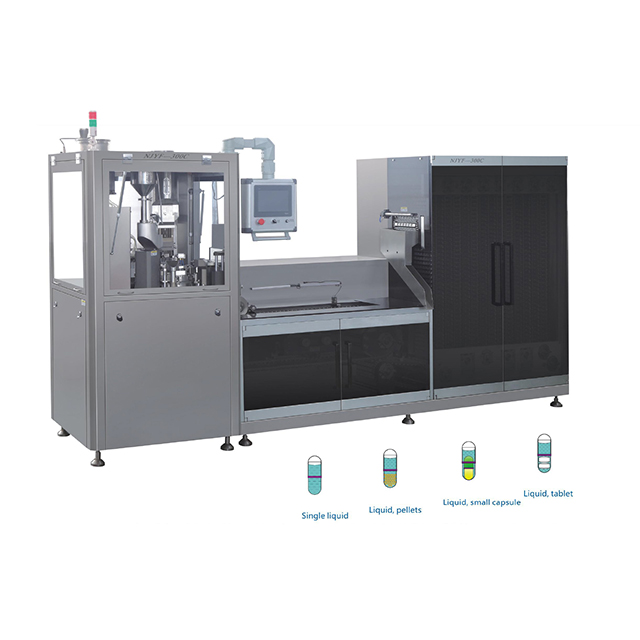

NJYF-300C Automatic Hard Capsule Liquid Filling And Sealing Machine Production Line

NJYF-300C automatic hard-capsule liquid filling machine and sealing linkage line equipment are the first in-line equipment of our company based on our own multi-year capsule filling technology, self-developed design and production of hard capsule filling liquid and sealing.
  • NJYF-300C
  • Urban

Introduction

微信图片_20210323111754
  1. The equipment adopts man-machine interface control system, which automatically lacks capsules and lacks material alarm.


  2. The capsule feeding machine has a vacuum positioning and separating mechanism, so that the probability of the capsule is over 99%. The fiber is automatically detected, and the capsule is missing in the upper and lower mold holes.


  3. High-precision ceramic pump and servo motor dosing system are adopted to control the difference of the loading amount to about ±2%, and the dosage is accurate.


  4. The sealing mechanism adopts the servo motor lifting device, which can be used to jog and fine-tune the rubber wheel to achieve the best effect of the sealing layer.


  5. The sealing liquid tank is designed as a sealing structure, and is equipped with a heating and heat preservation system to ensure the viscosity of the glue liquid and effectively extend the glue liquid period.


  6. The finished dry curing mold adopts hanging type and free rotation structure, which effectively improves the disassembly and unloading cleaning time.

Specifications

Model

NJYF-300C

Yield

18,000 tablets / hour

Sealable capsule filling

Solution, suspension, microemulsion

Mold hole number

6 holes

Applicable capsule

00-4# gelatin, plant capsule

Environmental requirements

Room temperature around 20C, humidity 40% -55%

voltage

Three-phase 380V/220V 50Hz

Total power

9KW

Compressed air

0.6Mpa

Total weight

2300KG

Dimensions

3800*900*1900MM (length × width × height)


Machine Detail

capsule filling machine

New Closed Turntable

capsule filling machine

Rotary type capsule-out

capsule filling machine

Internal Structure of Turntable

capsule filling machine

New Closed Turntable
