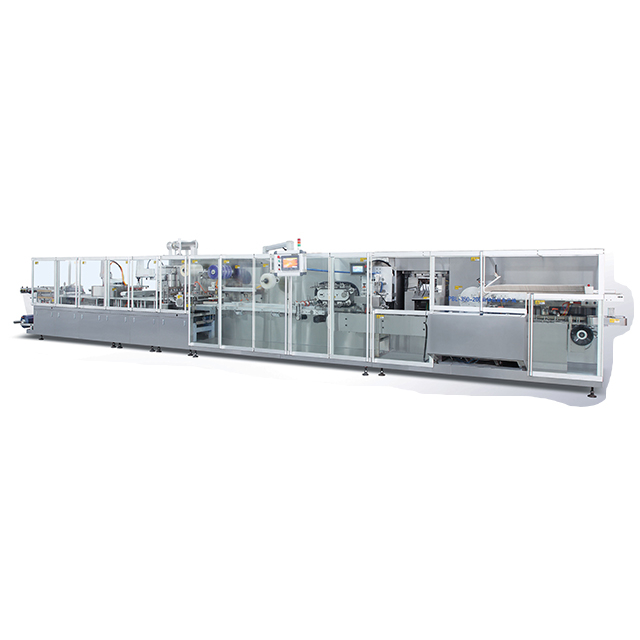

PBL-350-200 Automatic Oral Liquid Blister Packing Machine, Cartoning machine , Urban

Controlled by the PLC, the production line is collected light, machine, electricity and air into an organic whole to finish Alu/PVC blister packing and automatically pucker medicine leaflet and medicine paper box packing, full-automatically running in succession medicine's packages
This product has advancedself-examining function, can identify broken froth cover, shortage of medicine, medincin board and manual etc, and empty box examing memory. It can waster at 100% level.
  • PBL-350-200
  • Urban

Introduction


Controlled by the PLC, the production line is collected light, machine, electricity and air into an organic whole to finish Alu/PVC blister packing and automatically pucker medicine leaflet and medicine paper box packing, full-automatically running in succession medicine's packages


This product has advancedself-examining function, can identify broken froth cover, shortage of medicine, medincin board and manual etc, and empty box examing memory. It can waster at 100% level.



Specifications
13-14 拷贝





No.

Description

Specification

1

Blister Packing Machine

Frequency

16~30 stroke/min

2

Max.Forming area

220×345 mm

3

Indexing area

60 ~210 mm(control by servo)

4

Blister size

According to client requirement

5

Packing Material

PVC 0.15~0.5×350mm,

Dia.75mm

6

Power Supply

PVC Heating  2×2 KW

Sealing Plate  2×1.75KW

7

Cooling water

13°-15°/ 60 L/h

8

Main Powder

2.2KW

1

Cartoning Machine

Carton Size (LxWxH)

(75~200)×(33~105)×(16~60)mm

Weight:300-350g/ m2

2

Leaflet size (LxH)

(100~190)×(100~260)mm

3

Specification quality requirements

50~60g/m2

4

Max.Capacity

100~160 carton/min

5

Power Supply

380V  50Hz

6

Main Power

2.2KW

7

Overal Dimension(L×W×H)mm

12500×2000×1700mm

8

Weight

3500kg

9

Power Supply

17KW

10

Air Consumption

140 L/min

11

Air Pressure

0.5~1.0MPa


Our Service

  • Through years of experience, Urban provides several services which cover almost all requirements of clients. These services include production, design, inspection, packaging, shipment, product recommendation, after-sales service,  and multiple client solutions.


  • We can supply mаsk raw materials for you if you can't buy materials from in your local market.


  • We have a good relationship with more than four international shipping companies who have rich experiences in handling different kinds of shipping ways and also the customs declarations and clearances. They all have good shipping services to save you time and costs.


  • We have a professional international technical team. To provide you with after-sales service and guidance.


After-sale Service

We will always be responsible for the machine you purchased. Nearly 10 professional after-sales personnel provide global technical services. In this way, we also provide professional services, such as guide installation services, equipment commissioning and operation services, maintenance services and equipment parts replacement. Ensure the quality of your products, while eliminating your worries.


  1. 1. The whole machine is guaranteed for 1 years.

  2. 2. Provide professional machine operation and maintenance guidelines.

  3. 4. Provide 24-hour online professional technical services .
