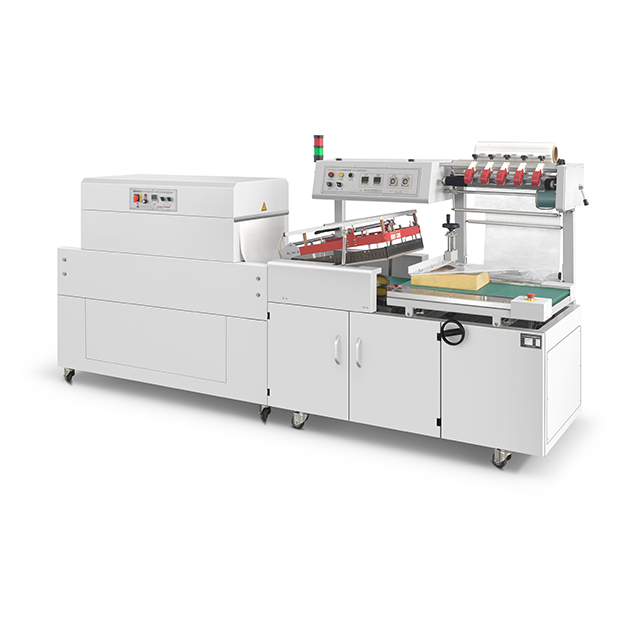

BS-400LA+BMD-450C
Urban
1. BS-400LA+BMD-450C IS A FULLY AUTOMATIC SHRINK PACKAGING MACHINE INCLUDING L SEALER AND SHRINK TUNNEL WHICH CAN FEED PRODUCTS, SEAL AND CUT FILM AND SHRINK FILM BAG AUTOMATICALLY. IT IS WIDELY USED IN FOOD, PHARMACEUTICAL, STATIONARY, TOY, AUTO PARTS, COSMETICS, PRINTING, HARDWARE, ELECTRICAL APPLIANCES AND OTHER INDUSTRY. 2. SPECIAL DURABLE ALLOYED SEALING KNIFE WITH ANTI-STICK TEFLON COATS MAKES SEALING STRONG AND HAS BETTER PERFORMANCE OF HEAT CONDUCTION. 3. ONLY ADJUST PACKING WIDTH AND HEIGHT BY HAND WHEELS WITHOUT CHANGING ANY MOLDS AND PARTS WHEN PACKING SIZE CHANGES. PACKING LENGTH CAN BE DETECTED BY THE SENSOR AUTOMATICALLY. 4. DIFFERENT PRODUCTS WITH DIFFERENT SIZES CAN BE PACKED TOGETHER AS PROMOTIONAL PACKAGE. 5. ADOPT OMRON BRAND PARTS SUCH AS TEMPERATURE CONTROLLER, TIMER, RELAY, SWITCH, AND SENSOR. 6. ALARM FOR SCRAP FILM BREAK OR FULL. 7. A PAIR OF PHOTOELECTRIC SWITCH IN VERTICAL FOR THIN PRODUCTS. 8. OPTIONAL CLOSING CONVEYOR FOR SMALL PRODUCTS. 9. OPTIONAL SENSOR FOR TRANSPARENT PRODUCTS. |  |
Specifications
SEALING TYPE | L-SEALING |
POWER SUPPLY | 380V/50-60HZ/3PHASE |
PACKING CAPACITY | MAX. 35 PACKS PER MINUTE (DEPENDS ON PRODUCT SIZE) |
SEALING SIZE | 570 X 480MM |
SEALING HEIGHT | 125MM |
PACKING WIDTH | 350MM |
PACKING SIZE | WIDTH + HEIGHT < 400MM, LENGTH + HEIGHT < 480MM |
FILM TYPE | CENTER FOLDED POLYOLEFIN (POF) FILM |
MAX FILM SIZE | 530MM (WIDTH) X 280MM (OUTER DIAMETER) |
POWER CONSUMPTION | 1.5 KW |
WORKING HEIGHT | 780-850 MM |
AIR PRESSURE | 0.5MPA (5 BAR) |
SEALING KNIFE | SPECIAL DURABLE ALLOYED SEALING KNIFE WITH ANTI-STICK TEFLON COATS |
MACHINE MATERIAL | CARBON STEEL |
MACHINE DIMENSIONS | 1600 X 770 X 1450 MM |
SHRINK TUNNEL: | |
POWER SUPPLY | 380V/50-60HZ/3PHASE |
OVEN SIZE | 1200MM (L), ENTRANCE 450(W) X 220(H) MM |
CONVEYOR SPEED | VARIABLE, 40 M/MIN |
CONVEYOR | CHAINS WITH ROTATING SILICON COATED RODS |
RATED POWER CONSUMPTION | MAX. 7 KW |
WORKING HEIGHT | 780 - 850 MM |
MACHINE MATERIAL | CARBON STEEL |
MACHINE DIMENSIONS | 1600 X 600 X 1260 MM |
Application
 |
Our Service
Through years of experience, Urban provides several services which cover almost all requirements of clients. These services include production, design, inspection, packaging, shipment, product recommendation, after-sales service, and multiple client solutions.
We can supply mаsk raw materials for you if you can't buy materials from in your local market.
We have a good relationship with more than four international shipping companies who have rich experiences in handling different kinds of shipping ways and also the customs declarations and clearances. They all have good shipping services to save you time and costs.
We have a professional international technical team. To provide you with after-sales service and guidance.
After-sale Service
We will always be responsible for the machine you purchased. Nearly 10 professional after-sales personnel provide global technical services. In this way, we also provide professional services, such as guide installation services, equipment commissioning and operation services, maintenance services and equipment parts replacement. Ensure the quality of your products, while eliminating your worries.
1. The whole machine is guaranteed for 1 years.
2. Provide professional machine operation and maintenance guidelines.
4. Provide 24-hour online professional technical services .
