GB-600
Urban

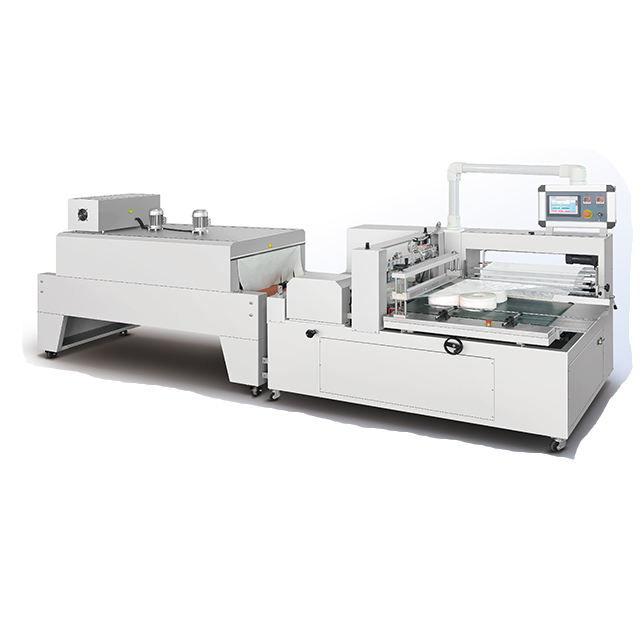

1. GB-600 IS A FULLY AUTOMATIC SHRINK PACKAGING MACHINE INCLUDING SIDE SEALER AND SHRINK TUNNEL WHICH CAN FEED PRODUCTS, SEAL AND CUT FILM AND SHRINK FILM BAG AUTOMATICALLY. IT IS WIDELY USED IN FOOD, PHARMACEUTICAL, STATIONARY, TOY, AUTO PARTS, COSMETICS, PRINTING, HARDWARE, ELECTRICAL APPLIANCES AND OTHER INDUSTRY. 2. THIS MACHINE CAN PACK LONG PRODUCTS. THERE IS NO LIMIT OF PRODUCT LENGTH BECAUSE OF SIDE SEALING SYSTEM. 3. SPECIAL DURABLE ALLOYED SEALING KNIFE WITH ANTI-STICK TEFLON COATS MAKES SEALING STRONG AND HAS BETTER PERFORMANCE OF HEAT CONDUCTION. 4. SIDE SEALING LINE CAN BE ADJUSTED IN THE CENTER OF PRODUCT OR OTHER DESIRED POSITION. 5. FILM PERFORATING WHEELS CAN BE ADJUSTED OR REMOVED EASILY. 6. ONLY ADJUST PACKING WIDTH AND HEIGHT BY HAND WHEELS WITHOUT CHANGING ANY MOLDS AND PARTS WHEN PACKING SIZE CHANGES. PACKING LENGTH CAN BE DETECTED BY THE SENSOR AUTOMATICALLY. 7. OPERATE EASILY AND CONVENIENTLY BY MOVEABLE CONTROL PANEL. 8. ADOPT SIEMENS PLC AND COLORFUL TOUCH SCREEN, OMRON TEMPERATURE CONTROLLER, TIMER, RELAY, SWITCH, AND SENSOR. 9. A PAIR OF PHOTOELECTRIC SWITCH IN VERTICAL FOR THIN PRODUCTS. 10. OPTIONAL SENSOR FOR TRANSPARENT PRODUCTS. |  |
Specifications
SEALING TYPE | SIDE SEALING |
POWER SUPPLY | 380V/50-60HZ/3PHASE |
PRODUCT LENGTH | INFINITE |
SEALING HEIGHT | 250MM |
SEALING WIDTH | 600MM |
PRODUCT SIZE | WIDTH + HEIGHT < 650MM |
PACKING CAPACITY | MAX. 30 PACKS PER MINUTE (DEPENDS ON PRODUCT SIZE) |
FILM TYPE | CENTER FOLDED POLYOLEFIN (POF) FILM OR POLYETHYLENE (PE) FILM |
MAX FILM SIZE | 860MM (WIDTH) X 280MM(OUTER DIAMETER) |
POWER CONSUMPTION | MAX. 11.5 KW |
TUNNEL OVEN SIZE | 1800MM(L), ENTRANCE 730(W) X 280(H) MM (DEPENDS ON PRODUCT SIZE) |
TUNNEL CONVEYOR SPEED | VARIABLE, 20 M/MIN |
TUNNEL CONVEYOR | CHAINS WITH ROTATING SILICON COATED RODS |
WORKING HEIGHT | 750-820 MM |
AIR PRESSURE | 0.5MPA (5 BAR) |
SEALING KNIFE | SPECIAL DURABLE ALLOYED SEALING KNIFE WITH ANTI-STICK TEFLON COATS |
OPERATION PANEL | SIEMENS COLORFUL TOUCH SCREEN, OMRON TEMPERATURE CONTROLLER |
MACHINE MATERIAL | CARBON STEEL WITH POWER COATING |
MACHINE DIMENSIONS | 2100 X 1350 X 1150MM, 2200 X 930 X 1270MM |
Application
 |
Our Service
Through years of experience, Urban provides several services which cover almost all requirements of clients. These services include production, design, inspection, packaging, shipment, product recommendation, after-sales service, and multiple client solutions.
We can supply mаsk raw materials for you if you can't buy materials from in your local market.
We have a good relationship with more than four international shipping companies who have rich experiences in handling different kinds of shipping ways and also the customs declarations and clearances. They all have good shipping services to save you time and costs.
We have a professional international technical team. To provide you with after-sales service and guidance.
After-sale Service
We will always be responsible for the machine you purchased. Nearly 10 professional after-sales personnel provide global technical services. In this way, we also provide professional services, such as guide installation services, equipment commissioning and operation services, maintenance services and equipment parts replacement. Ensure the quality of your products, while eliminating your worries.
1. The whole machine is guaranteed for 1 years.
2. Provide professional machine operation and maintenance guidelines.
4. Provide 24-hour online professional technical services .
