Plastic Ampoule Filling And Sealing Machine with Labeling Machine | Liquid Filling And Sealing Machine | Labeling Machine,Urban

Application
The machine is suitable for liquid, medicine, beverage, health product, food, perfume, pesticide, cosmetics, electronic cigarette oil, dairy product, fruit pulp, oil and etc.
Availability:
  • GGS118(P5)+PM100

  • Urban

Introduction

1. It adopts PLC control and stepless frequency conversion speed regulation.

2. The working processes such as unwinding, plastic forming, filling, batch number printing, indentation, punching and cutting are completed automatically by the program.

3. It adopts human-machine interface device, which has simple operation.

4. The filling has no dripping, bubbling, and overflowing.

5. The parts contacting with medicine all adopt high quality stainless steel material, which meets with GMP standard.

6. The main pneumatic and electrical components adopt imported brand.

7. It adopts self-control filling system of electronic peristaltic pump and mechanical filling, which have accurate metering with small error.

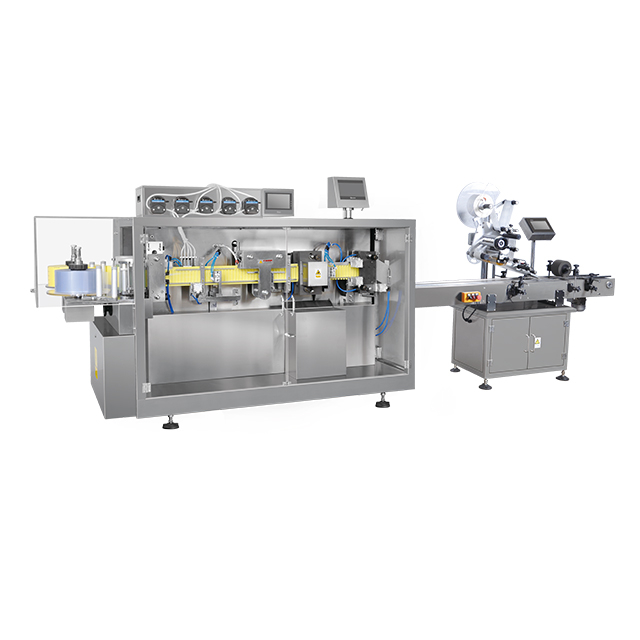

GGS118P5加贴标

Specifications



Model GGS118(P5)

Max. forming depth

12mm

Punch frequency

6600 pcs/hour

Packing material

PVC/PE,PET/PE(0.2-0.4)×140mm

Filling volume

1-50ml

Total power supply power

7KW

Voltage

220-380V/50Hz

Machine weight

900Kg

Overall dimension (L*W*H)

2300×850×1400(mm)


Model

PM-100

Label size

L58mm (W)6mm

Applicable label roll inner diameter

Φ76 mm

Applicable label roll inner diameter

Φ350 mm

Machine size

2000×600×1800(mm)

Voltage

AC220V50Hz/60Hz 800W



Sample

IMG_4169



Our Service

  • Through years of experience, Urban provides several services which cover almost all requirements of clients. These services include production, design, inspection, packaging, shipment, product recommendation, after-sales service,  and multiple client solutions.


  • We can supply mаsk raw materials for you if you can't buy materials from in your local market.


  • We have a good relationship with more than four international shipping companies who have rich experiences in handling different kinds of shipping ways and also the customs declarations and clearances. They all have good shipping services to save you time and costs.


  • We have a professional international technical team. To provide you with after-sales service and guidance.

After-sale Service

We will always be responsible for the machine you purchased. Nearly 10 professional after-sales personnel provide global technical services. In this way, we also provide professional services, such as guide installation services, equipment commissioning and operation services, maintenance services and equipment parts replacement. Ensure the quality of your products, while eliminating your worries.

  1. 1. The whole machine is guaranteed for 1 years.

  2. 2. Provide professional machine operation and maintenance guidelines.

  3. 4. Provide 24-hour online professional technical services .




About Us

Urban was founded in 2003, is a professional engaged in the research, development, sale and service of mask production machine, melt-blown cloth production machine, protective clothing production machine, liquid capsule filling machine and other medical production equipment and pharmaceutical machinery.


Company has won a member of the Chinese pharmaceutical equipment industry small and mid sized enterprise of Zhejiang province, wenzhou science and technology innovation oriented enterprises, through the 1509001 quality management system certification, eu CE mark certification, product has self-supported import and export right, the company existing authorized more than 20 patents, among them 2 product invention patents, also has many sets of high-end machining center equipment and testing equipment, provide quality assurance for the quality of products.
