Professional Automatic UBM-8SX Capsule And Tablet Counting Line

Capsule And Tablet Counting Line is used for counting and filling capsules in poly bags and rigid containers. This line is the most complete, affordable, and innovative capsule and tablet counting line in the marketplace. We fully integrated this line to include from automatic capsule and table counting machine, linear bottle capping machine with cap elevator, induction sealing machine, round bottle single side labeling machine and turn table.
Availability:
  • Urban

Introduction

Item  Basic Machines
1

UBM-8S Automatic Capsule and Tablet Counting Machine

2

UBM-CG Linear Bottle Capping Machine with cap elevator

3

UBM-LF Induction Sealing Machine

4

UBM-200YT Round Bottle Single Side Labeling Machin

5 UBM900ZP Turn Table (collect bottles)
The bottle size:17.5mm dia x 12.7mm height  38.9mm dia x 18.3mm height


Product Details

001

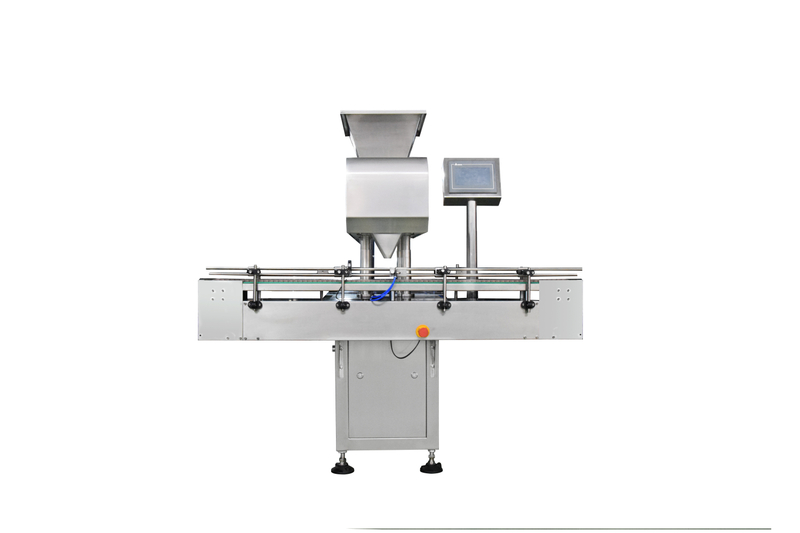

UBM-8S Automatic Electronic Counting Machine

SED-8S Automatic Electronic Counting Machine
Automatic Electronic counting machine is special for counting tablets, soft gelatin, hard capsule and chewing gums, etc. This machine adopts 8 sets imported counting sensor for counting with 8 Guiding Way and two head. The advantage of the machine is no need change mould when you change the counting object, only adjusting the counting table height by Easy Adjust wheel. The machine comes with Touch screen operation and PLC Control for convenient running.



Main Technical Data:

Model Name UBM-8S
Application

1. Filled capsule(00-5#)

2. Soft Gelatin capsule

3. chewing gum

4. tablet

other solid object under machine range

Hopper Volume

20L

Capacity

20-30bottles(50-100 pcs/bottle)/min

Filling Quantity

2-9999pcs/bottle (adjustable)

Bottle Size

Diameter: 30-75mm

Height:40-180mm

Counting Size

Thickness: 3-10mm

Diameter: 3-22mm

Length: 3-30mm

Compressed air
0.6Mpa

Machine Weight

250kg

Machine Size L × W × H (mm)

1360x1300x1700mm


Configuration:

Name

Manufacturer

Electric machinery

Panasonic Electric

Photoelectric sensor

Germany Sick

Counting photoelectric system SED
Pneumatic components

Airtec International Group

Leakage protection

Schneider

Switch button

Taiwan MeanWell

Human interface

Taiwan Delta


Product Picture


SED-8S Automatic Electronic Counting Machine 1

Photoelectric eye will judge whether there is bottle at the feeding mouth (it does not work without bottle)

SED-8S Automatic Electronic Counting Machine 2SED-8S Automatic Electronic Counting Machine 3

The material moves orderly to the medicine chamber through the vibration of the corrugated plate

SED-8S Automatic Electronic Counting Machine 4

Touch screen control

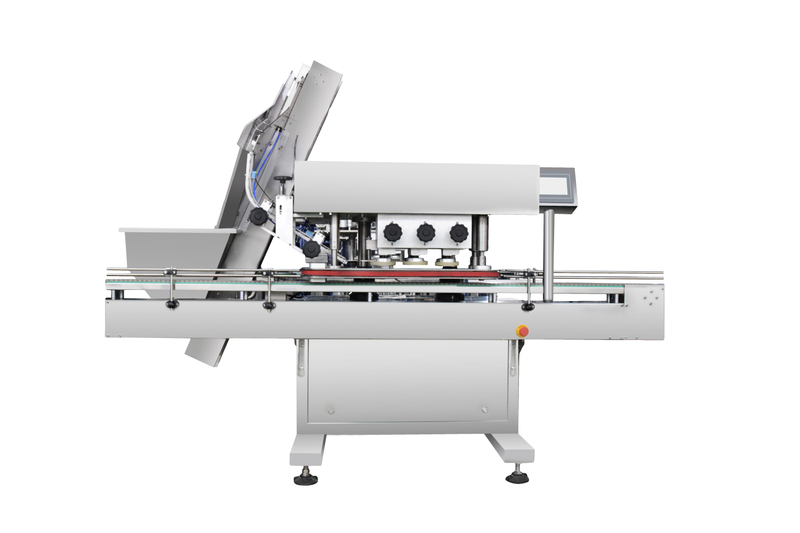

UBM-CG Linear Bottle Capping Machine

SED-CG Linear Bottle Capping Machine
The machine adopts three groups of friction rollers to screw caps. Screwed caps are not easily damaged by the screwing unit. And if caps are not screwed tightly or tilted, they will be found and rejected automatically. The screw capper is available for various bottles and its changeover is fast and easy. The machine overthrows conventional means of arranging cap by electromagnetic oscillation but arranges caps pneumatically to avoid noise pollution and reduce electric power consumption. It also provides international brand PLC controls, variable frequency controls and photoelectric controls. The machine is incorporated with the device of arranging and lifting cap and a big capacity of cap hopper, so less cap feeding times reduces labor intensity. Generally operators can grasp fluently. The machine conforms to the requirements of GMP completely.


Main Technical Data:

Size of bottles:

20-500 ml

Output:

50-150 bottles/min

Diameter of caps:

φ20-65 mm

Diameter of bottles:

φ20-80 mm

Power supply:

220V 60Hz

Power:

1.5KW

Overall dimensions:

2160*1050*1900 mm

Weight:

650KG



Configuration:
Name

Manufacturer

Electric machinery

Panasonic Electric

Photoelectric sensor

Germany Sick

Pneumatic components

Airtec International Group

Leakage protection

Schneider

Switch button

Taiwan MeanWell

Human interface

Taiwan Delta


Product Picture

SED-CG Linear Bottle Capping Machine 1SED-CG Linear Bottle Capping Machine 2

The material drives the cap to rotate through the cap roller of the bottle clamping belt to tighten the cap

SED-CG Linear Bottle Capping Machine 3

The cap system will place the cap on the bottle in an orderly way

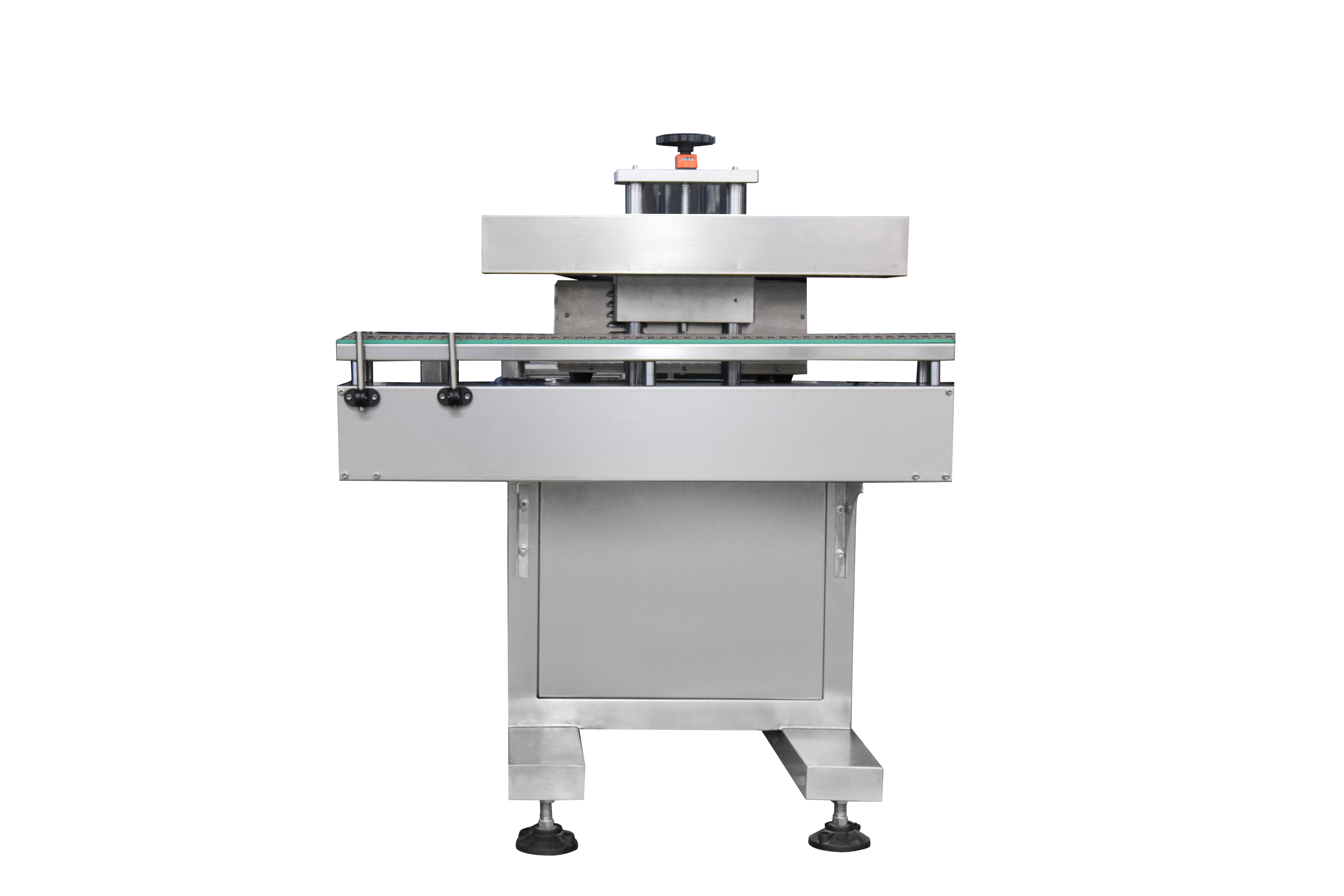

UBM-LF Induction Sealing Machine

SED-LF Induction Sealing Machine
Intermediate frequency power supply of the machine makes effective output power great and output current adjustable. It also auto tracks change of current load and makes adjustment in time. If there is no bottle in the specified position, it will stop automatically to save electric power. The machine is available for various bottles. The special sealing induction plate is completely shielded without electromagnetic pollution and its safety is superior to high-frequency power supply. Coding system of the machine adopts built-in water circulation to save water consumption and reduce water pollution; it also has pressurizing system which features good cooling conditions, short sticking time, firm sealing and high stability. Even if the mouth of the bottle is moist with many kinds of liquid, the machine still seals perfectly. If water stop, The machine will sound alarm. Besides, some mechanism protects the machine from being damaged by over current, over voltage and under voltage. And it also has functions of continuous counting and automatic rejection of caps without aluminum foil. The product confirms to the requirements of GMP.


Main Technical Data:

Bottle Size

20-300ml

Output

50-120bottles/min

Diameter of caps

Smaller than 60mm

Height of bottle

220mm

Power Supply

220V 60Hz

Power

2Kw

Overall Dimensions

1300*780*1750mm


Configuration:


No.

Name

Model

QTY

Specification

Original

1

Breaker

DZ47-63    C32

1

30/400V

Delixi

2

Solid State Relay

CDG1-1DA

1

DC12V/40A 480V

Delixi

3

Bridge rectifier

KBPC5010

1

50A/1000V

SEP (Taiwan Changhong)

4

Filter capacitor


1

2200uF/450VDC

Xunshuo
5

Transformer

SJW-0452/EI-57
1

8V -0.8A/16V-0.8A

Shengjiewei
6

Cooling fan

AC AXIAL FAN

3

0.12A/20W

Elvin
7

Digital display

HB5153B

1

0~75mV/0~19.99A

Huibang
8

Power tube

Toshiba

4

50A /500V

Toshiba

9

Integrated circuit

Motorola

1

\

Motorola (USA)
10

Integrated circuit


4 AT company, ST company, Fairchild
11

Electrolytic capacitor

Rubycon

7

1uF/16V

Ruby (Taiwan)

12

Capacitance

MKP-X2

1

10uF/275V

Create
13

Polypropylene capacitor

GRAY 335

1

335J/800V

Shenzhen


Product Picture



SED-LF Induction Sealing Machine 1

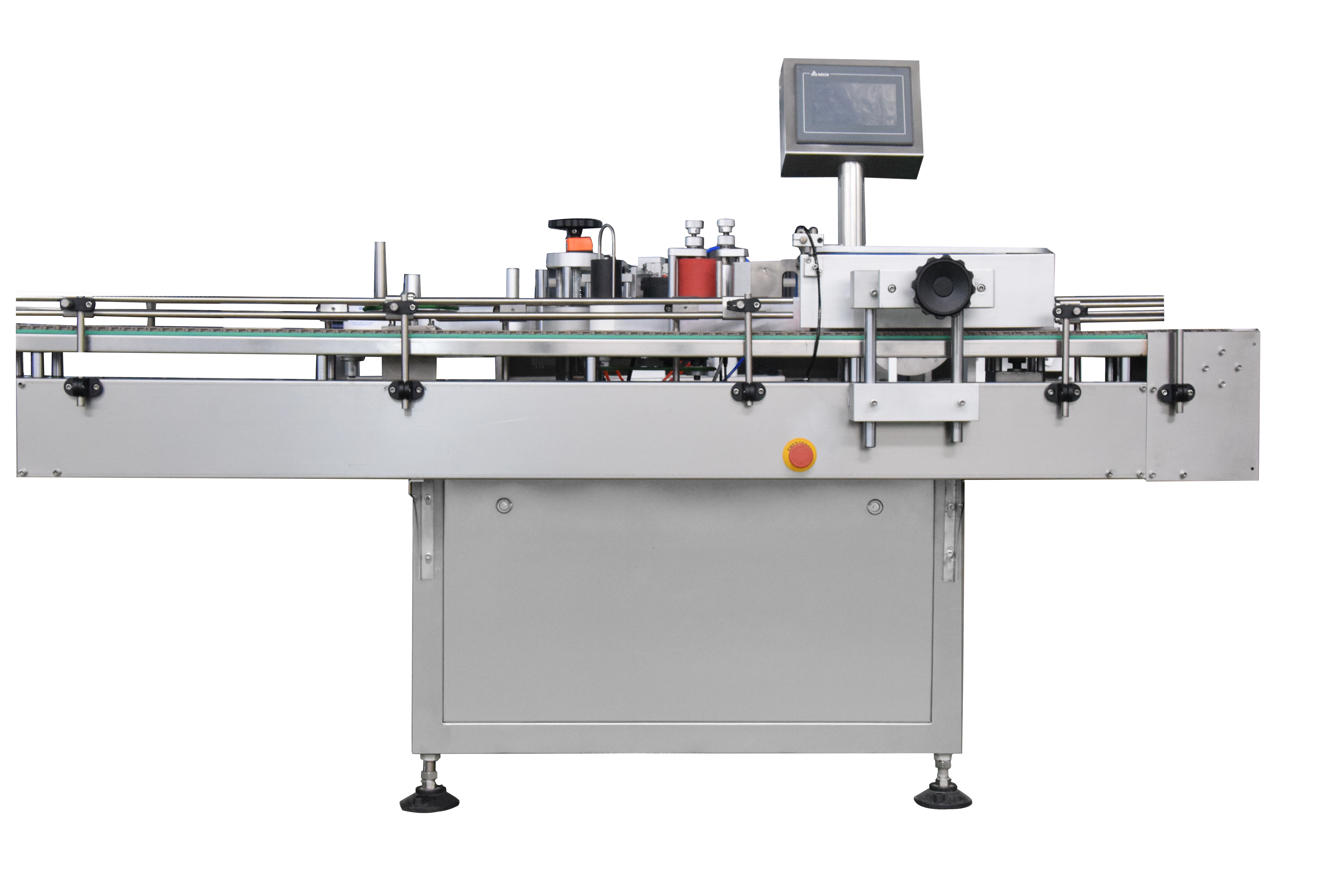

UBM-200YT Automatic Round Bottle Labeling Machine

SED-200YT Automatic Round Bottle Labeling Machine
SED-200YT model vertical type round bottle Round Bottle Labeling machine, in order to achieve rationalization of production target and design. The machine comes with automatic labeling process, simple operation, high speed running, accurate labeling position, beautiful labeling. The machine can be used for pharmaceutical, chemical and foodstuff Industry labeling.
Working principle:
Put the bottles into the conveyor system (or Auto Bottle Ordering Machine is optional), the conveyor will transport the bottles to labeling station. There is automatic sensor equipped on the machine will sense the passed bottle and feedback to PLC. The PLC gets the signal, then feedback to Step Motor, the step motor supplies the Label to Rotation Pressing Roller which makes the labeling process.
Main Feature:


  • The machine adopts step motor for driving, high accuracy working. (Servo Motor is also an optional)

  • PLC control with Touch screen for operation. This controlling system are Taiwan Delta Brand.

  • The sensors of the machine are Japan imported brand, Keyence, High speed and accurate working.

  • The machine comes with automatic alarming system when lack of label, breaking label, lack of ribbon.

  • Whole body stainless steel 304 with T6 Aluminum Alloy meets GMP Standard.

  • The position of height and backwards or forwards are adjustable.


Main Technical Data:

Driver Motor:

Stepping motor

Operation:

Right or left

Running speed:
50-120 bottles/min
Packaging Range: Ф 15 - Ф diameter 100 mm

Height 25-350mm

Label size width 10-150mm length 15-200mm

Maximum diameter of label:

Ф 300mm

Coil diameter:

Ф 75mm label

Weight:
300kg

Power supply:

AC220V  0.5Kw 60HZ

Overall Size:

1850*730*1400mm



Configuration:


Name

Manufacturer

Electric machinery

Panasonic Electric

Photoelectric sensor

Germany Sick

Pneumatic components

Airtec International Group

Leakage protection

Schneider

Switch button

Taiwan MeanWell

Human interface

Taiwan Delta


Product Picture

SED-200YT Automatic Round Bottle Labeling Machine 1SED-200YT Automatic Round Bottle Labeling Machine 2

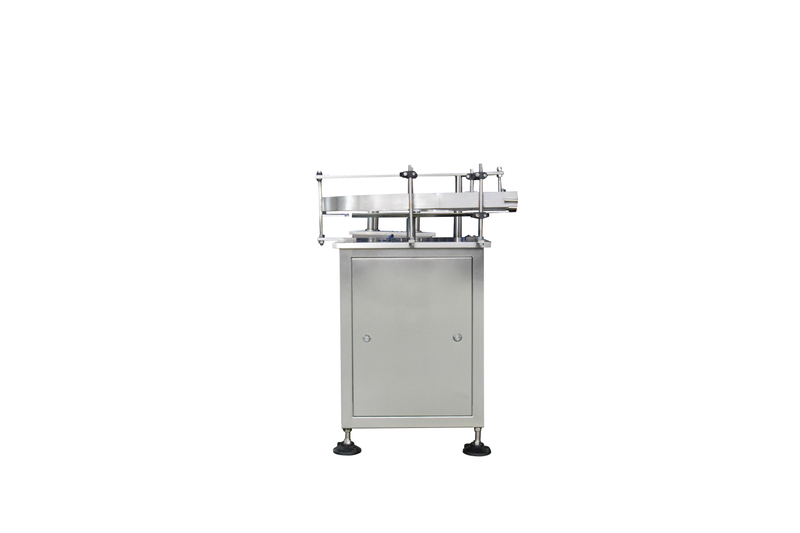

UBM-900ZP Turn Table

SED-900ZP Turn Table

Frame

• All Stainless Steel Construction to meet the GMP Standard


Specifications

• Feeding disk speed less control system

• Diameter of disk: option 900mm

• Turning disk motor power: 200W

• Variable Speed Control for motor


Capacity

• Production Capacity: 20-80 bottles per min.

• Production Capacity Speed can be adjusted.


Dimensions & Weight

• Machine dimension (L x W x H): 900 x 900x 1000mm

• Main Machine weight:  100kg


Power Source

• AC220V, 50Hz, 1 Phase
