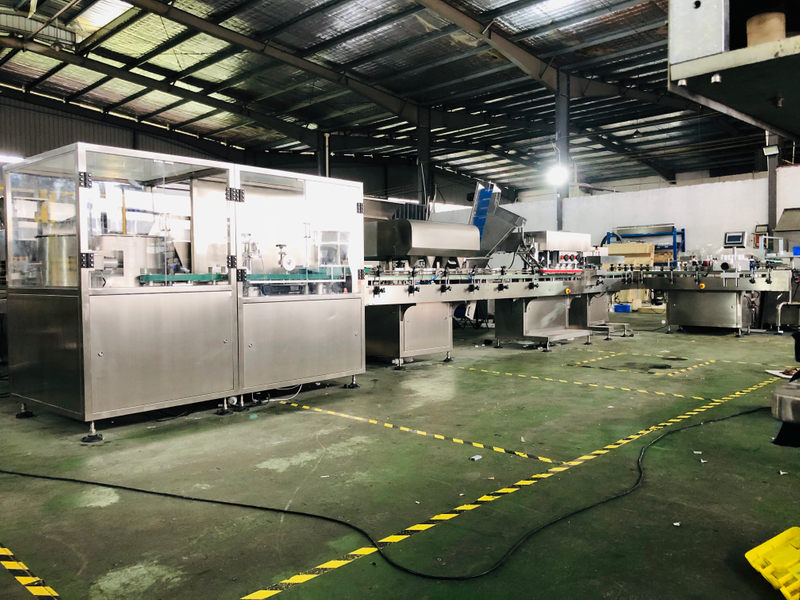

Professional Automatic UNM-32SX Capsule And Tablet Counting Line

Capsule And Tablet Counting Line is used for counting and filling capsules in poly bags and rigid containers. This line is the most complete, affordable, and innovative capsule and tablet counting line in the marketplace. We fully integrated this line to include from Turn Table, Automatic Electronic Counting Machine, Automatic Desiccant Inserting Machine, Linear Bottle Capping Machine, Induction Sealing Machine, Automatic Round Bottle Labeling Machine.
Availability:
  • Urban

Introduction

Item  Basic Machines
1

UBM-650ZP Turn Table

2

UBM-32S Automatic Electronic Counting Machine

3

UBM-GS Automatic Desiccant Inserting Machine

4

UBM-CG Linear Bottle Capping Machine

5

UBM-LF Induction Sealing Machine

6

UBM-200YT Automatic Round Bottle Labeling Machine


Product Details

1


UBM-650ZP Turn Table

SED-650ZP Turn Table

Frame

• All Stainless Steel Construction to meet the GMP Standard

Specifications

• Feeding disk speed less control system

• Diameter of disk: option 600mm

• Turning disk motor power: 200W

• Variable Speed Control for motor

Capacity

• Production Capacity: 60-120 bottles per min.

• Production Capacity Speed can be adjusted.

Dimensions & Weight

• Machine dimension (L x W x H): 1400 x 600x 1200mm

• Main Machine weight:  100kg

Power Source

• AC220V, 50Hz, 1 Phase



UBM-32S Automatic Electronic Counting Machine

SED-32S Automatic Electronic Counting Machine

SED-32 Automatic Electronic counting machine is special for counting tablets, soft gelatin, hard capsule and chewing gums, etc. This machine adopts 32 sets imported counting sensor for counting with 32 Guiding Way and two head. The advantage of the machine is no need change mould when you change the counting object, only adjusting the counting table height by Easy Adjust wheel. The machine comes with Touch screen operation and PLC Control for convenient running.


Main Technical Data:

Model Name

UBM-32S

Application


1. Filled capsule(00-5#)

2. Soft Gelatin capsule

3. Ф3-22mm tablet

4. Ф3-20mm pills

other solid object under machine range

Hopper Volume

60L

Capacity

20-100 bottles/min

Filling Quantity

2-9999pcs/bottle (adjustable)

Compressed air

0.6Mpa 5L/min

Power

220V/50HZ   1.3KW

Machine Weight

550kg

Machine Size L × W × H (mm)

2000 × 1300 × 1700



Configuration:
Name

Manufacturer

Electric machinery

Maili Electric

Photoelectric sensor Germany Sick

Counting photoelectric system

SED
Pneumatic components

Airtec International Group

Leakage protection

CHINT China

Switch button

Taiwan MeanWell

Human interface

Siemens


Product Picture

SED-32S Automatic Electronic Counting Machine 1

Photoelectric eye will judge whether there is bottle at the feeding mouth (it does not work without bottle)

SED-32S Automatic Electronic Counting Machine 2

The material moves orderly to the medicine chamber through the vibration of the corrugated plate

SED-16S Automatic Electronic Counting Machine 4

Touch screen control

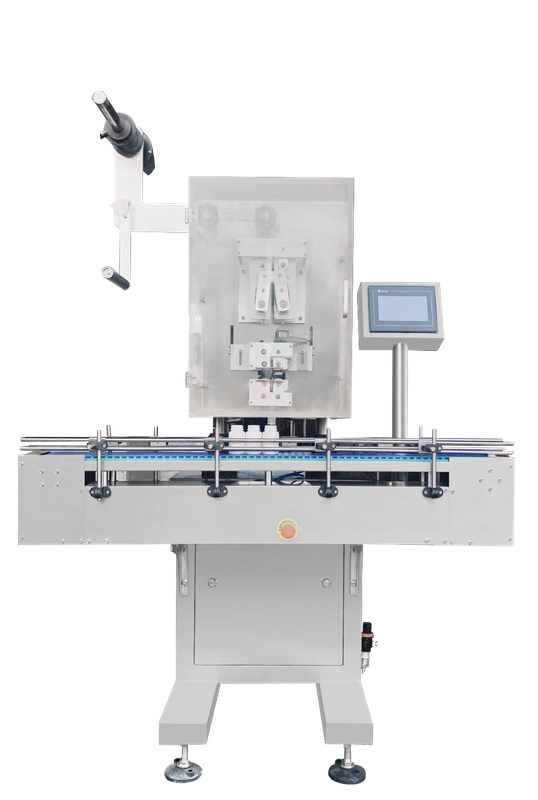

UBM-GS Automatic Desiccant Inserting Machine

SED-GS Automatic Desiccant Inserting Machine

Tablet and capsule are easy to go moist, so it is necessary to put the desiccant into the container to keep medicine away from moisture in order to improve reliability of guarantee period. The machine applies automatic controlling system to take the place of the previous manual operation. The machine can automatically cut the belted desiccant and insert the desiccant bag into the container accurately and speedily. It is available for bottles and pots made of different materials. It features double-lane photoelectric positioning, intelligent feeding length controlling and automatic adjustment of accumulated length error. The electronic controlling system ensures the machine starts when bottles reach working position and stops when bottles are insufficient automatically. The product conforms to the requirements of GMP completely.


Main Technical Data:

Bottle Size

20-300ml

Output

40-100bottles/min

Power Supply

220V 60Hz

Power

0.85Kw

Overall Dimensions

1150*800*1900mm



Configuration:


Name

Manufacturer

Electric machinery

Maili Electric

Photoelectric sensor

Germany Sick

Pneumatic components

Airtec International Group

Leakage protection

CHINT China

Switch button

Taiwan MeanWell

Human interface

Siemens


Product Picture


SED-GS Automatic Desiccant Inserting Machine 1SED-GS Automatic Desiccant Inserting Machine 2

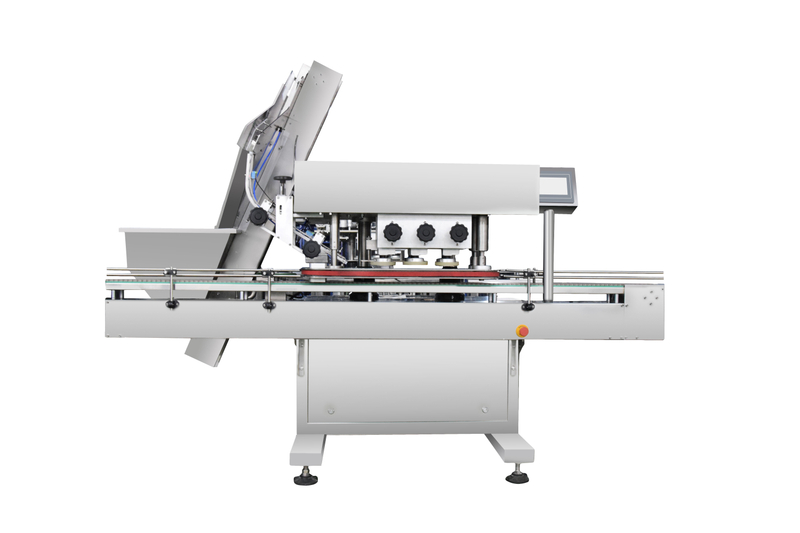

UBM-CG Linear Bottle Capping Machine

SED-CG Linear Bottle Capping Machine

The machine adopts three groups of friction rollers to screw caps. Screwed caps are not easily damaged by the screwing unit. And if caps are not screwed tightly or tilted, they will be found and rejected automatically. The screw capper is available for various bottles and its changeover is fast and easy. The machine overthrows conventional means of arranging cap by electromagnetic oscillation but arranges caps pneumatically to avoid noise pollution and reduce electric power consumption. It also provides international brand PLC controls, variable frequency controls and photoelectric controls. The machine is incorporated with the device of arranging and lifting cap and a big capacity of cap hopper, so less cap feeding times reduces labor intensity. Generally operators can grasp fluently. The machine conforms to the requirements of GMP completely.

Feature:

  • Strong compatibility, suitable for various cap and bottle types;

  • A pair of cap-dropping and cap-wearing devices are suitable for bottle caps of various specifications;

  • The capping torque is controlled to ensure the quality of capping (optional);

  • Swing type screw capping wheel, the screwing force is more suitable, greatly reducing the wear of the capping wheel;

  • It has multiple inspection and alarm control functions such as no bottle, no cover, no work, crooked cover, reverse cover, no aluminum foil detection and rejection, fault self-check, etc., to ensure continuity and accuracy;

Fully automatic operation, intelligent joint control with upper and lower processes, good coordination, no need for special personnel to operate, saving labor;


Main Technical Data:

Size of bottles:

20-500 ml

Output:

50-150 bottles/min

Diameter of caps:

φ20-65 mm

Diameter of bottles:

φ20-120 mm

Power supply:

220V 60Hz

Power:

1.5KW

Overall dimensions:

2160*1050*1900 mm

Weight

650KG



Configuration:


Name

Manufacturer

Electric machinery

Maili Electric

Photoelectric sensor

Germany Sick

Pneumatic components

Airtec International Group

Leakage protection

CHINT China

Switch button

Taiwan MeanWell

Human interface

Siemens


Product Picture


SED-CG Linear Bottle Capping Machine 2SED-CG Linear Bottle Capping Machine 1

The material drives the cap to rotate through the cap roller of the bottle clamping belt to tighten the cap

SED-CG Linear Bottle Capping Machine 3

The cap system will place the cap on the bottle in an orderly way

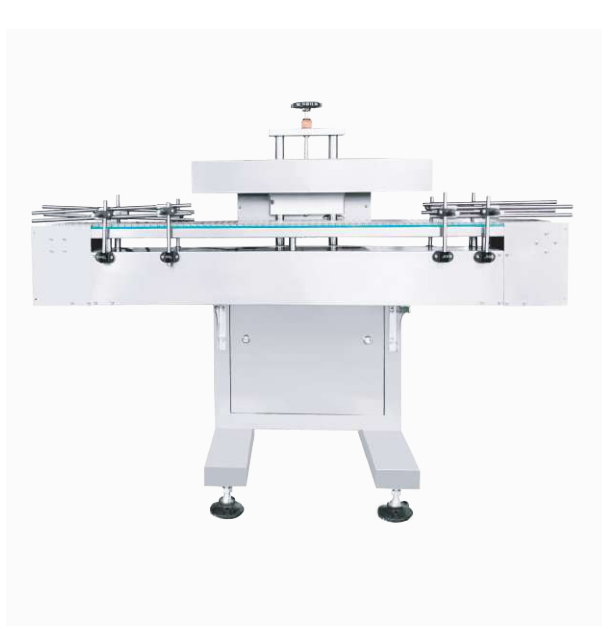

UBM-LF Induction Sealing Machine

SED-LF Induction Sealing Machine

Application:

This machine is suitable for sealing plastic bottles and glass bottles of pesticides, medicines, foods, cosmetics, oils, etc.






Features:


1. The unique tunnel design of the sensor head, the sealing speed is fast, even the special-shaped bottle with sharp mouth and high cap can be sealed perfectly

2. The sensor head can be rotated (this function must be customized), suitable for the sealing of bottles of different sizes and calibers, one machine with multiple uses, saving costs

3. The height of the sensor head is adjustable, which can adapt to the sealing and packaging of containers of various heights

4. The induction head uses thickened copper pipes, which can be used with ordinary tap water, and the built-in water circulation system reduces costs

5. The sealing process is fast and effective, and the bottle mouth can be effectively sealed even if there is a small amount of water or residual liquid

6. The new module intelligent design, moisture-proof, anti-corrosion, dust-proof, anti-electromagnetic interference. Long service life, extremely low failure rate, simple maintenance

7. Unique alarm function, the water tank is short of water, the water temperature is too high, and it can automatically alarm when there is a fault

8. Stainless steel material, in line with GMP requirements

9. The host generator adopts the latest imported transistors and is controlled by a CPU module

10. All functional parts on the panel are clearly marked and easy to operate

11. Movable, convenient and flexible to use with the production line, integrated design of the host, easy to install and use.

12. The induction head and host of the same model can be interchanged and used, which effectively reduces the cost of use. Passed CE certification


Main Technical Data:
Model: SR-6000A
Suitable bottle diameter: 20mm-130mm (customizable)
Adjustable stroke of the sealing head (height from the ground): 1040mm-1430mm (customizable)
Can meet the line speed: 0-25m/min

Sealing speed:

0-300 bottles/min

Maximum power:

4000W

Power supply:

220V 60Hz

Machine size ( L*W*H):

500mm*500mm*1090mm

Machine Net Weight:

75kg

Packaged Size:

1170mm*610mm*570mm

920mm*410mm*270mm

Package Weight:

95KG

Note: The size and weight of the machine are subject to the actual factory packaging.

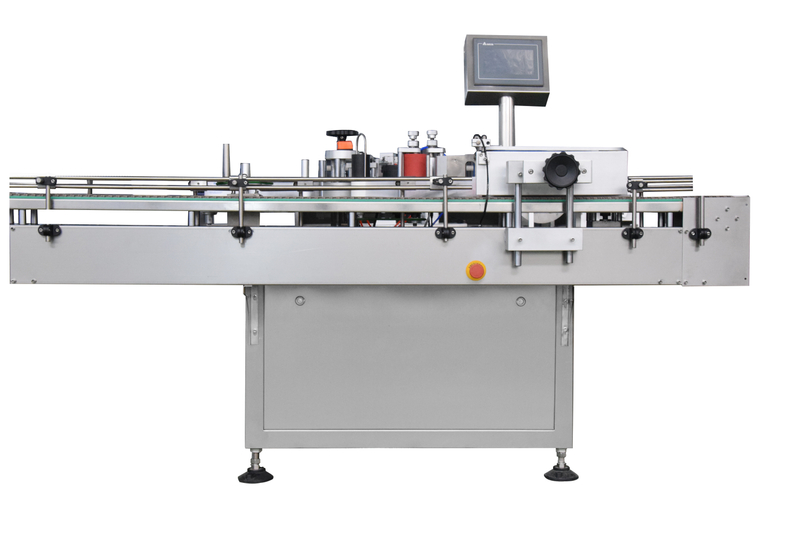

UBM-200YT Automatic Round Bottle Labeling Machine

SED-200YT Automatic Round Bottle Labeling Machine
SED-200YT model vertical type round bottle Round Bottle Labeling machine, in order to achieve rationalization of production target and design. The machine comes with automatic labeling process, simple operation, high speed running, accurate labeling position, beautiful labeling. The machine can be used for pharmaceutical, chemical and foodstuff Industry labeling.

Working Principle:

Put the bottles into the conveyor system (or Auto Bottle Ordering Machine is optional), the conveyor will transport the bottles to labeling station. There is automatic sensor equipped on the machine will sense the passed bottle and feedback to PLC. The PLC gets the signal, then feedback to Step Motor, the step motor supplies the Label to Rotation Pressing Roller which makes the labeling process.

Main Feature:


  • The machine adopts step motor for driving, high accuracy working. (Servo Motor is also an optional)

  • PLC control with Touch screen for operation. This controlling system are Taiwan Delta Brand.

  • The sensors of the machine are Japan imported brand, Keyence, High speed and accurate working.

  • The machine comes with automatic alarming system when lack of label, breaking label, lack of ribbon.

  • Whole body stainless steel 304 with T6 Aluminum Alloy meets GMP Standard.

  • The position of height and backwards or forwards are adjustable.



Main Technical Data:

Driver Motor:

Stepping motor

Operation:

Right or left

Running speed:

50-120 bottles/min

Packaging Range:


Ф 15 - Ф diameter 100 mm

Height 25-350mm

Label size width 10-150mm length 15-200mm

Maximum diameter of label:

Ф 300mm

Coil diameter:

Ф 75mm label

Weight:

300kg

Power supply:

AC220V  0.5Kw 60HZ

Overall Size:

1850*730*1400mm

*Ribbon Coding machine

HP 260Q



Configuration:
Name

Manufacturer

Electric machinery

Maili Electric

Photoelectric sensor

Germany Sick

Pneumatic components

Airtec International Group

Leakage protection

CHINT China

Switch button

Taiwan MeanWell

Human interface

Taiwan Delta


Product Picture



SED-200YT Automatic Round Bottle Labeling Machine 1SED-200YT Automatic Round Bottle Labeling Machine 2


SED-200YT Automatic Round Bottle Labeling Machine 3

Coding Machine for printing Bach Number
