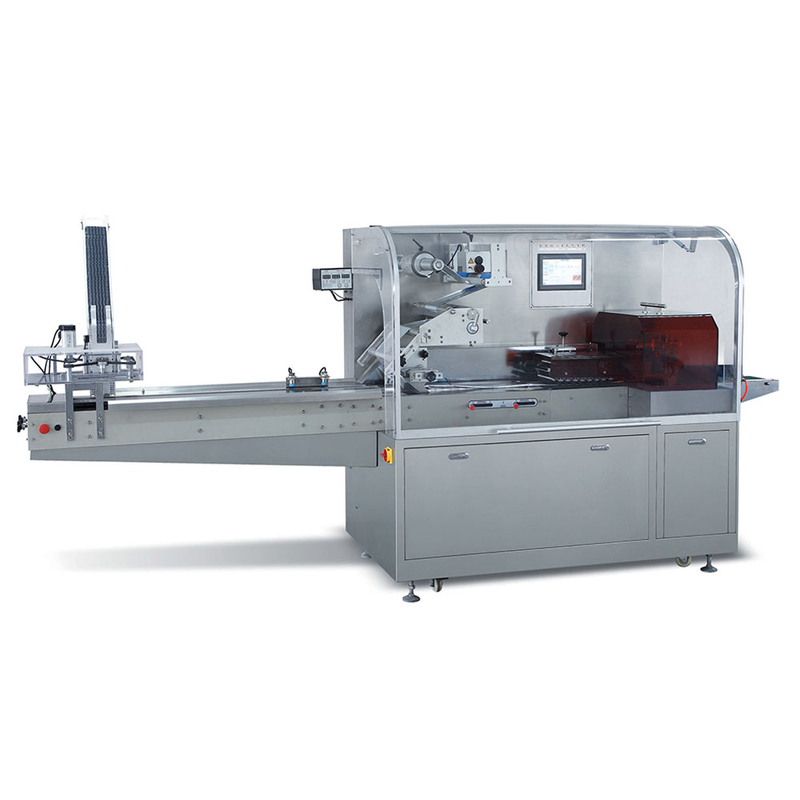

Reciprocating Automatic Packing Machine

Professional for packing capsule, tablet, and similar ALU/PVC blister into pillow bag.
Availability:
  • UBM-RFW-380

  • Urban

Introduction

Main performance and structure features:


• Host servo speed control: host imported servo motor speed can be suitable for a variety of packaging materials.

• Programmable control: PLC programmable controller, so that the whole of the program.

• Touch screen: the machine speed, bag length set, actual bag length, packing output will be displayed on the touch screen at a glance.

• Automatic fault diagnosis: automatic fault diagnostic display at a glance.

• Electric eye tracking: automatic tracking, benchmarking so fast and accurate.

• Automatic temperature three groups: each of the heating parts, temperature

• controller automatic temperature control are used to improve the sealing quality. Adjustable bag: suitable for a variety of packaging materials grid.

• Automatic folding device: aluminum capsule version of the drug can be overlapped height 20-55mm hemming packaging.

• Under the feeder with servo: plate number plate can set 1-5.

Reciprocating Automatic Packing Machine

Specifications


Model

UBM-RFW-380

Production speed

40-130 Bags/min

Bag size

(L)80-160mm (W)40-80mm (H)1-60mm

Expand the width of packaging film

80-400mm

Packaging materials

Aluminum film, Aluminized film, Composite film, etc.

Packaging material thickness

3-7

Rated frequency

50Hz

Air Compressor

>0.15m³/min

Rated voltage

220V

Total power

3.5kw

Weight

1100kg

Dimensions

3700×970×1700mm (L×W×H)


Our Service

  • Through years of experience, Urban provides several services which cover almost all requirements of clients. These services include production, design, inspection, packaging, shipment, product recommendation, after-sales service,  and multiple client solutions.


  • We have a good relationship with more than four international shipping companies who have rich experiences in handling different kinds of shipping ways and also the customs declarations and clearances. They all have good shipping services to save you time and costs.


  • We have a professional international technical team. To provide you with after-sales service and guidance.

After-sale Service

We will always be responsible for the machine you purchased. Nearly 10 professional after-sales personnel provide global technical services. In this way, we also provide professional services, such as guide installation services, equipment commissioning and operation services, maintenance services and equipment parts replacement. Ensure the quality of your products, while eliminating your worries.

  1. 1. The whole machine is guaranteed for 1 years.

  2. 2. Provide professional machine operation and maintenance guidelines.

  3. 4. Provide 24-hour online professional technical services .
