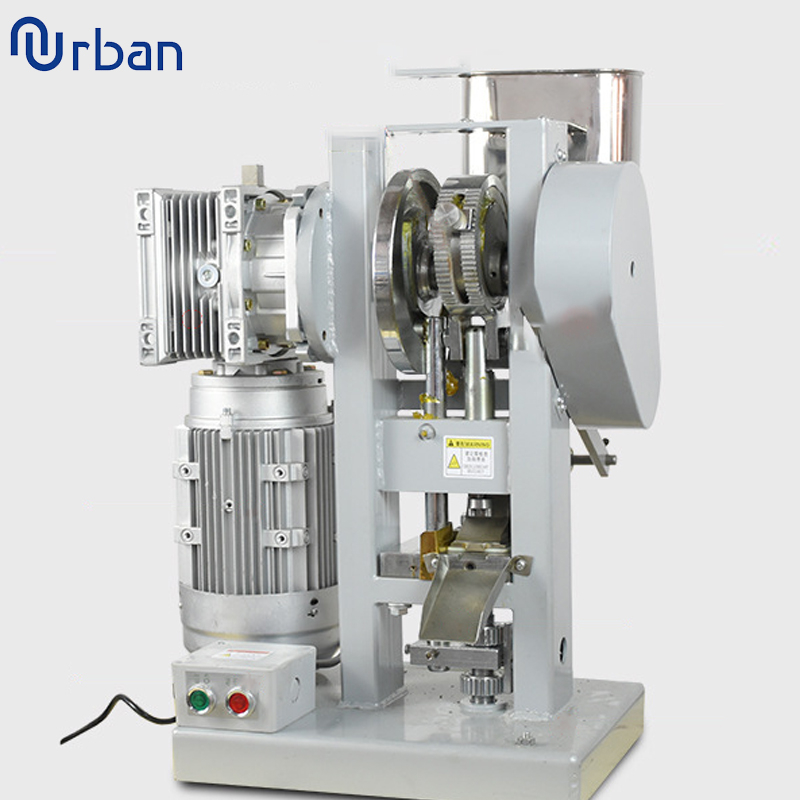

UBM-DP-60A High Quality Electric Single Punch Tablet Machine

UBM-DP-60A electric single punch tablet press (new) is an experimental tablet press suitable for laboratories in pharmaceutical, chemical, food and metallurgical enterprises. It can press various types of powder and granular raw materials into round or special-shaped tablets.
Availability:
  • UBM-DP-60A
  • Urban

UBM-DP-60A High Quality Electric Single Punch Tablet Machine


Introduction


UBM-DP-60A electric single punch tablet press (new) is an experimental tablet press suitable for laboratories in pharmaceutical, chemical, food and metallurgical enterprises. It can press various types of powder and granular raw materials into round or special-shaped tablets. It can be mainly used for experimental products such as hospital preparation rooms, scientific research institutions, factory laboratories, and pharmaceuticals. Because the experimental tablet press uses very few raw materials, beautiful appearance and small volume, it is also an ideal model for small-scale production in small pharmaceutical, chemical, food, metallurgy and other enterprises. It has high material utilization rate, reasonable structure, convenient operation, small volume, high pressure, low noise and small difference in tablet weight. The filling depth of materials and the thickness of pressed tablets can be continuously adjusted, and various functional indicators have reached the advanced level. The machine adopts a number of novel designs in the design process, thus ensuring a safer and more standardized production process. This machine is only equipped with one pair of punching dies, the filling depth and pressing thickness of the material can be adjusted, that is, the weight, thickness and hardness of the product can be adjusted, and different products can be pressed by changing different dies.

c2aaaabc36afa57c4e183dec06141a6467bdcb838946b45380765f1d820f92


Main Technical parameters

Tablet pressure (Kn)

0-60

Tablet diameter (mm)

5-25
Filling depth (mm) 0-18

Tablet thickness (mm)

0-8

Production capacity (pcs/h)

3000
Motor power (Kw) 1.5
Dimensions (mm) 470*420*680
Packaging size (mm) 600*600*890
Host weight (Kg) 85

152b35ba05e45d989c5ee58c1fd308f

Product Display


580c228d087cc53d373e9250a891d8c

Whole Machine Display


Suitable for pharmaceutical chemical and food

0c24b3f4e6b55ab2e39de7ee0f8fe71

Feeder Display


Push-type feeder design, forced feeding, large diameter feeding more smoothly

40b7b75a3a60ced14e606062526c6a4

Pressure Regulation


Knurled screw to adjust pressure

Simple and convenient operation





Our Service

  • Through years of experience, Urban provides several services which cover almost all requirements of clients. These services include production, design, inspection, packaging, shipment, product recommendation, after-sales service,  and multiple client solutions.


  • We can supply mаsk raw materials for you if you can't buy materials from in your local market.


  • We have a good relationship with more than four international shipping companies who have rich experiences in handling different kinds of shipping ways and also the customs declarations and clearances. They all have good shipping services to save you time and costs.


  • We have a professional international technical team. To provide you with after-sales service and guidance.

After-sale Service

We will always be responsible for the machine you purchased. Nearly 10 professional after-sales personnel provide global technical services. In this way, we also provide professional services, such as guide installation services, equipment commissioning and operation services, maintenance services and equipment parts replacement. Ensure the quality of your products, while eliminating your worries.

  1. 1. The whole machine is guaranteed for 1 years.

  2. 2. Provide professional machine operation and maintenance guidelines.

  3. 4. Provide 24-hour online professional technical services .
