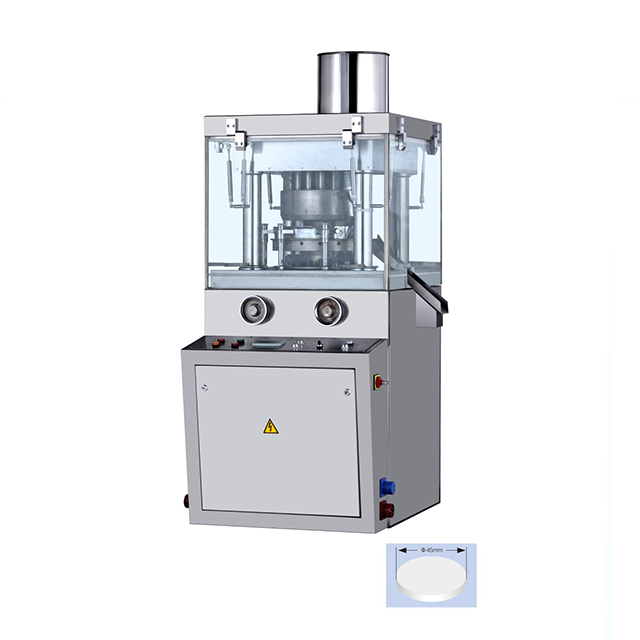

ZP11/ZP18 Rotary Tablet Press Machine

ZP11/ZP18 Rotary Tablet Press is used in electronic industry, food industry, chemical industry, articles of everyday use industry and pharmaceutical industry, for pressing various granular raw materials into special shaped tablets. Such as electronic element, camphor ball, catalyst and powder metallurgy.
  • ZP11/ZP18
  • Urban

Introduction


1. This machine is the single-pressing type equipped with 11 (18) sets of punch dies which are mounted on the workbench and reciprocate upward and downward along the curved guide rail to realize the actions needed for tablet pressing.

2. The operational flow of this machine is: material feeding, filling, tablet pressing, and tablet exporting, continuously.

3. This machine is powered by motors. Through frequency-converting speed adjustment and triangular belt wheel, the work-gear case can be driven, causing the main axle and turret to move clockwise.

4. Rolling friction is adopted in the pressing wheel whose working pressure can be adjusted based on different needs. .Buffer device is also available to prevent the machine from being damaged due to mechanical impact and to elongate the machine’s service life.

5. Periphery of the machine’s working chamber is closed to meet the GMP requirements. Powder-absorbing orifice is installed on the bench surface to purify the working chamber.

6. Thickness of the pressed tablets, working pressure, filling amount, and rotational speed of the workbench are all adjustable. Detailed operations are directed on the operational panel to realize convenient adjustment and easy operation.

7. Material-feeding device is composed of hopper and moon-shaped grate material feeder. The hopper is mounted at top of the machine and can be dismounted. Large-amount single-variety production does not necessitate changing configurations of the machine’s parts. The materials can be directly inputted into the feeder by pipes from the machine’s top, making the operation very convenient.


Specifications

Model

ZP11

ZP18

Number of Stations

11

18

Max Main Pressure (KN)

100

Max Tablet Diameter (mm)

45

30

Max Filling Depth (mm)

45

30

Max Tablet Thickness (mm)

20

12

Max Turret Speed (r/min)

12

20

Max Production Capacity (pcs/h)

7920

21600

Motor Power (kw)

5.5

Overall Size (mm)

1100×1000×1900

Machine Weight (kg)

2000


Our Service

  • Through years of experience, Urban provides several services which cover almost all requirements of clients. These services include production, design, inspection, packaging, shipment, product recommendation, after-sales service,  and multiple client solutions.


  • We can supply mаsk raw materials for you if you can't buy materials from in your local market.


  • We have a good relationship with more than four international shipping companies who have rich experiences in handling different kinds of shipping ways and also the customs declarations and clearances. They all have good shipping services to save you time and costs.


  • We have a professional international technical team. To provide you with after-sales service and guidance.

After-sale Service

We will always be responsible for the machine you purchased. Nearly 10 professional after-sales personnel provide global technical services. In this way, we also provide professional services, such as guide installation services, equipment commissioning and operation services, maintenance services and equipment parts replacement. Ensure the quality of your products, while eliminating your worries.

  1. 1. The whole machine is guaranteed for 1 years.

  2. 2. Provide professional machine operation and maintenance guidelines.

  3. 4. Provide 24-hour online professional technical services .


About Us

Urban was founded in 2003, is a professional engaged in the research, development, sale and service of mask production machine, melt-blown cloth production machine, protective clothing production machine, liquid capsule filling machine and other medical production equipment and pharmaceutical machinery.


Company has won a member of the Chinese pharmaceutical equipment industry small and mid sized enterprise of Zhejiang province, wenzhou science and technology innovation oriented enterprises, through the 1509001 quality management system certification, eu CE mark certification, product has self-supported import and export right, the company existing authorized more than 20 patents, among them 2 product invention patents, also has many sets of high-end machining center equipment and testing equipment, provide quality assurance for the quality of products.
