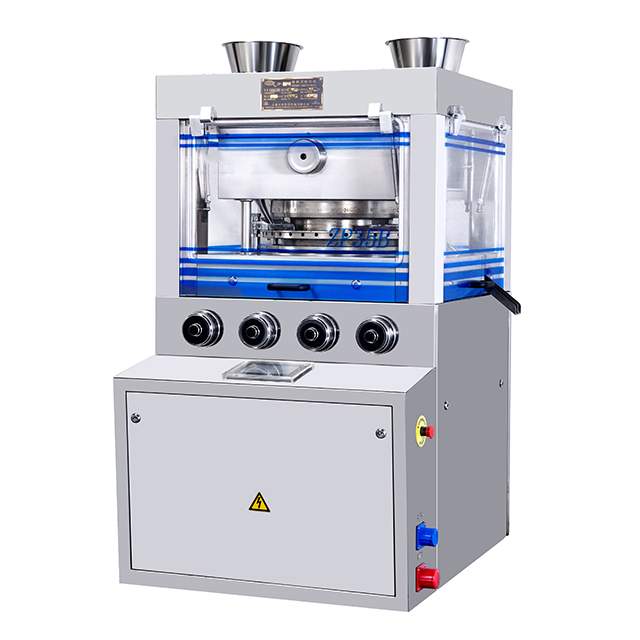

ZP35B/ZP37B/ZP39i
Urban
| 1.Made of stainless steel, the housing is fully closed. The surface of the rotary turret is covered with a hardened layer so that the turret surface is wear resistant. The machine conforms to GMP requirements. 2.Adopt transparent windows, tableting state can be observed clearly. The windows can be opened, cleaning and maintenance is easy. 3. PLC and touch screen control, speed adjustable by frequency inverter, all the running parameter can be set and shown. 4.With high main-pressure and pre-pressure, extending the pressing time and making good quality tablets. 5. Hydraulic overload protection device is equipped, the machine can stop automatically in case of overpressure to protect the punch pins from being damaged. 6.ZP39i is upgraded model from ZP35B, its output is increased about 15% more than ZP35B. 7.Force feeder is optional on the machine. |
| |
Specifications
Model | ZP39i | ZP37B | ZP35B |
Number of Stations | 39 | 37 | 35 |
Max Main Pressure (KN) | 80 | ||
| Max Pre-Pressure (KN) | 10 | ||
Max Tablet Diameter (mm) | Round tablet：13 Irregular tablet：16 | ||
Max Filling Depth (mm) | 15 | ||
Max Tablet Thickness (mm) | 6 | ||
Max Turret Speed (r/min) | 36 | ||
Max Production Capacity (pcs/h) | 168000 | 160000 | 151200 |
Motor Power (kw) | 4 | ||
Overall Size (mm) | 910×1120×1650 | ||
Machine Weight (kg) | 2000 | ||
Detail
Our Service
Through years of experience, Urban provides several services which cover almost all requirements of clients. These services include production, design, inspection, packaging, shipment, product recommendation, after-sales service, and multiple client solutions.
We can supply mаsk raw materials for you if you can't buy materials from in your local market.
We have a good relationship with more than four international shipping companies who have rich experiences in handling different kinds of shipping ways and also the customs declarations and clearances. They all have good shipping services to save you time and costs.
We have a professional international technical team. To provide you with after-sales service and guidance.
After-sale Service
We will always be responsible for the machine you purchased. Nearly 10 professional after-sales personnel provide global technical services. In this way, we also provide professional services, such as guide installation services, equipment commissioning and operation services, maintenance services and equipment parts replacement. Ensure the quality of your products, while eliminating your worries.
1. The whole machine is guaranteed for 1 years.
2. Provide professional machine operation and maintenance guidelines.
4. Provide 24-hour online professional technical services .
