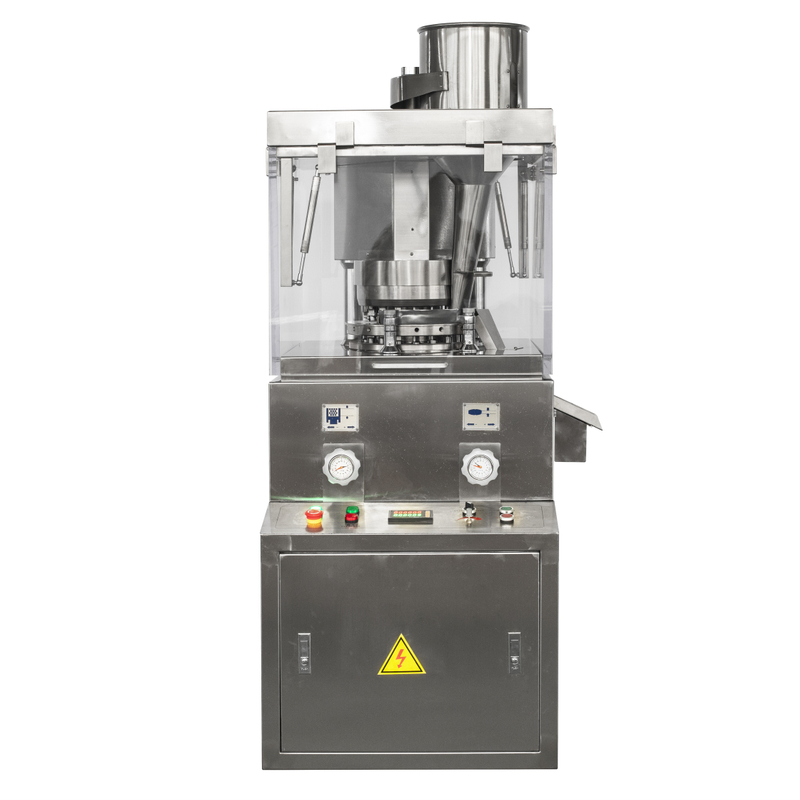

ZPW-17 High Quality Fully Automatic Rotary Tablet Press Machine

This machine is double-pressing automatically rotary continuous tablet pressing. It suitable for industries, such as Chemical, Foodstuff, Electronic, Daily Chemical, Powder Metallurgy, etc.
Availability:
  • ZPW-17
  • Urban

ZPW-17 High Quality Fully Automatic Rotary Tablet Press Machine



Features

  • It can make all kinds of abnormity shapes, double color tablet (with two sides printing). Specially suitable for big tablet, machine is made of stainless steel, the surface of cover treatment with polished, avoid to Cross Pollution which meet with the GMP standard.

  • It is equipped with Plex-glass cover for pressing observation. The cover can be opened which is easy for cleaning and maintenance.

  • It adopts import frequency timing, and the electromagnetism cluth at same time.

  • The Hydraulic Pressure system keep working pressure steadily, when the pressure is overloading, it were stopped automatically.

  • The Driving System is in the oil box of the machine, running with oil, easy to radiate and durable.

  • It is equipped with Dust Coolector as well, which avoid the dust emission, and recycle to save the dust.

zpw-17冲 (3)


Main Technical parameters

Die Amount
19 stations
Max. Pressure 100 KN
Max. Filling Depth 22 mm
Max. Pressure Diameter Irregular 30×30 Normal 40mm
Max. Tablet Thickness 10 mm
RPM 10-20 (r/min)
Working Capacity 23000-46000 (P/h)
Power supply 4KW
Overall Dimension 1300×1200×1750 (mm)
Weight 2000 kg


Product Details

zpw-17冲 (3) zpw-17冲 (4) zpw-17冲 (1)
zpw-17冲 (5) zpw-17冲 (8) zpw-17冲 (7)
zpw-17冲 (6) zpw-17冲 (10) zpw-17冲 (9)



Our Service

  • Through years of experience, Urban provides several services which cover almost all requirements of clients. These services include production, design, inspection, packaging, shipment, product recommendation, after-sales service,  and multiple client solutions.


  • We can supply mаsk raw materials for you if you can't buy materials from in your local market.


  • We have a good relationship with more than four international shipping companies who have rich experiences in handling different kinds of shipping ways and also the customs declarations and clearances. They all have good shipping services to save you time and costs.


  • We have a professional international technical team. To provide you with after-sales service and guidance.

After-sale Service

We will always be responsible for the machine you purchased. Nearly 10 professional after-sales personnel provide global technical services. In this way, we also provide professional services, such as guide installation services, equipment commissioning and operation services, maintenance services and equipment parts replacement. Ensure the quality of your products, while eliminating your worries.

  1. 1. The whole machine is guaranteed for 1 years.

  2. 2. Provide professional machine operation and maintenance guidelines.

  3. 4. Provide 24-hour online professional technical services .
