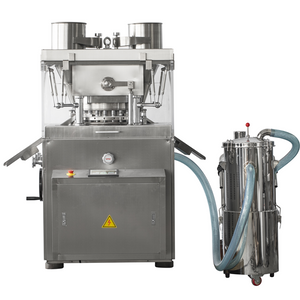

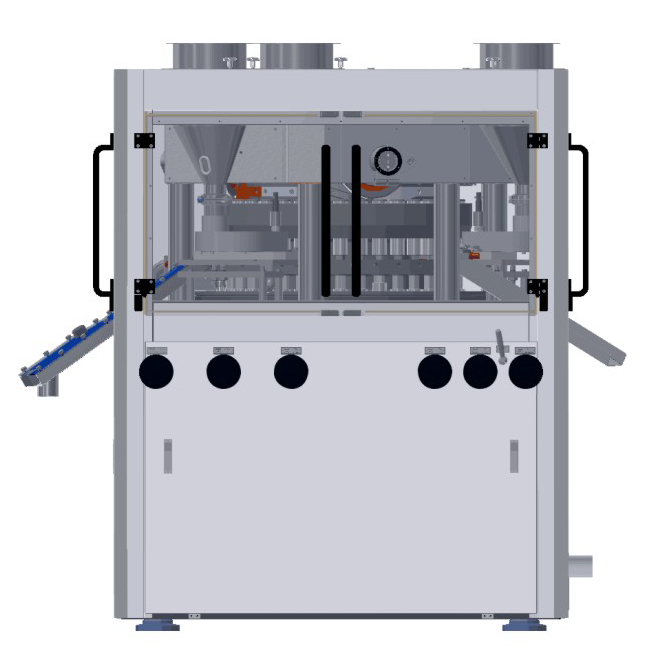

ZPW-800 High Speed Automatic Series Multifunctional Tablet Press

This machine is a multifunctional rotary press, which can press large-size tablets and difficult forming materials, such as milk tablets, effervesvent tablets, calcium tablets, dishwashing tablets, salt tablets, etc. The machine can be used to press round shape, ring shape, double color and three color tablets. It can be widely used in food industry, chemical industry and electronic industries.
Availability:
  • ZPW-800

  • Urban

ZPW-800 High Speed Automatic Series Multifunctional Tablet Press



Features

  • Using touch screen and PLC control, can display and control a variety of operating parameters.

  • It adopts 22KW high-power motor and large torque reducer, with high working pressure and strong bearing capacity of machine structure.

  • Pressure sensors are installed on the three groups of pressure wheels, which can display the actual working pressure and realize over-pressure shutdown protection.

  • Automatic lubrication system is adopted to fully lubricate the pressure wheel, track and punches, so as to extend the service life and reduce the parts wear.

  • Equipped with electromagnetic clutch, improve the starting torque of the machine.

  • After a few changes, the machine can be turned into three outlets, single-layer pressing, so the working capacity is increased three times. (optional function)

  • The machine can be equipped with force feeder device. (optional function)

  • The machine can be changed into no-handwheel configuration to realize automatic adjustment of tablet thickness and weight. (optional-function)

800 压三色洗完块等 欧洲主推



Main Technical parameters

Model ZPW-27
ZPW-37
Number of Stations 27 37
Max Main Pressure 200 200
Max Tablet Diameter (mm)

59 (Integral punch)

45 (Split punch)

45 (Integral punch)

38 (Split punch)

Max Filling Depth (mm) 45 45
Max Tablet Thickness (mm) 20 20
Maximum Turntable Speed (r/min) 15 15
Max Production Capacity (pcs/h)

24300 (Three layers)

72900 (Monolayer)

33300 (Three layers)

99900 (Monolayer)

Punch Length (mm) 220 220
Punch Diameter (mm) 60
50
Punch Diameter of Die (mm) 85 60
Height of Die (mm) 50 50
Motor Power (kw) 22 22
Overall Size (mm) 1930×1800×2020 1930×1800×2020
Machine Weight (kg) 6500 6500


Product Details

ZPW-800 High Speed Automatic Series Multifunctional Tablet Press ZPW-800 High Speed Automatic Series Multifunctional Tablet Press ZPW-800 High Speed Automatic Series Multifunctional Tablet Press
ZPW-800 High Speed Automatic Series Multifunctional Tablet Press ZPW-800 High Speed Automatic Series Multifunctional Tablet Press ZPW-800 High Speed Automatic Series Multifunctional Tablet Press


Our Service

  • Through years of experience, Urban provides several services which cover almost all requirements of clients. These services include production, design, inspection, packaging, shipment, product recommendation, after-sales service,  and multiple client solutions.


  • We can supply mаsk raw materials for you if you can't buy materials from in your local market.


  • We have a good relationship with more than four international shipping companies who have rich experiences in handling different kinds of shipping ways and also the customs declarations and clearances. They all have good shipping services to save you time and costs.


  • We have a professional international technical team. To provide you with after-sales service and guidance.

After-sale Service

We will always be responsible for the machine you purchased. Nearly 10 professional after-sales personnel provide global technical services. In this way, we also provide professional services, such as guide installation services, equipment commissioning and operation services, maintenance services and equipment parts replacement. Ensure the quality of your products, while eliminating your worries.

  1. 1. The whole machine is guaranteed for 1 years.

  2. 2. Provide professional machine operation and maintenance guidelines.

  3. 4. Provide 24-hour online professional technical services .
