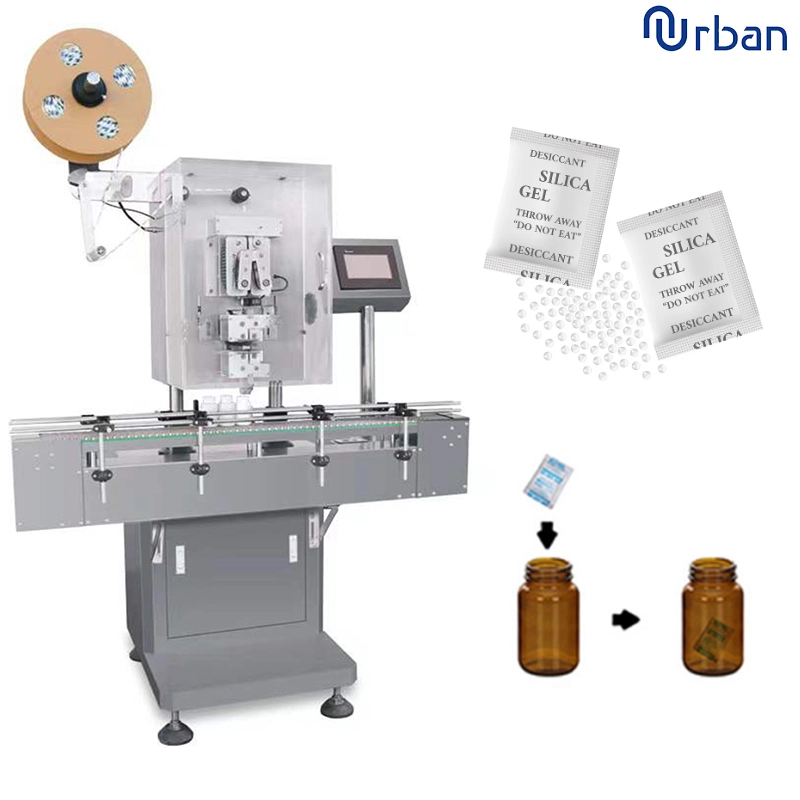

Professional Manufacture Fully Automatic Desiccant Inserting Machine Desiccant Filling Machine

Automatic Desiccant Sachet Filling Machine works through color ribbon sensor, conveyor belt driven by stepper motor, cutting device, position-fixed cylinder and fibre optic sensor.

This machine adopts high-durability knife edge, and the cutting is accurate. It has advantageous features such as: easy to adjust, clean, maintain with low operation and maintenance cost. It takes up relatively less space with low energy consumption. The machine framework and body adopt 304 stainless steel material, which meets GMP standard.

Inquiry

Write a Review

Product details

Features
▪ Strong compatibility, suitable for round, oblate, square and oblate square bottles of various specifications and materials.

▪Color-coded and color-free disc-shaped bags of desiccant bags;

▪Adopt pre-release desiccant belt design to avoid uneven bag transfer and ensure the accuracy of bag length control. ▪Adopting desiccant bag thickness self-adaptive design for bag placement to avoid bag breakage during conveying.

▪ High durable blade, accurate and reliable cutting, will not cut the desiccant bag

▪ It has multiple detection alarm control functions such as no bottle not working, fault self-checking, desiccant bag not entering thebottle, etc., to ensure the continuity of equipment operation and the accuracy of the dryer bag filling.

▪ The operation of the whole system can only be linked to the upper and lower processes, with good coordination, no need for special personnel to operate, and labor saving

▪ The photoelectric sensor element is produced in Taiwan, which is stable and durable.

Product parameters:

Model		UBM-GS
Production capacity		50-120 Bottles/Min ( Depend on bottle size )
Voltage		220V AC ,50Hz
Power		0.5KW
Overall dimension		1600×750×1800 mm
Weight		180kg

Product description

Structure chart

This machine is composed of desiccant roll, guide wheel mechanism, additional feeding mechanism, color mark sensor, conveyor belt,dust cover, touch screen and main frame.
