الشركة المصنعة للآلات الصيدلانية المهنية & مصدر يعمل في صناعات التعبئة والتغليف الدوائية - الآلات الحضرية

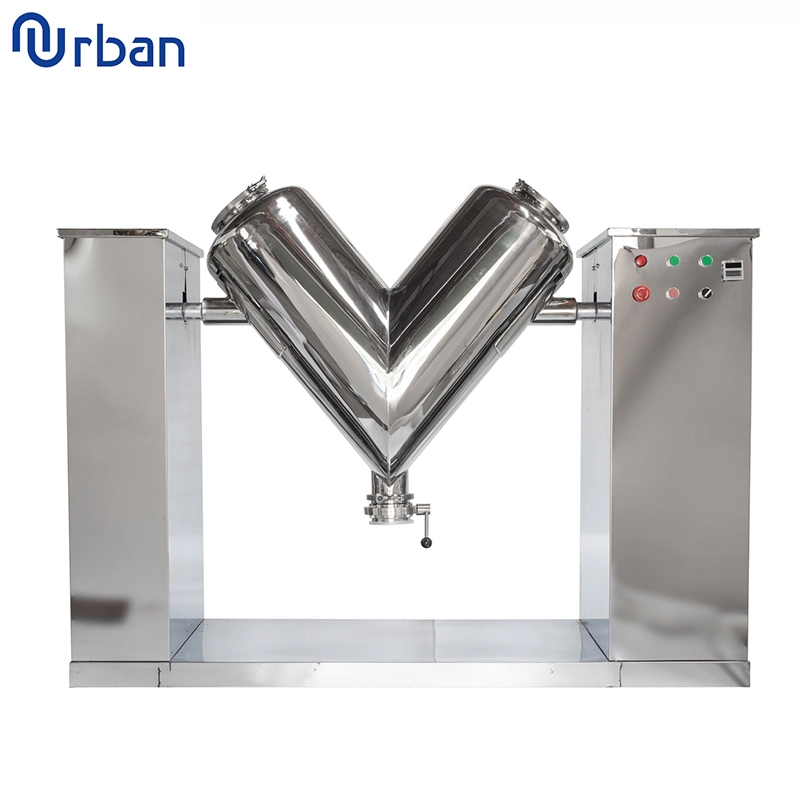

إنها مناسبة لخلط مختلف المساحيق الجافة والمواد الحبيبية الصناعات الكيماوية والغذائية المتخصصة. يتميز الخلاط بخصائص الهيكل البسيط، التشغيل السهل والمظهر الجميل. أجزائه الملامسة للمواد مصنوعة من الفولاذ المقاوم للصدأ، والذي يتوافق مع CGMP.
Product details
①No dead corners of materials during mixing.
②When the mixed powder has good fluidity and similar physical properties, a better mixing effect can be obtained.
Product parameters:
Model | V-50 |
Gross volume(L) | 50 |
Working volume(Kg) | 30 |
Mixing time(min) | 4-8 |
Rotary speed(rpm) | 20 |
Power(KW) | 0.75 |
weight(kg) | 160 |
Product description
The reducing mechanism drives the barrel rotary, and the length of two barrels is different, which will produce asymmetry. And then the machine take advantage of this asymmetry for mixing materials. When the machine is running, materials from the decomposition to the combination, as potential energy differences, which will produce lateral force to promote the horizontal exchange of materials; and materials from the combination to the decomposition, as materials plane differences, which will produce lateral force to promote the horizontal exchange of materials again. The barrels rotary one cycle, which will make 25% of materials flow from one barrel to the other one; at the same time the materials will also produce radial flow, and then the materials can horizontally and radially decompose, alternating combination, so that the materials can mix evenly.
