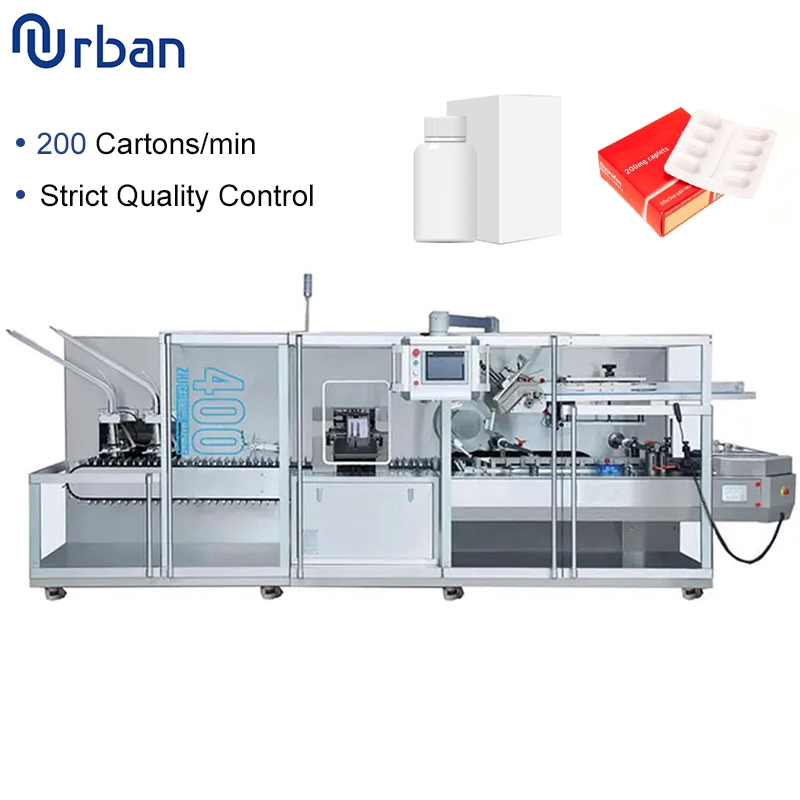

Fully Automatic Multi-Function Food Cosmetic Box Cartons Packaging Machines Horizontal Cartoning Machine UBM-400

The UBM-400 high speed carding machine consists of a cache disk, a charging mechanism, a conveyor belt and a carding machine.The packing machine is composed of folding machine, folding paper strip conveying mechanism, medicine plate conveying mechanism, medicine plate pushing into paper box mechanism, paper box opening forming mechanism, box loading, printing steel batch number, paper box folding tongue, insert tongue, sealing mechanism and paper box output mechanism, etc., driven by CAM connecting rod mechanism, accurate, reliable and consistent movement.

Inquiry

Write a Review

Product details

UBM-400 automatic high speed packing machine is an innovative model designed by our company on the basis of the introduction of foreign advanced technology, and is manufactured in strict accordance with the "GMP" requirements of the pharmaceutical industry. With high efficiency, high performance production capacity, manual folding and transfer, carton forming, rear push mechanism related technology to meet European and American standards; The simple appearance design and the continuous pushing structure at the back make the operation and maintenance easier; Three equal parts rotary open box with double preforming device to ensure the carton fully stretched forming.

This machine is an automatic continuous high speed packing machine, which is a high-performance product integrating machine, light, electricity and gas. It is suitable for automatic packing of aluminum-plastic blister plate, bottle, hose, soft aluminum and bag-like items, and can form a packaging production line with it.

Product description

1. Cache the turntable

After labeling the medicine bottle into the track into the cache disk (cache disk can cache hundreds of medicine bottles), and then transported to the next mechanism by the conveyor track.

2. Vertical and rotating sleeper mechanism

The delivered medicine bottle arrives at the vertical and recumbent mechanism, and the vertical and recumbent mechanism takes the medicine bottle and lays it down on the tank chain of the box filling machine to complete the rotation and recumbent operation.

3. Testing institutions

The material added is checked by photoelectric mechanism for lack of substance.

4. Folding instructions

The instructions are folded 1-4 times in the origami machine. The conveying mechanism sends the folded instruction manual to the station to be packed and waits for it to be packed into the box.

5. Push plate mechanism

Continuous multi-push design, a total of 22 groups of push hands, each group of push hands only push once per cycle, the implementation of the action is more gentle, to ensure the stability of high-speed operation of the equipment. Each group of push hand is a double push hand form, for the manual push hand and the product push hand, push the manual first, and then push the package to prevent the manual from causing resistance to the package. The medicine plate is backed up by the box filling machine, with beautiful operation surface and less space.

6. Suction box

Through the vacuum provided by the equipment, the high-precision compound gear rotating three-head box opening device can realize the opening of the box and drop it into the corresponding position at the same time, the gear can open three boxes per rotation, greatly improving the speed and stability of the box. The suction head is used to absorb one side of the carton. When the suction head is rotated, under the action of the pre-opening mechanism, the carton can be opened automatically and fixed after being put into the station. This way of opening the carton can ensure a high success rate of opening the carton under high-speed operation.

7. Paper boxes

Hold the carton and feed it into the opening head, which can put about 1000 boxes at one time. Operators reduce the number of boxes.

8. Box entry component mechanism

Insert the box tongue exactly into the box

9. Batch numbering agencies

The position of steel code can be reserved at the carton cap, and the number of code is determined according to the cap size and user requirements.
