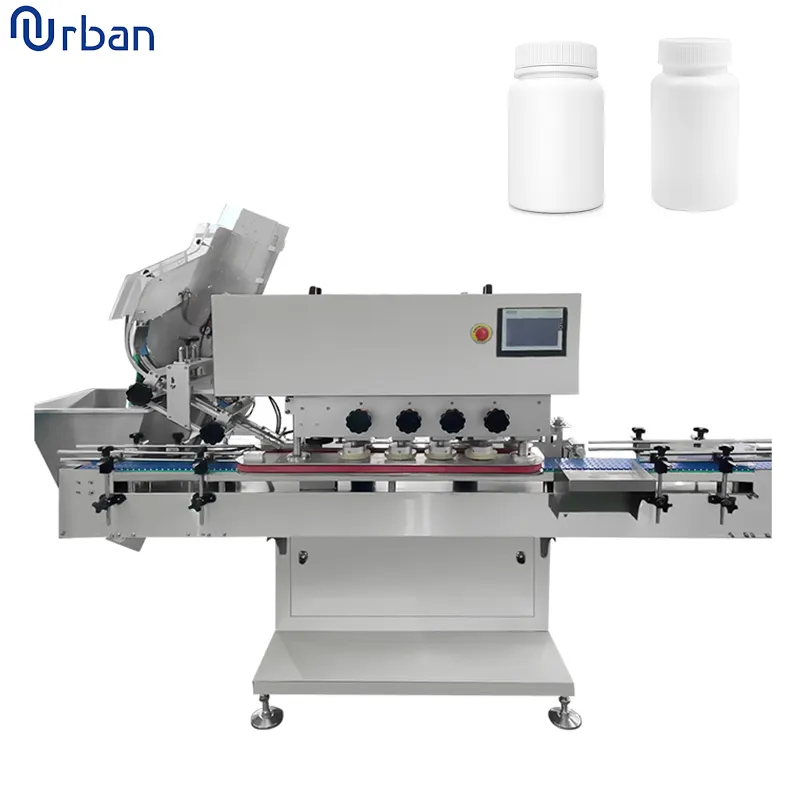

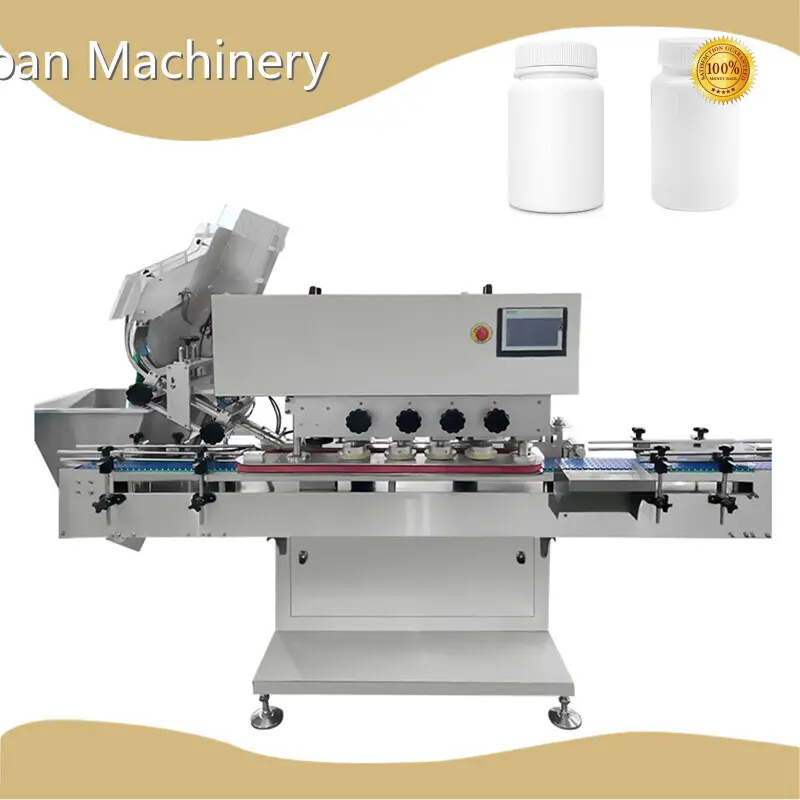

Pharmaceutical Manufacturing Equipment Suppliers Urban Machinery Brand
Product details of the pharmaceutical manufacturing equipment suppliers
Product Description
The material of pharmaceutical manufacturing equipment suppliers we used has a good durability. The performance and quality of the product meet with the industry specification. As to Wenzhou Urban Machinery Co., Ltd.'s sales network, we have many sales agents throughout the country.
Product details
The machine adopts three groups of friction rollers to screw caps. Screwed caps are not easily damaged by the screwing unit. And if caps are not screwed tightly or tilted, they will be found and rejected automatically. The screw capper is available for various bottles and its changeover is fast and easy. The machine overthrows conventional means of arranging cap by electromagnetic oscillation but arranges caps pneumatically to avoid noise pollution and reduce electric power consumption. It also provides international brand PLC controls, variable frequency controls and photoelectric controls. The machine is incorporated with the device of arranging and lifting cap and a big capacity of cap hopper, so less cap feeding times reduces labor intensity. Generally operators can grasp fluently. The machine conforms to the requirements of GMP completely.
Product parameters:
| Size of bottles | 20-500 ml |
| Output | 10-100 bottles/min |
| Diameter of caps | 20-65 mm |
| Diameter of bottles | 20-120 mm |
| Power supply | 220V 50Hz |
| Power | 1.8KW |
| Overall dimensions | 2280*1080*1940 mm |
| Weight | 510KG |
Product description

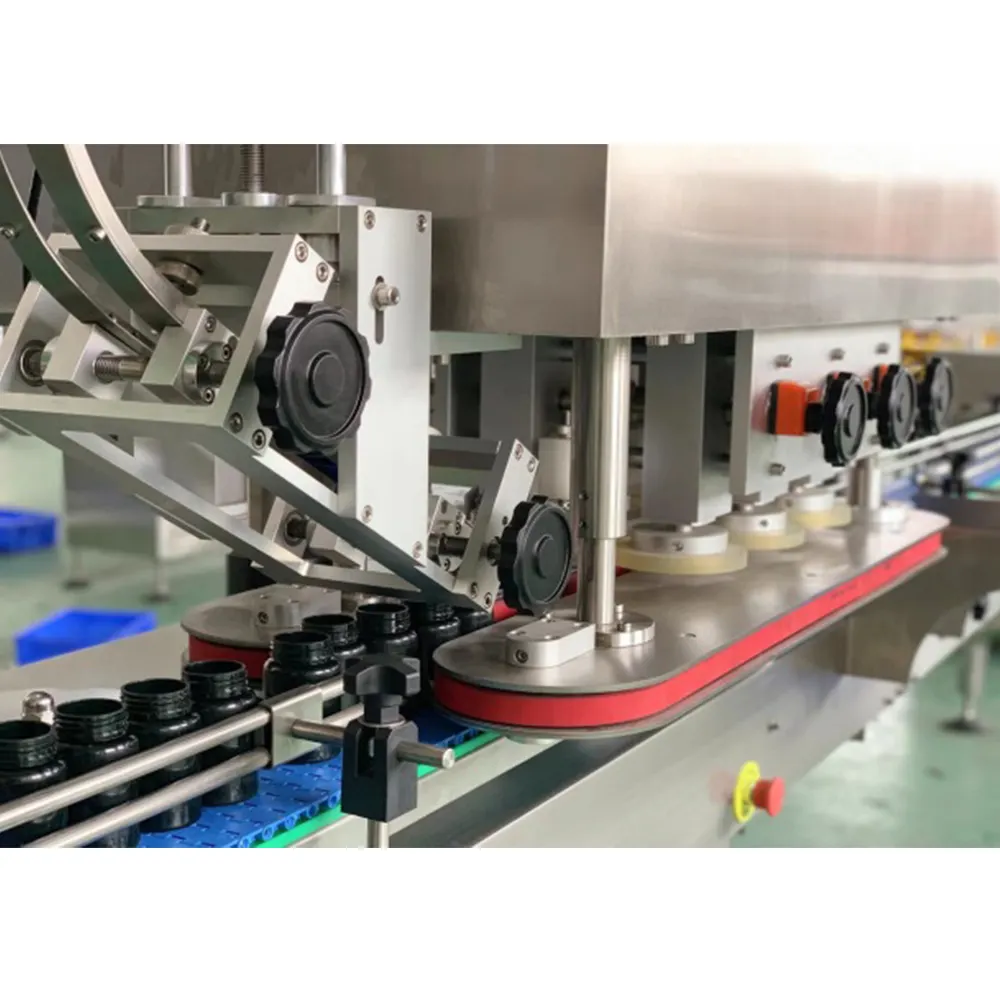

Bottle Nipping Belt
The suitable transfer speed is adjustable, two belts make it easier to transport and fixed bottles
Bottle Cap Feeder
Bottle Cap Conveyor Track
Capping Chuck
Suitable for different kinds of bottles caps, like normal screw caps, pump caps

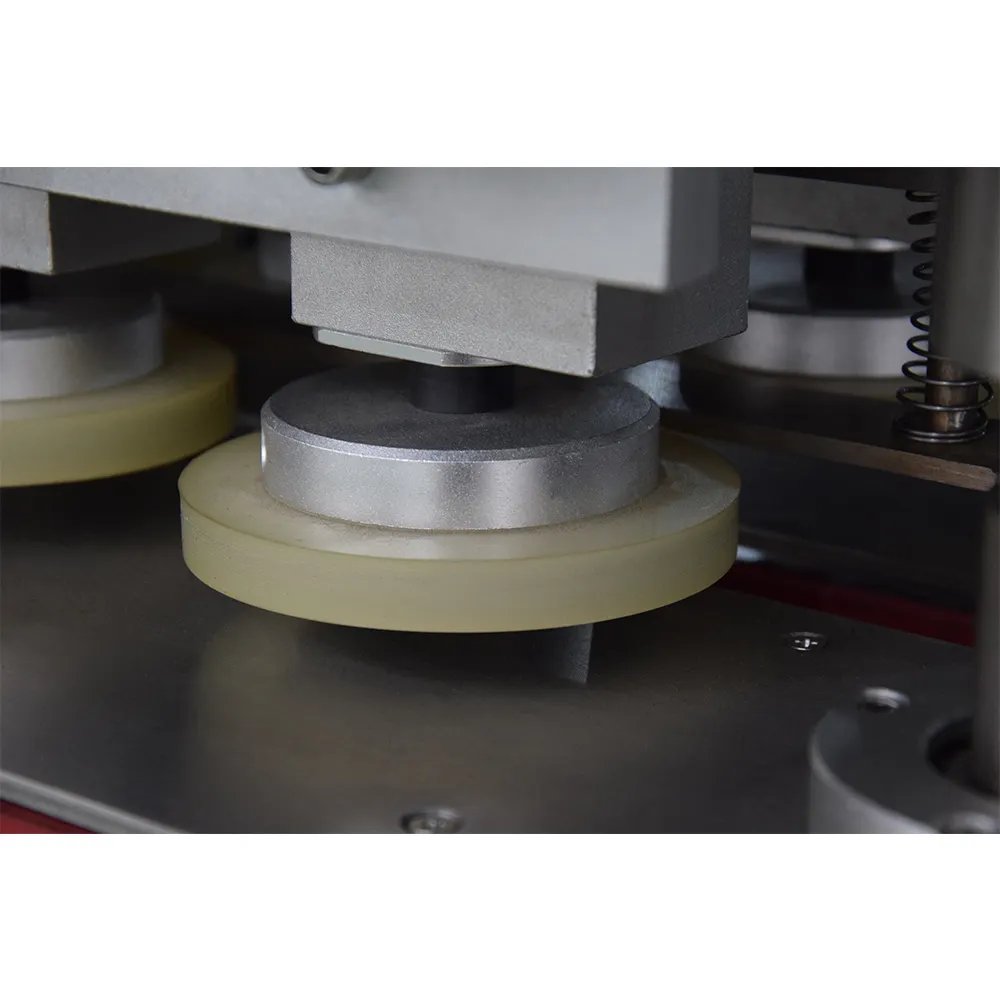

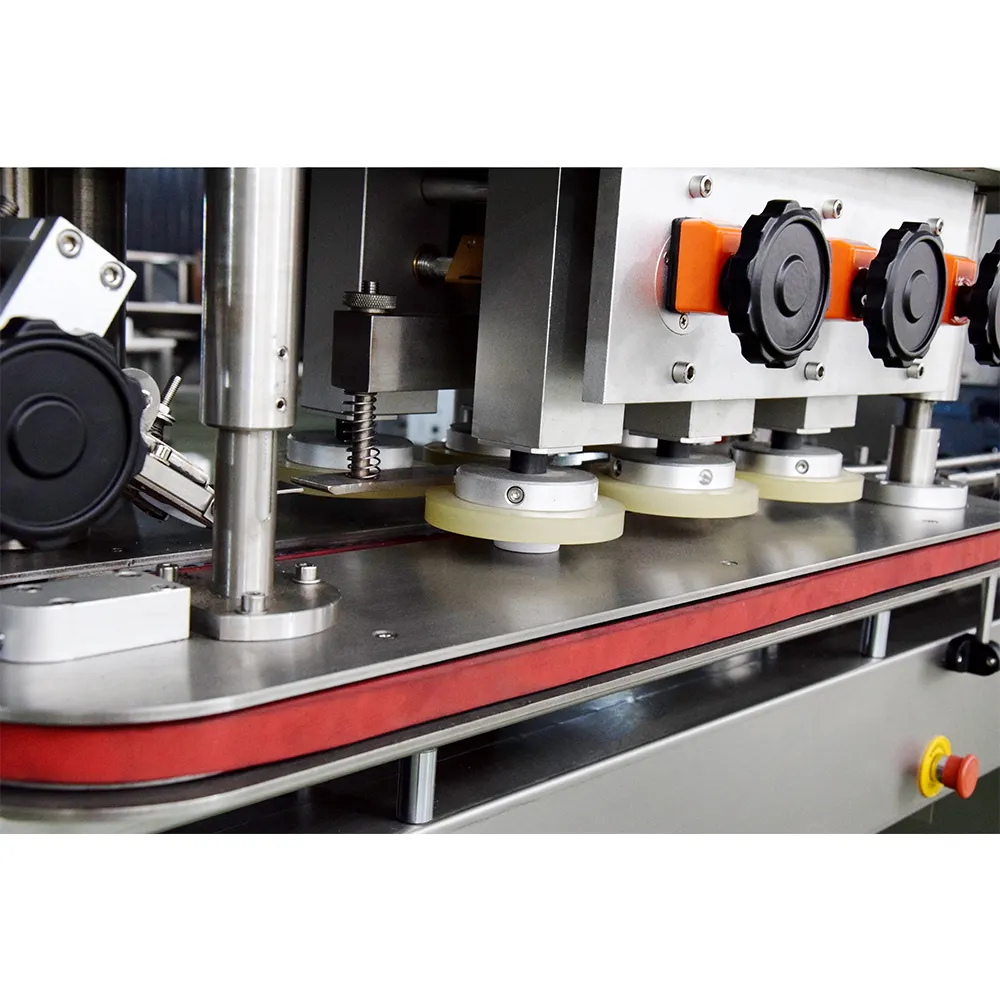

Capping wheel
the capping wheel screw the cap in the positivie and negative directions are both avaliable the torque is adjustable and the capping quality is high，can equi with different hardness and softness capping wheels according to the product avoiding the capping slippage and damage to the bottle cap
