Company Advantages

· The production of Urban Machinery pharmaceutical filling machine is based on the lean production principle.

· In order to eliminate the possibility of all defects, the product needs to be thoroughly inspected by a professional quality inspector.

· Wenzhou Urban Machinery Co., Ltd. has set up professional departments such as scientific research and development, production management, and sales services.

Product details

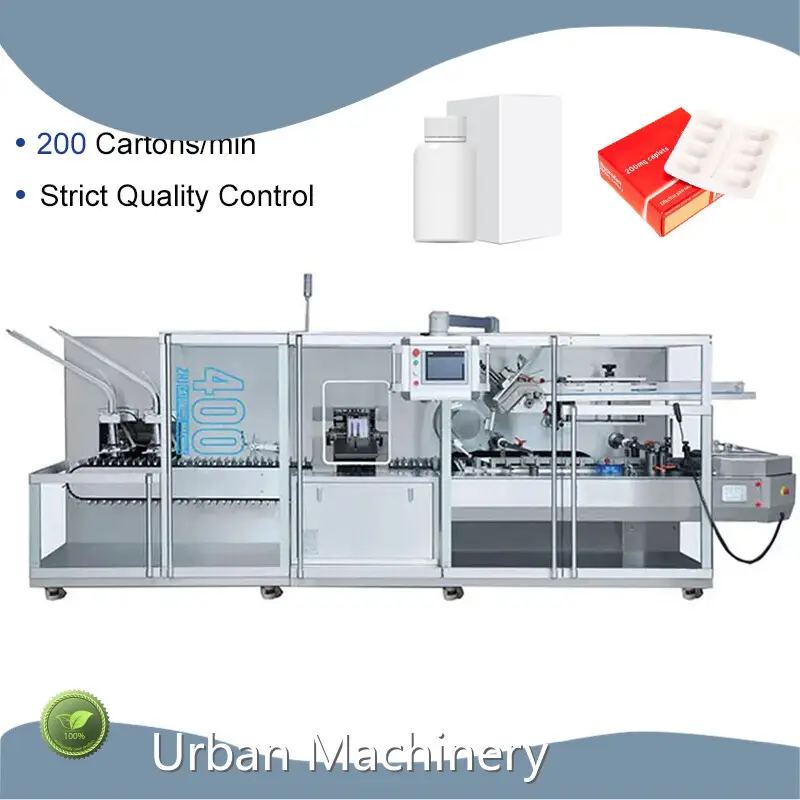

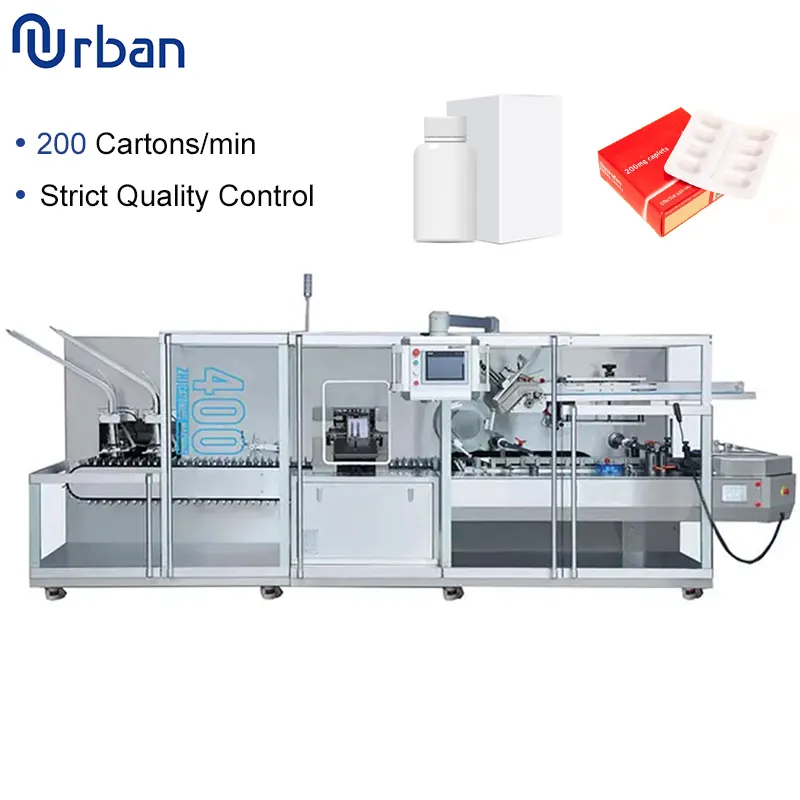

UBM-400 automatic high speed packing machine is an innovative model designed by our company on the basis of the introduction of foreign advanced technology, and is manufactured in strict accordance with the "GMP" requirements of the pharmaceutical industry. With high efficiency, high performance production capacity, manual folding and transfer, carton forming, rear push mechanism related technology to meet European and American standards; The simple appearance design and the continuous pushing structure at the back make the operation and maintenance easier; Three equal parts rotary open box with double preforming device to ensure the carton fully stretched forming.

This machine is an automatic continuous high speed packing machine, which is a high-performance product integrating machine, light, electricity and gas. It is suitable for automatic packing of aluminum-plastic blister plate, bottle, hose, soft aluminum and bag-like items, and can form a packaging production line with it.

Product description

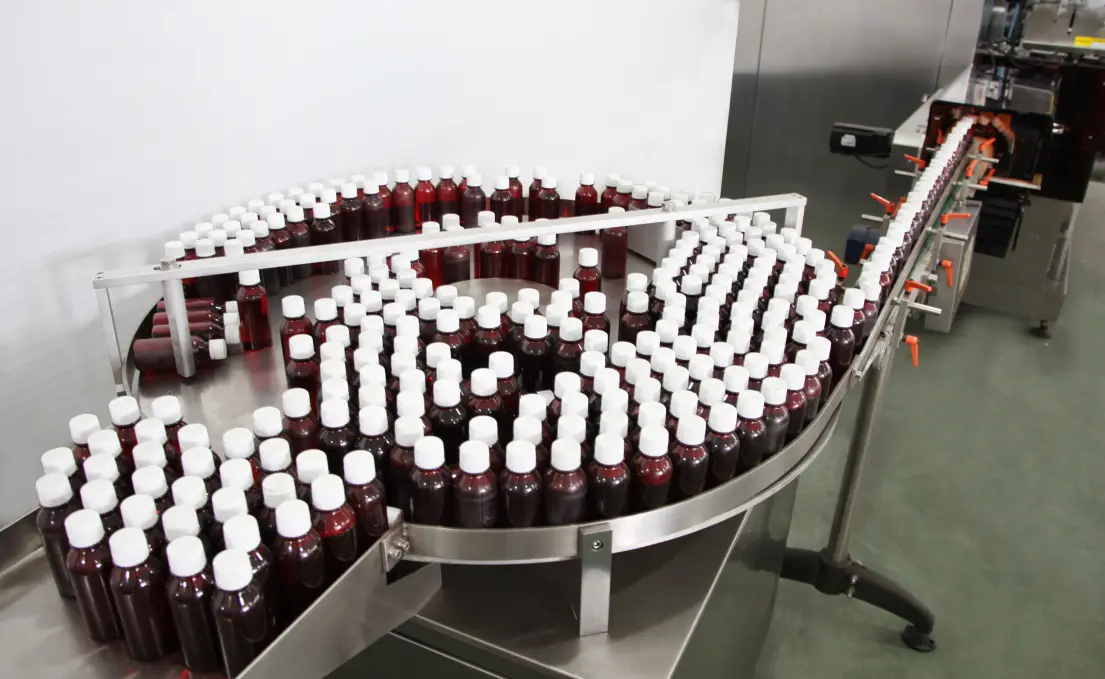

1. Cache the turntable

After labeling the medicine bottle into the track into the cache disk (cache disk can cache hundreds of medicine bottles), and then transported to the next mechanism by the conveyor track.

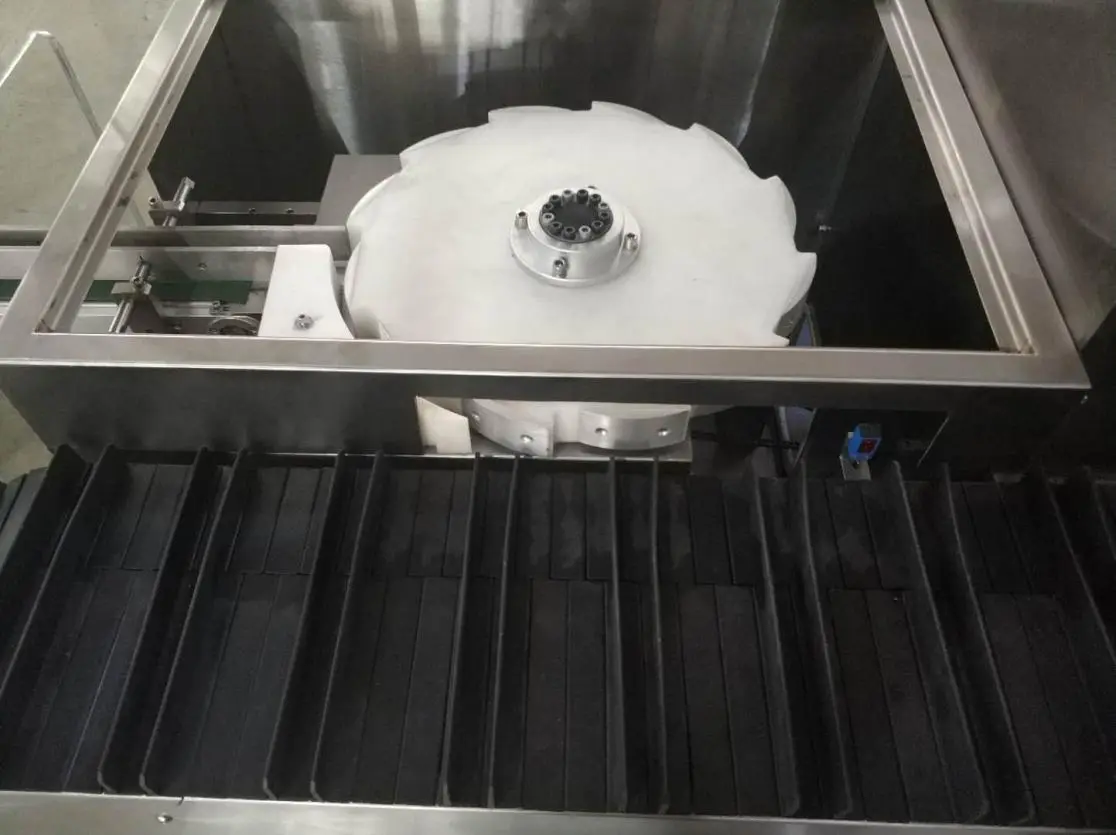

2. Vertical and rotating sleeper mechanism

The delivered medicine bottle arrives at the vertical and recumbent mechanism, and the vertical and recumbent mechanism takes the medicine bottle and lays it down on the tank chain of the box filling machine to complete the rotation and recumbent operation.

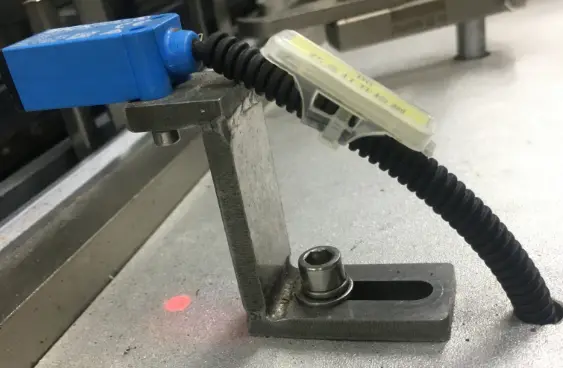

3. Testing institutions

The material added is checked by photoelectric mechanism for lack of substance.

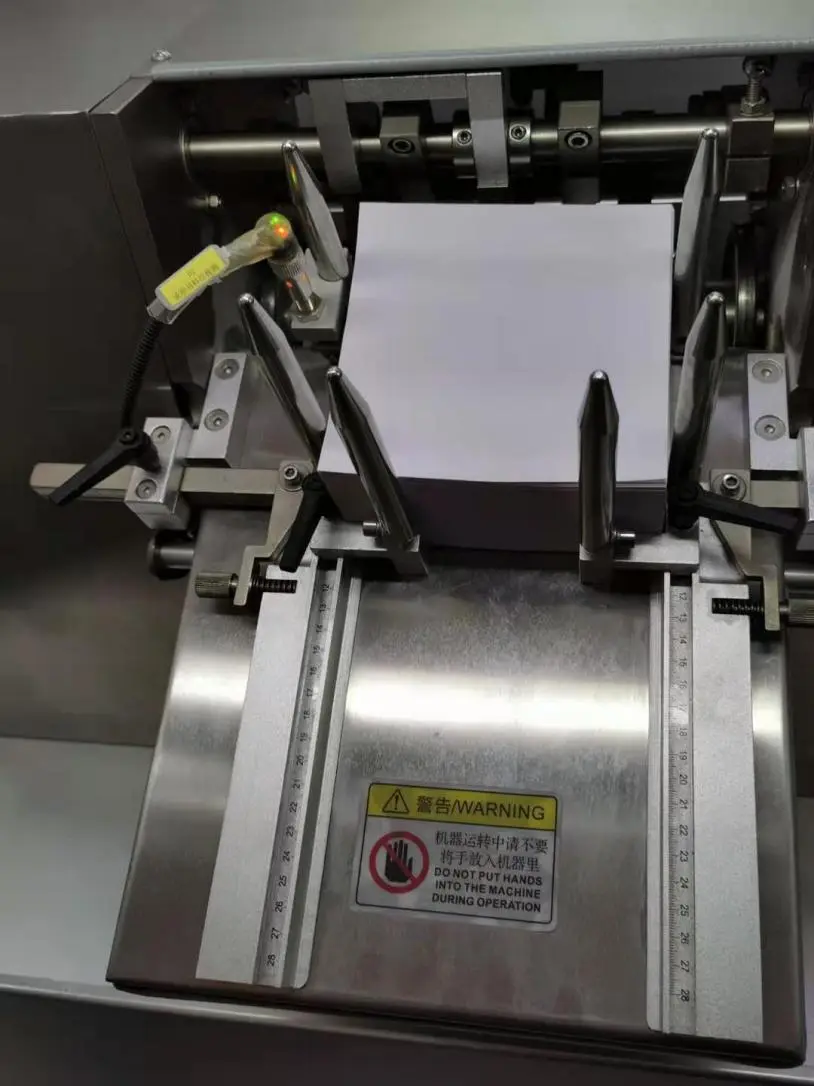

4. Folding instructions

The instructions are folded 1-4 times in the origami machine. The conveying mechanism sends the folded instruction manual to the station to be packed and waits for it to be packed into the box.

5. Push plate mechanism

Continuous multi-push design, a total of 22 groups of push hands, each group of push hands only push once per cycle, the implementation of the action is more gentle, to ensure the stability of high-speed operation of the equipment. Each group of push hand is a double push hand form, for the manual push hand and the product push hand, push the manual first, and then push the package to prevent the manual from causing resistance to the package. The medicine plate is backed up by the box filling machine, with beautiful operation surface and less space.

6. Suction box

Through the vacuum provided by the equipment, the high-precision compound gear rotating three-head box opening device can realize the opening of the box and drop it into the corresponding position at the same time, the gear can open three boxes per rotation, greatly improving the speed and stability of the box. The suction head is used to absorb one side of the carton. When the suction head is rotated, under the action of the pre-opening mechanism, the carton can be opened automatically and fixed after being put into the station. This way of opening the carton can ensure a high success rate of opening the carton under high-speed operation.

7. Paper boxes

Hold the carton and feed it into the opening head, which can put about 1000 boxes at one time. Operators reduce the number of boxes.

8. Box entry component mechanism

Insert the box tongue exactly into the box

9. Batch numbering agencies

The position of steel code can be reserved at the carton cap, and the number of code is determined according to the cap size and user requirements.

Company Features

· Wenzhou Urban Machinery Co., Ltd. has been a backbone enterprise after years of stable development for manufacturing pharmaceutical filling machine.

· Our production factory has a full set of advanced technical equipment and scientific quality management system. This enables us to provide reliable and high-quality products that are manufactured in line with regulations to clients. We have modern production lines. These lines operate strictly follow every standardized operation procedure, meeting ISO9000. This guarantees that from raw materials, production equipment to the production process, the entire process is in accordance with regulations. We have strong customized service teams who are professional and wholehearted. They are our designers and R&D members. They can always customize products that precisely cater to market trends and customers' needs of pharmaceutical filling machine.

· Wenzhou Urban Machinery Co., Ltd. will use technology advantages to develop products to meet the increasing demand on the market. Inquire!

Product Details

The pharmaceutical filling machine produced by our company have superior quality, and the specific details of products are presented in the following section.

Application of the Product

Our pharmaceutical filling machine can be used in a variety of industries to play a certain role.

Through problem analysis and reasonable planning, we provide our customers with an effective one-stop solution to the actual situation and needs of customers.

Product Comparison

Compared with general products, the pharmaceutical filling machine we produce have the following advantages.
