Pharmaceutical Packaging Machine Urban Machinery Brand
Product details of the pharmaceutical packaging machine
Quick Detail
The R&D of Urban Machinery pharmaceutical packaging machine is put emphasis on technical innovation. The product has the characteristics of long service life, excellent performance and stable performance. It plays an important role in our customers' business, and its market prospect is very broad.
Product Information
Urban Machinery's pharmaceutical packaging machine has excellent performances, which are reflected in the following details.

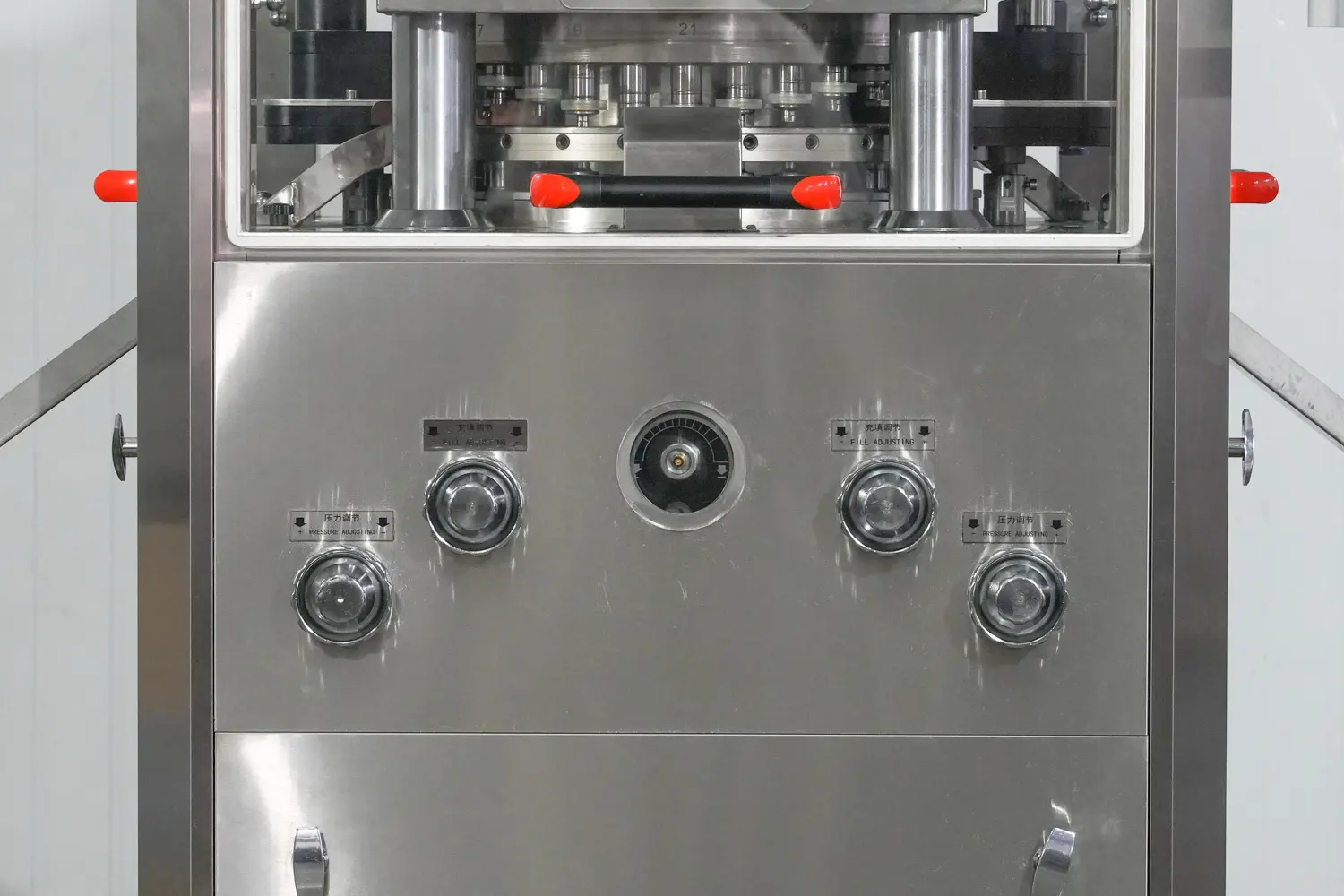

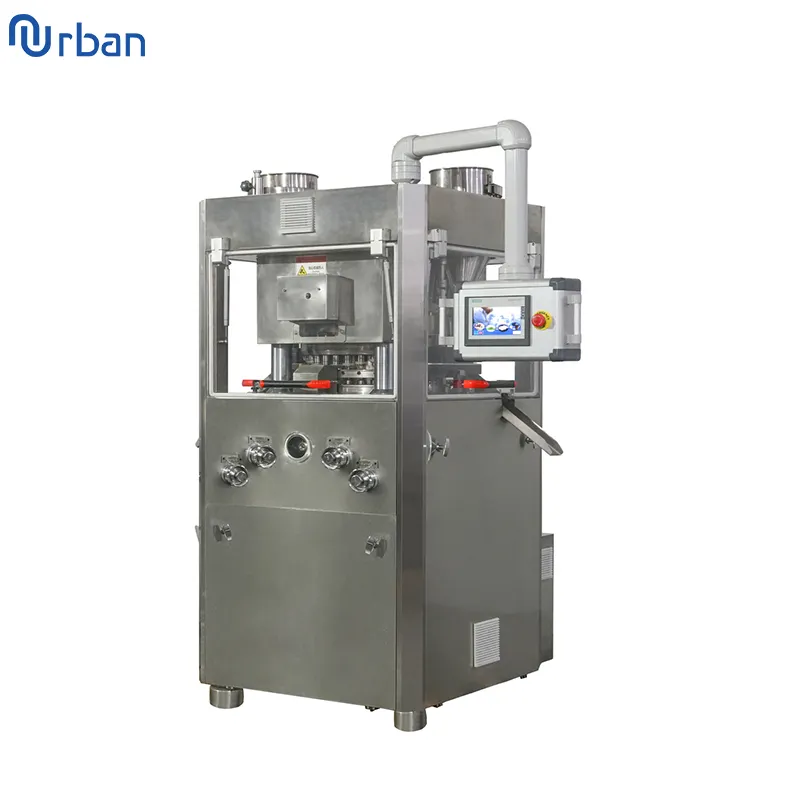

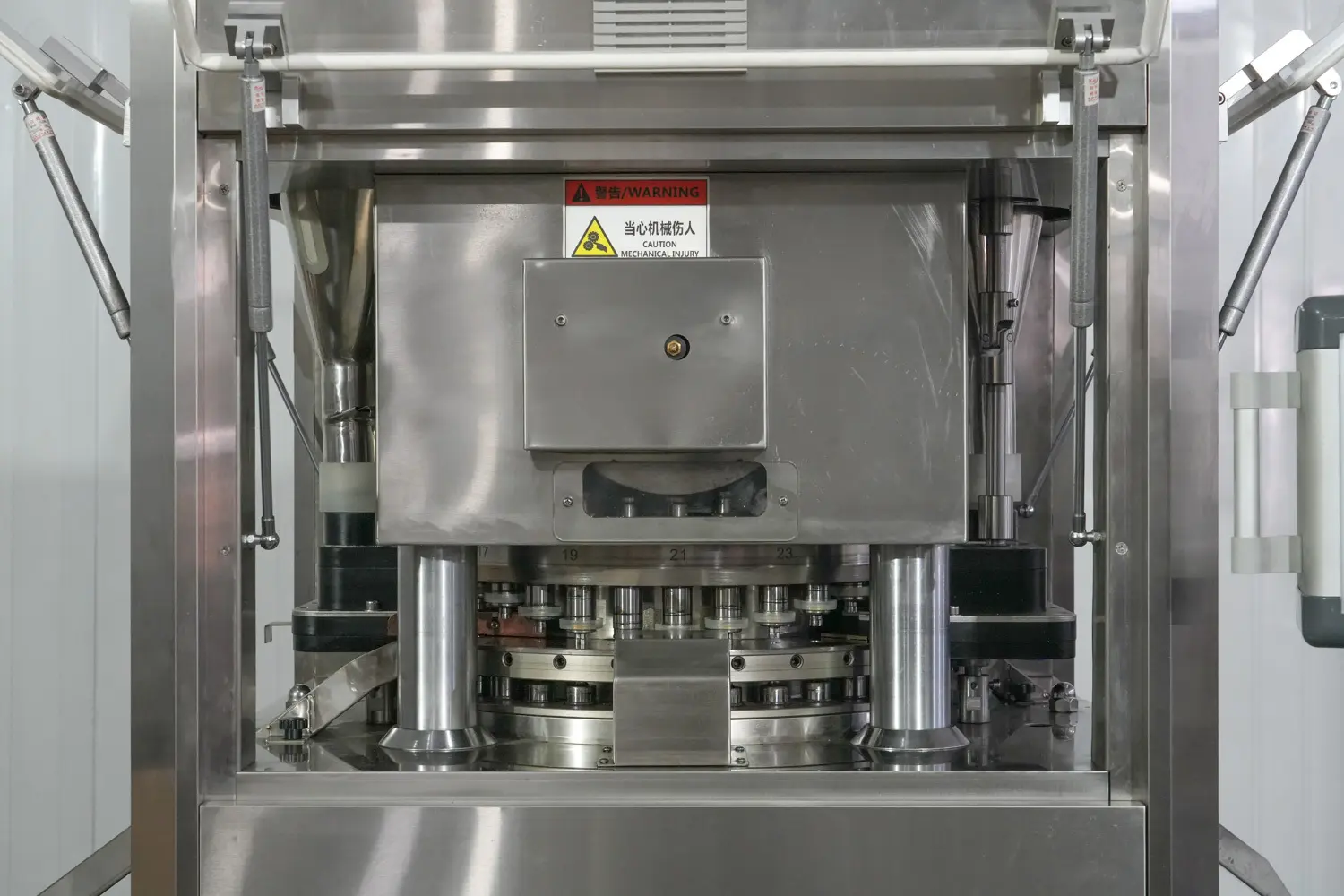

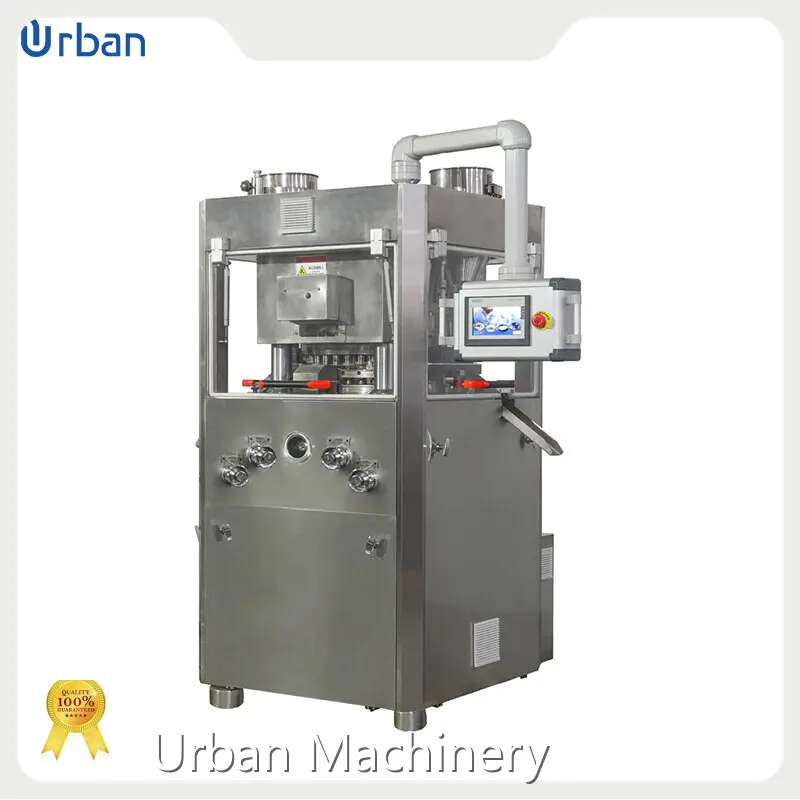

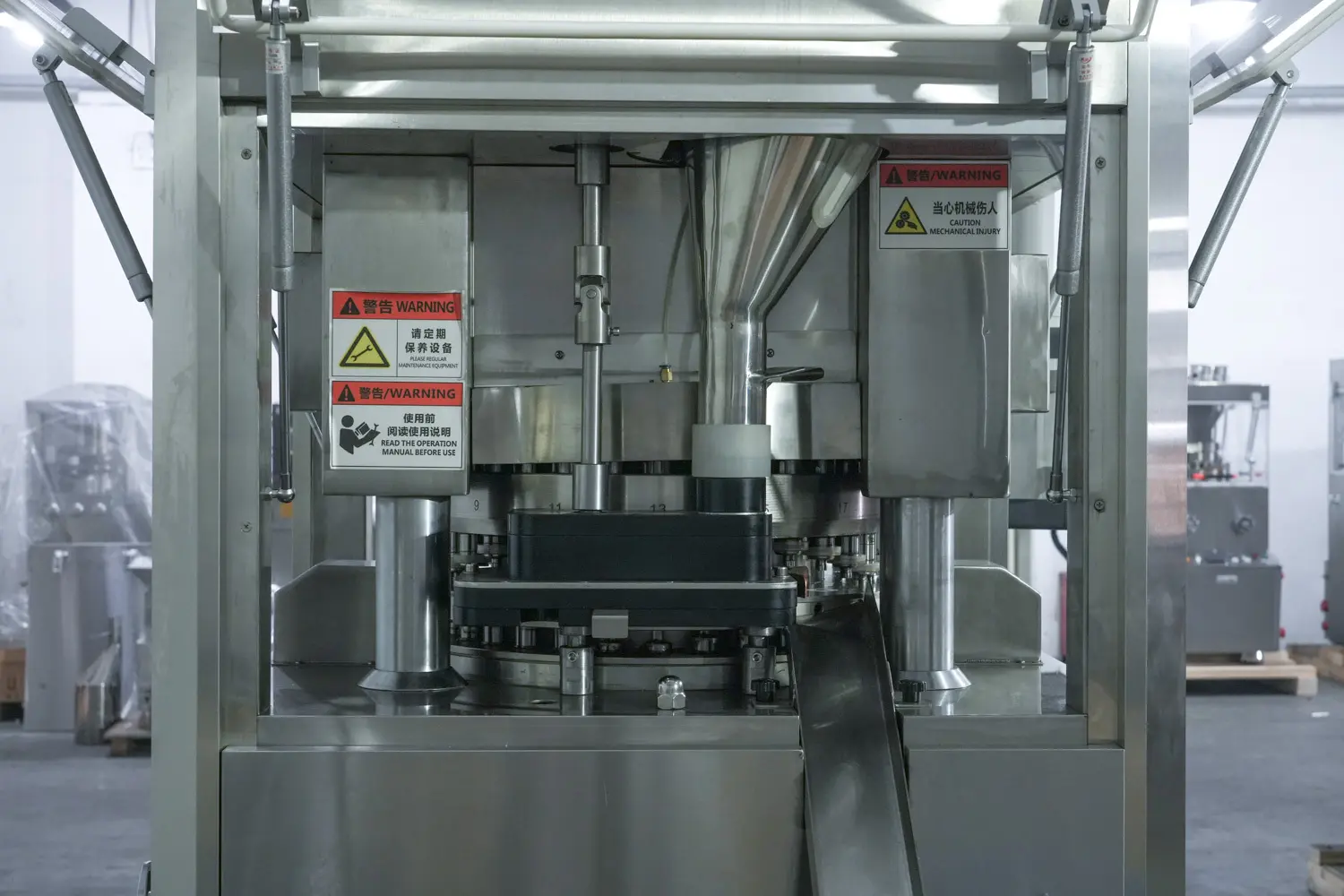

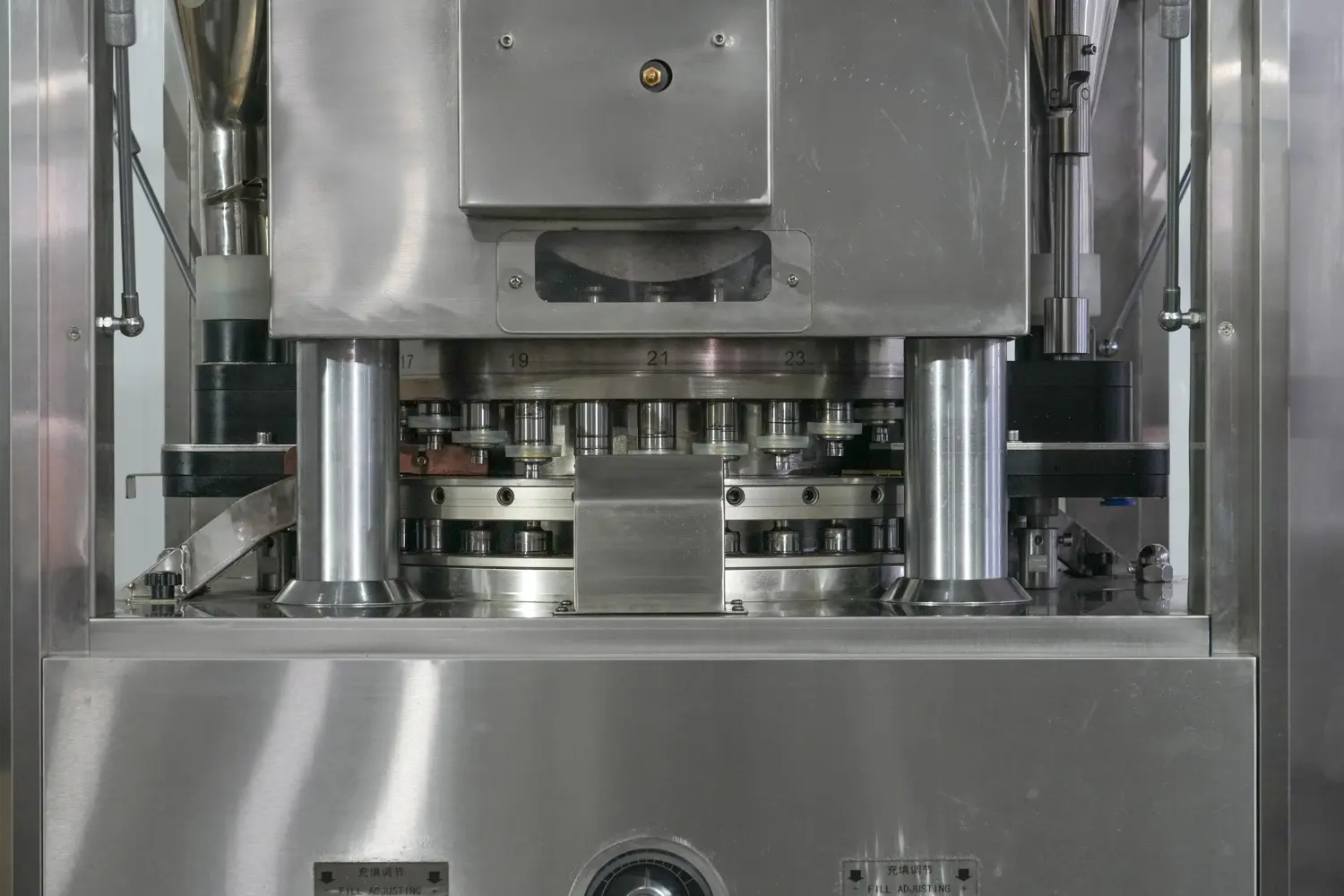

Product details
This machine is a kind of double pressure automatic rotation, continuous tablet machine, the granular raw materials pressed into round, engraved and shaped, two-color tablets it is mainly used in the pharmaceutical industry tablet production, but also suitable for chemical, food, electronics and other industrial enterprises.
Product parameters:
|
Model |
ZPTX-15 |
|
|
Number of punch |
15 |
|
|
Speed range (min/RPM) |
5-25 |
|
|
Maximum main pressing force |
120KN |
|
|
Tablet thickness range |
Standard: 1-7mm Non-standard: 6-12/8-14 |
|
|
Maximum filling depth |
Standard: 15mm Non-standard: 25/35 |
|
|
Maximum sheet diameter |
Ф50mm |
|
|
Working noise |
≤70dB |
|
|
Overall dimension |
1450*1080*2100mm |
|
|
Weight |
1850Kg |
|
Product description
Main feature
1. The outer cover is all stainless steel closed form, and the internal table is made of stainless steel material, which can maintain the surface luster and prevent cross contamination, in line with GMP requirements.
2. Equipped with plexiglass perspective window, visible tablet state, side panel can be fully opened, easy internal cleaning and maintenance.
3. All controllers and operating components are properly arranged.
4. Use frequency conversion speed regulating device for electrical speed regulating, easy operation, stable rotation, safe and accurate.
5. Equipped with overload protection device, when the pressure is overloaded, it can automatically stop.
6. Implement mechatronics, using touch keys and screen display.
7. Take the lead in trying the semi-automatic lubrication device and the plexiglass dust proof device at the upper end of the turntable.
8. The transmission system is sealed in the oil tank below the main engine, which is an independent part of safe separation, and there will be no mutual pollution, and the transmission part is soaked in the oil pool, easy to heat and wear.
9. Equipped with powder absorption device, can absorb the dust in the pressing room.
10. Wearing parts such as rails, feeder, hopper, transmission worm, powder gauge and ZP33 products have a common structure, which is conducive to standardization, generalization and serialization.
Company Advantages
Wenzhou Urban Machinery Co., Ltd. has developed into an international company. For many years, we have devoted to the R&D and producing of pharmaceutical packaging machine. Our company has state-of-the-art manufacturing facilities. In fact, we have made a significant investment in the equipment to allow for more throughput and a better production process. We are committed to preserving resources and materials as long as possible. By reusing, regenerating, and recycling products, we sustainably conserve our planet's resources.
If you want to know more relevant product information, feel free to contact us. We are dedicated to serving you.
