Product details of the pharmaceutical packaging equipment


Quick Detail

We can customize colors and sizes for pharmaceutical packaging equipment. Since we have established a good quality management system to prevent any possible defects, the quality of the products is guaranteed. The pharmaceutical packaging equipment produced by Urban Machinery is of high quality and is widely used in the industry. Since the product can bring great economic benefits to every user, it is well-received and widely used in the market now.


Product Introduction

Compared with other products in the same industry, Urban Machinery's pharmaceutical packaging equipment has the following characteristics.

Product details

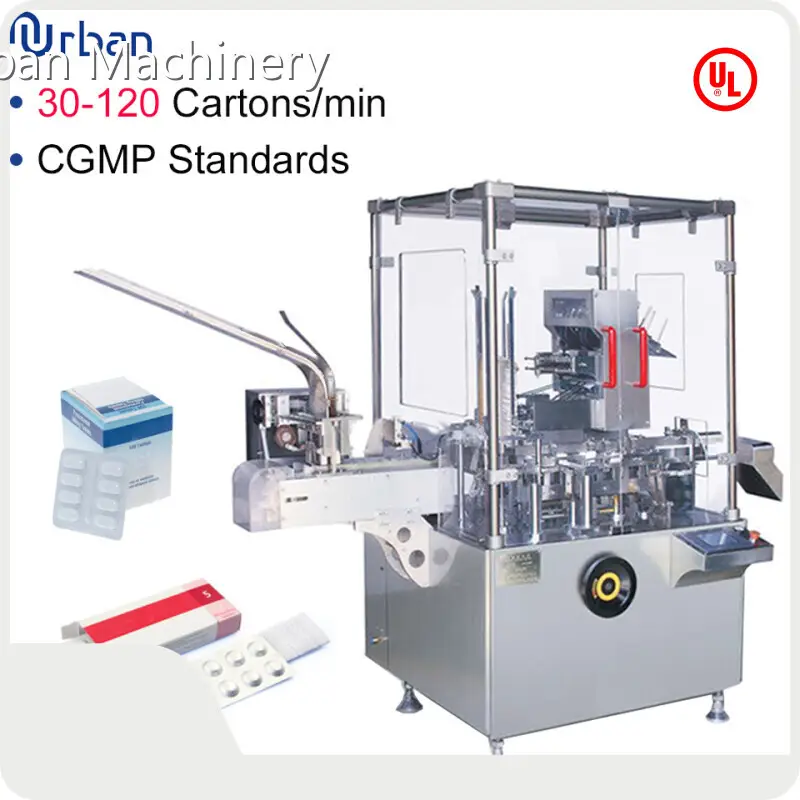

It is specially design to pack small quantities multi size box.

With low cost and only require small area. It is suitable for various sizes of box. The machine is a vertical type with multiple function and require a short time to change mould.

304 stainless steel case

Advanced PLC Control System Combined with Colorful Touch Screen Control Panel , can easily set and change the packing parameters.

1 (16)

Product parameters:

Model

UBM-120

Encasing speed

30-120cartons/min

Carton

Quality requirement

250-350g/m2

Dimension range(L*W*H)

(65-125) *(30-85) *(12-50)mm

Leaflet





Quality requirement

60-70g/ m2

Unfolded leaflet specification

(80-250) *(90-170)mm

Fold range

1-4 fold

Compressed air



Working pressure

≥0.6mpa

Air consumption

120-160L/min

Power supply

220V 50HZ

Motor power

0.75Kw

Machine weight

1100kg

Machine dimension(L*W*H)

2150*1140*1800mm

Product description

微信截图_20240508152014
Customized Feeder Methods
Suitable for different materials
微信图片_20211123152539
Improve Productivity & Packaging
Automatic erect,folded,side seamed and close cartons.

Features:

Conforms to cGMP standards  CE Marked

With the feeding device for blister and International famous brand of electrical component such as PLC touch screen, frequency inverters, etc.

Adopt human-machine operation system.

When machine is overload, it will automatically stopped.

It will automatically reject lacking of package product and leaflet.

It will automatically display trouble, Alarm and count finished products.

Fully adjustable throughout size range with digital position indicators

Stable performance, operation is easy.
