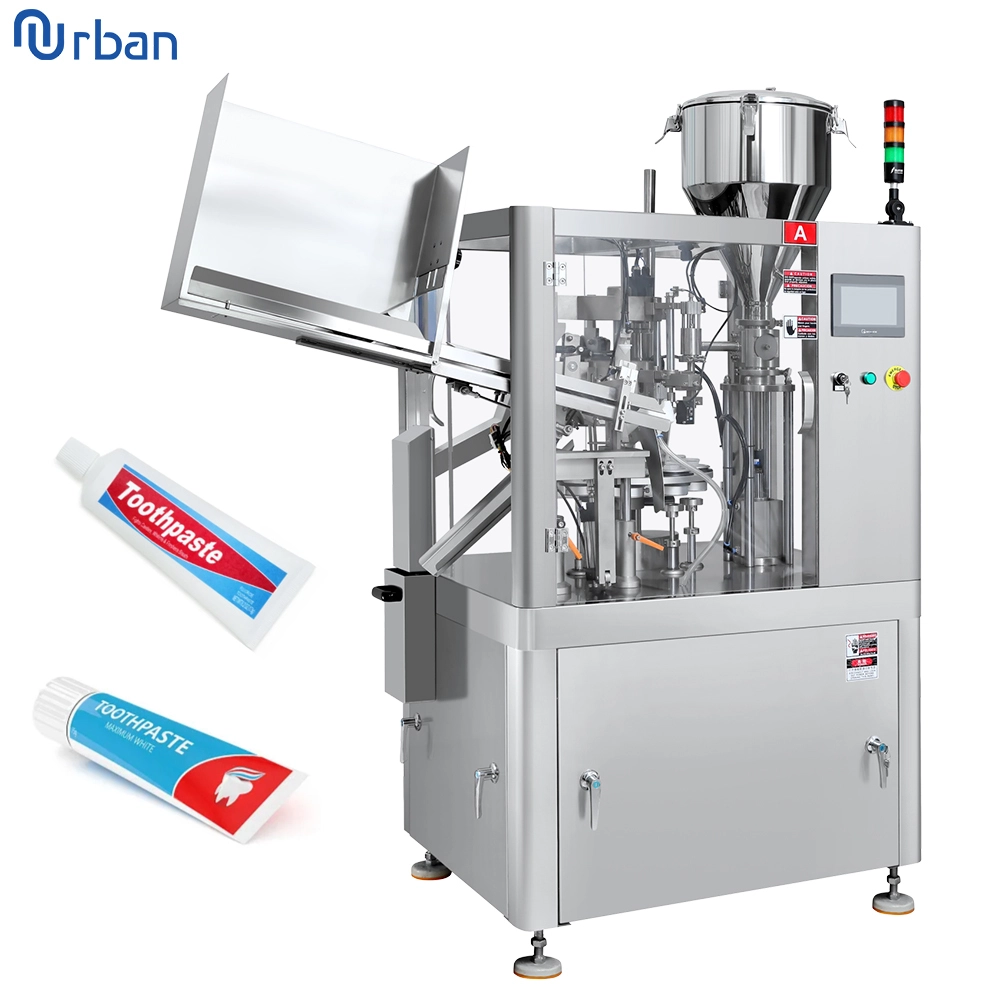

Automatic Sealing Gel Toothpaste Lotion Cosmetic Cream Soft Tube Filling And Sealing Machine UBM-60YP
This machine is compact, simple and easy to operate, and is suitable for the needs of users in the medicine, food, daily chemical products and other industries. This machine can smoothly and accurately inject all kinds of pasty, viscous fluid and other materials into the aluminum tube through the filling system, and complete the filling, sealing, and make batch number (production date) of the metal aluminum tube by folding manipulator. The production capacity of this machine is up to 3000 pieces per hour, and the filling volume error does not exceed ±1%.
Product details
◆Compact Design
◆Driving Parts Fully-closed
◆Pneumatic Tube Washing & Feeding
◆Intelligent Temperature Control and Cooling System
◆Easy to Operate and Adjust
◆316L Stainless Steel Contact Parts to meet GMP Standard
◆Safety Interlock Shutdown when Door is Open
◆Overload Protection Provided
◆Automated Working process from Tube Loading to Finished Products Output
◆Automatic Orientation Effected by Photoelectric Induction
Product parameters:
| Filling volume | 1-250ml/unit (Adjustable) |
| Filling accuracy | ≦±1﹪ |
| Capacity | 2400-3000unit/hour, Adjustable |
| Tube diameter | Φ10-50 mm |
| Tube length | 50-200mm |
| Hopper volume | 40L |
| Power | 380V/220V (Optional) |
| Air pressure | 0.4-0.6 MPa |
| Equipped motor | 1.1KW |
| Machine power | 5kw |
| Inner wind motor | 0.37kw |
| Convulsions motor | 0.37kw |
| Dimension | 1950×760×1850（mm） |
Application
Product description
Plastic Tube Filling and Sealing Machine
Compact design and auto tube feed. Driving part fully-closed.
Tube washing and feeding marking identification, filling, folding, sealing, code printing and finished product output all conducted by a fully auto control system.
Tube washing and feeding conducted pneumatically, accurate and reliable.
Optional Devices
◆Chiller
◆Date Coding Embossing
◆Automatic Tube Feeding Magazine
◆Change Parts
