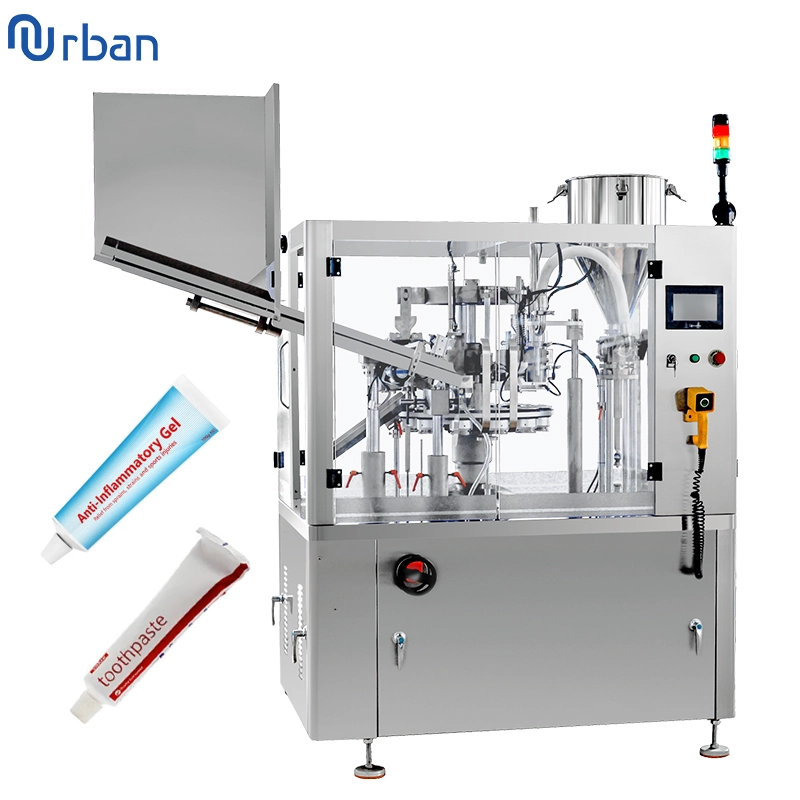

Tube Filling Sealing Machine is used for cosmetics industry, light industry (daily-use chemical industry), food industry and other industries. The machine is suitable for products which choose tubes as packaging containers.
The equipment fills such materials as ointments, creams, gels or fluids with high viscosity into the tube, then folds and seals the tail of the tube, and prints the word code on the tube to produce the finished product.
Application
Cosmetics: Tube filling and sealing machines are commonly used to package a wide range of cosmetic products, including creams, lotions, gels, and pastes.
Food and beverage: Tube filling and sealing machines are also used to package food and beverage products, including condiments, sauces, and toothpaste.
Chemicals: Tube filling and sealing machines are used to package various types of chemical products, including adhesives, sealants, and lubricants.
Product parameters:
Filling volume | 1-400ml/unit (Adjustable) |
Filling accuracy | ≦±0.5﹪ |
Capacity | 4000-4800unit/hour, Adjustable |
Tube diameter | Φ10-60 mm |
Tube length | 50-240mm |
Hopper volume | 40L |
Power | 380V/220V (Optional) |
Air pressure | 0.4-0.6 MPa |
Machine power | 9kw |
Product description
Machine Characteristics
1. Touch screen operation interface.
2. Up and down movement type filling, effectively prevent the foam from being produced, easy to take apart and wash.
3. The filling accuracy can reach ±0.1%.
4. The filling cylinder is ground, unique filling valve design, no leakage.
5. With no tube no filling and automatic bottle stop function.
6. The equipment is easy to clean, can be disassemble without tools, it can also be cleaned online or high temperature sterilization.
7. Material contact parts are made of SUS304# stainless steel.
8. The equipment meets the hygiene and safety standards. The user can choose the glass protective cover.
