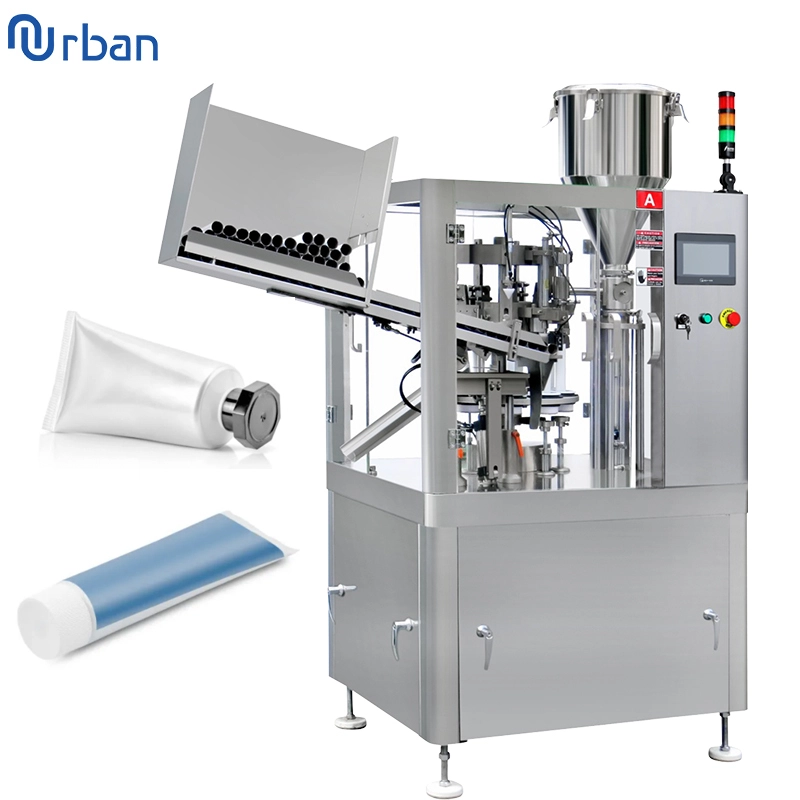

Automatic Ultrasonic Grease Rotary Liquid Cream Soft Aluminum Tube Filling And Sealing Machine UBM-60Z
The tube fill seal machine is made of 316 stainless steel, fully automatic mechanical control,automatic feeding tube, cursor induction, automatic benchmarking, quantitative filling, high measurement accuracy, complete and beautiful sealing, strong seal, good stability. This machine can be equipped with different specifications of irrigation heads to meet the installation requirements of different viscosity.
Product details
The tube fill seal machine is made of 316 stainless steel, fully automatic mechanical control,automatic feeding tube, cursor induction, automatic benchmarking, quantitative filling, high measurement accuracy, complete and beautiful sealing, strong seal, good stability. This machine can be equipped with different specifications of irrigation heads to meet the installation requirements of different viscosity.
Product parameters:
| Model | UBM-60Z |
| Filling volume | 1-120ml/unit (Adjustable) |
| Filling accuracy | ≦±1﹪ |
| Capacity | 2400-3600units/hour (Adjustable) |
| Tube diameter | Φ10-28 mm |
| Tube length | 50-180mm |
| Hopper volume | 40L |
| Equipped motor | 1.1KW |
| Machine power | 2kw |
| Dimension | 1950×750×1850（mm） |
| Power supply | 380/220 (Optional) |
| Weight | About 900 Kg |
Product description
Feature
1. PLC control, intuitive and easy to operate, precisely filling and sealing.
2. Frequency control, the production speed arbitrary regulation, automatic counting.
3. Automatic stop function, no bottle will not filling and not torinese.
4. Disc positioning filling, stable and reliable.
5. High precision cam indexing control, positioning precision.
6. There are two types of tail end shear designs: flat shear and curved shear, which can be configured according to factors such as tail shape or material.
7. The cutting area should be free of burrs and flat, meeting the aesthetic requirements of the packaging.
