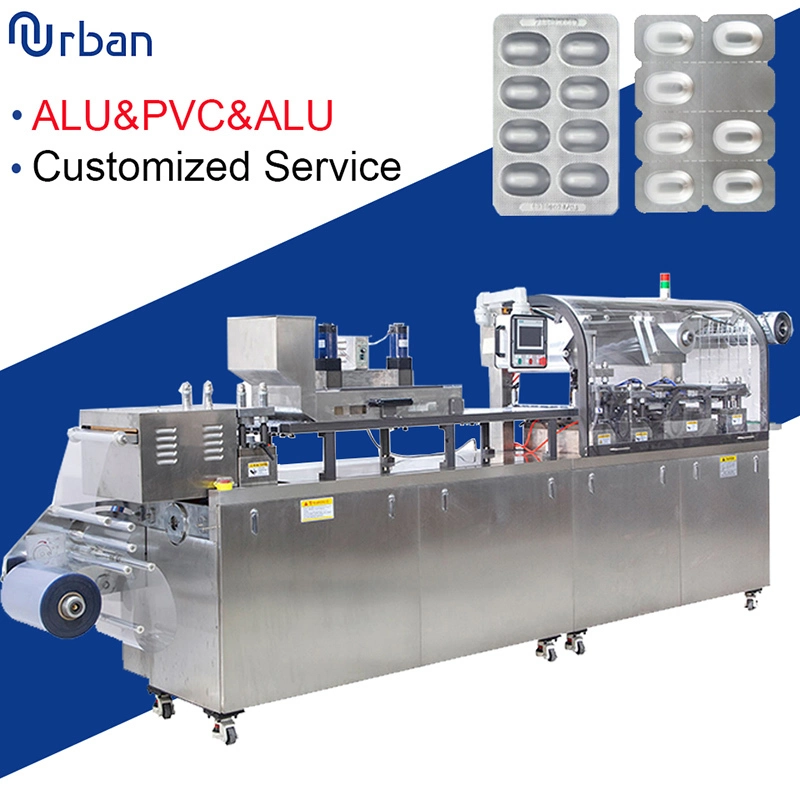

Flat type automatic blister packaging machine DPP-260
Application
It is suitable for different shape packaging of Alu / PVC , Paper/Alu and Alu /Alu for capsule, tablet, candy, honey shape pills, disposable syringes and so on in industries of pharmaceutical, foodstuff, health product , medical instruments and etc.
Product details
The machine is new innovating designed by our machine which is widely for packaging of medicine, which of function are reached to the advanced level of China. It is used for tablet, capsule, pill, honey pill, candy, liquid, paste, disposable syringe in regular and irregular shaped Alu/PVC, Alu/Alu or Paper /Alu in the field of pharmaceutical, health product, foodstuff, cosmetic , medical instrument and etc.
Product parameters:
|
Punches Frequency |
10/40times/min |
|
|
Production capacity |
2400-9600pcs/hour |
|
|
Stroke travel range |
40-140 mm |
|
|
Max. Forming area |
250-120mm |
|
|
Max. Forming depth |
14mm |
|
|
Main motor |
2.2KW |
|
|
Total power supply |
380V 50HZ（220V 60HZ）8.5KW |
|
|
Air compressed required |
≥0.4m3/min |
|
|
Packaging material |
PVC hard film |
0.15-0.5×250 mm |
|
PTP Aluminum film |
0.02-0.035×250mm |
|
|
Dialysis paper |
50-100g×250mm |
|
|
Overall dimension |
3450x700x1710mm |
|
|
Weight |
1400Kg |
|
Product description
