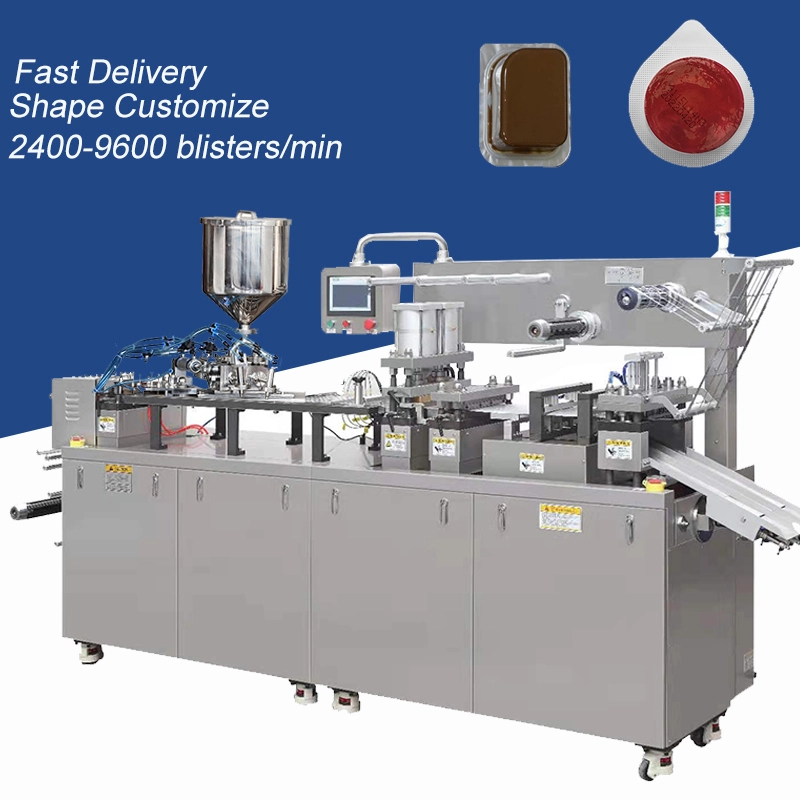

Fully Automatic Small Butter Honey Fruit Jam Syrup Tomato Ketchup Liquid Blister Packing Machine DPP 260
This machine is suitable for liquid materials in food, medicine, daily chemical and agricultural industries, such soy sauce, chili sauce, peanut butter, fruit juice, jam, cream, butter, seasoning sauce, ketchup, honey, soup base，edible oil, medicine liquid, ginseng liquid, sham poo, shower gel, lotion, essence, mouthwash, disinfection fluid,water-free hand wash, etc.
Product details
Automatic Liquid capsule Blister Packing Machine
It is specially designed for medium size productions that require a high flexibility.
1) Flat platen type forming and sealing, constant sealing.
2) Pressure and temperature ensure a perfect blister.
3) Heat forming and cold forming: PVC, PVC+PVDC, PVC/aclar, PP, ALU-ALU.etc.
4) Easy changeover without tools.
5) Up to 200 blisters/min.
Product parameters:
| Model | DPB-260 |
| Punches Frequency | 10/40times/min |
| Production capacity | 35000-230000pcs/hour |
| Max. Forming area and depth | 240x140x26mm(Standard plate size: 240x140x14mm) |
| Stroke travel range | 40-140mm |
| Standard plate size | 80x57mm( designed as per user’s requirement) |
| Air pressure | 0.4-0.6Mpa |
| Air compressed required | ≥0.3m3/min |
| Total power supply | 380V/220V 50Hz 8.5kw |
| Main motor | 1.5KW |
| PVC hard film | 0.15-0.5×250 mm |
| PTP Aluminum film | 0.02-0.035×250 |
| Dialysis paper | 50-100g×250mm |
| Mould cooling | Tap water or recycling water |
Product description
1.Forming, heating sealing, batch marking, impression and cutting are with Rack mandrel for exact and easy fixed position. it is equipped with ruler for easy correction and accuracy orientation.
2.Mechanical hand traction: it adopts double rod of pendulum device which can increase the stroke travel range (up to 180mm). it widely is suitable for all kinds of size packaging of blister.Plate heating, positive forming, upper and lower web plates, heating sealing , automatic feeding, automatic impression and embossing and automatic cutting are easy and reliable operation.
3.It has Positive pressure forming and mechanical punch for uniformity and perfect blister forming. It is applicable for packaging with larger size or special shaped of honey pill, big honey pills and etc. it is equipped with special automatic feeder for packaging of ampoule, syringes.It is a machine with wide range of application for packaging. 4.The main drive shaft adopts parallel axis bevel gear reducer, forming, heating sealing, impression and etc. which of mould are adopting pill for tightly and accuracy position-setting, easier to change an save packing material.
5.The body of machine can be produced under the split production for easier moving into the working room.
Note:
1.Optional Equipped with Photocell detecting device
2.Optional Equipped with Acylic glass cover
3.Optional Equipped with ink jet coding device
