The Newest Herbal Provided 000#~5# Semi Automatic Small Capsule-Filling-Machines

Specification:

Up to 25,000 caps/h

Appplicable for 000#~5# capsule

14 Days Fast Delivery

Suitable for powder, granule, pellet, tablet

Inquiry

Write a Review

Product details

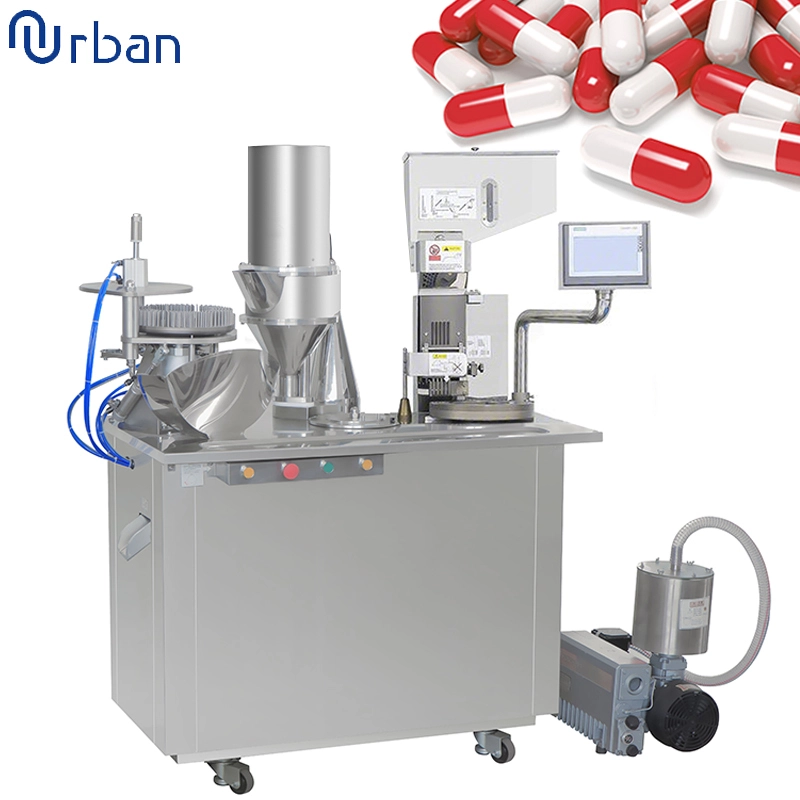

The JTJ-A Capsule-Filling Machine is a new type of medicine filling machine with novel structure and attractive appearance. Under both electrical and pneumatic control and equipped with and automatic electronic counter and computer-controlled speed-adjusting device, the machine can accomplish the positioning, separation and locking etc. of capsules. In place of manual capsule-filling, it can reduce labor intensity and raise productivity. Its filling amounts are accurate and up to sanitary standards for pharmaceutics.

The machine consists of capsule-feeding, U-turning and separating mechanism, material medicine-filling mechanism, locking device, electronic speed varying and adjusting mechanism, electrical and pneumatic control system protection device as well as accessories such as vacuum pump and air pump.

China machine-made capsules or the imported are applicable to this machine, with which the finished product qualification rate can be above 98%.

Capable capsule sizes

Capsule size	#000	#00	#0	#1	#2	#3	#4	#5
Locked Length	26.14mm	23.30mm	21.7mm	19.4mm	18.0mm	15.9mm	14.3mm	11.1mm
Capsule Volume	1.37ml	0.91ml	0.68ml	0.5ml	0.37ml	0.3ml	0.21ml	0.13ml

(The filling amount may vary because of the powder difference)

Model	JTJ-A	JTJ-A PRO
Output	1-25,000 pcs/h	38,000-50,000pcs/hour
Applicable capsules	000#, 00#, 0#, 1#, 2#, 3#, 4#, 5#
Power Supply	2.12KW	2.2kw
Power	380/220V 50Hz(customizable)
Net weight	400kg	405kg
Packing size	1640X720X1700(LWH)	1640X720X1700(LWH)

Product description

PLC Control System

It is the unit that you will use to key in the filling parameters of the semi-automatic filling machine

Filling Auger

This part controls the filling speed of the machine as it fills the pellets and the powders.

Loading System

It is an automatic system that loads the filling material and empty capsules to the right position before filling commences.

Caps and Body tray

The tray is in two parts which can automatically separate the caps from the body of the capsules.

Faqs

Q: Do you need to adjust the tooling on the automatic semi-capsule filing machine to fill different materials?

A: No. There is no need to change the tooling and it is available with all the material.

Q: How to maintain a semi-automatic capsule filling machine?

1. Lubricate cam regularly to keep it in good condition.
2. Disassemble and clean the filing station to clear the excess material to prevent blockage and rust, after the production is finished.
3. Add lubricating oil to the vacuum pump regularly and clean up the dust.
4. Fill enouah water over half of the barrel body in water tank reqularly.

Q: How can I know your machine is designed for my product?

A: If you don't mind, you can send us samples and we will test on machines. During that time, we will take videos and clearer pictures for you. We can also show you on-line by video chatting.
